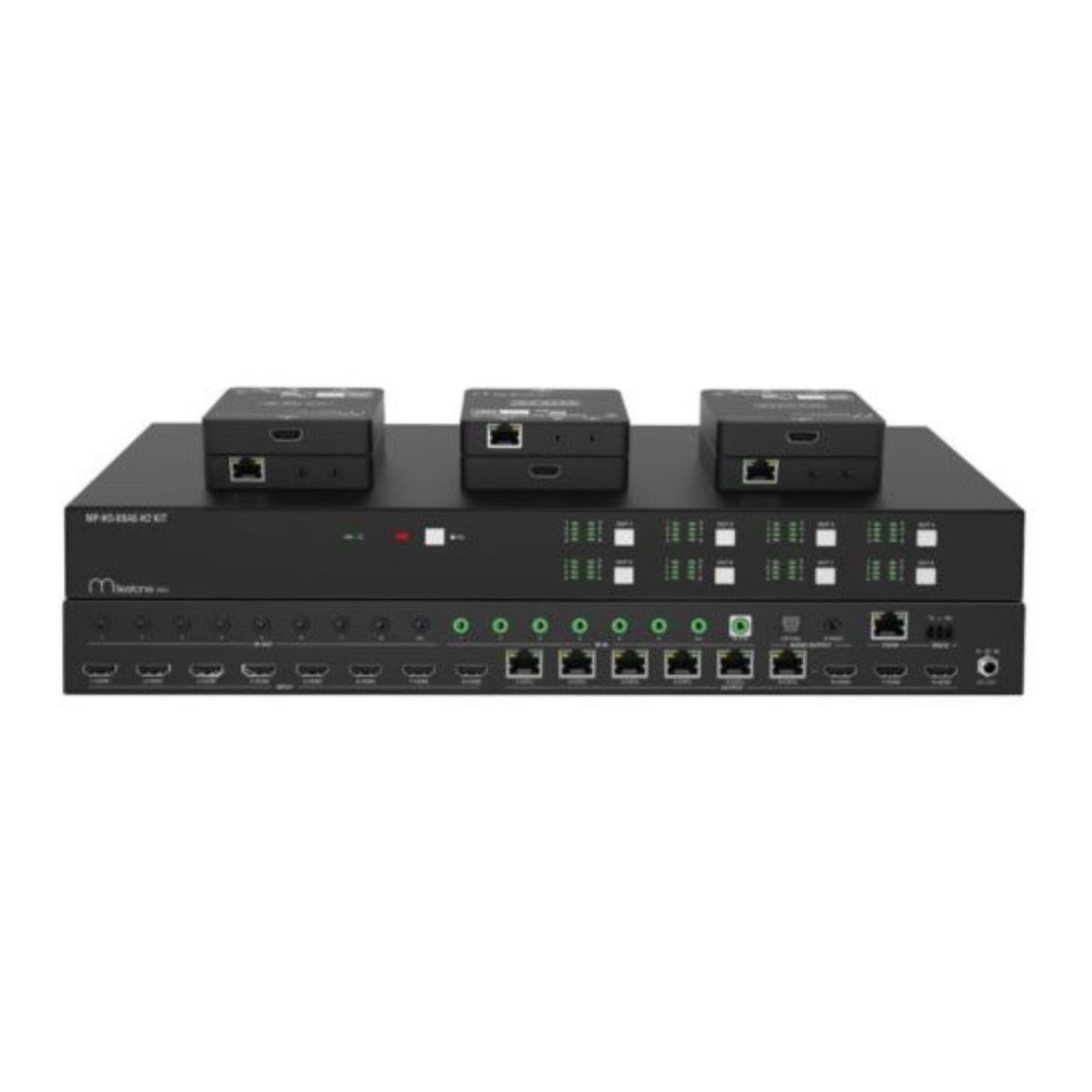

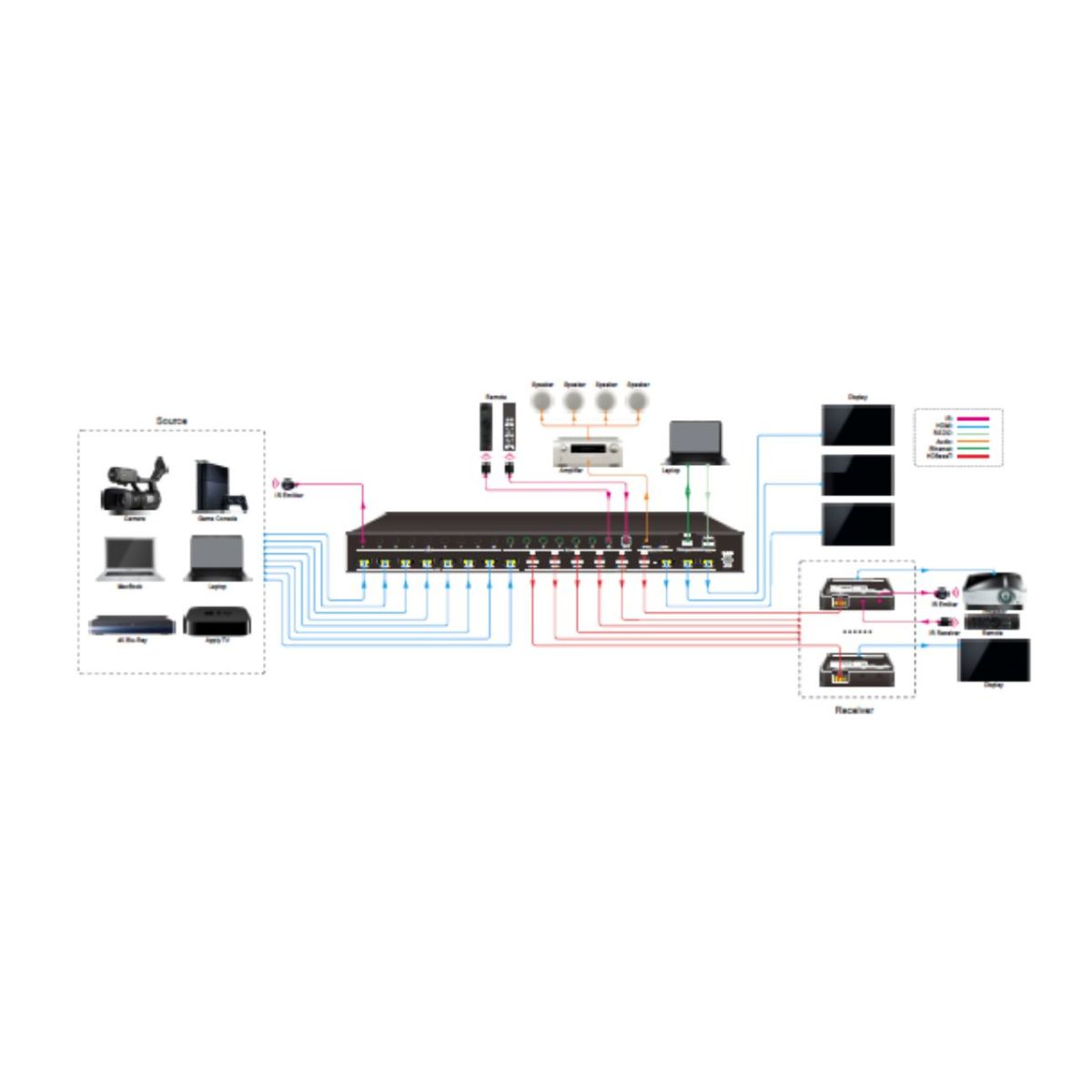

MP-HD-88AE-H2 KIT

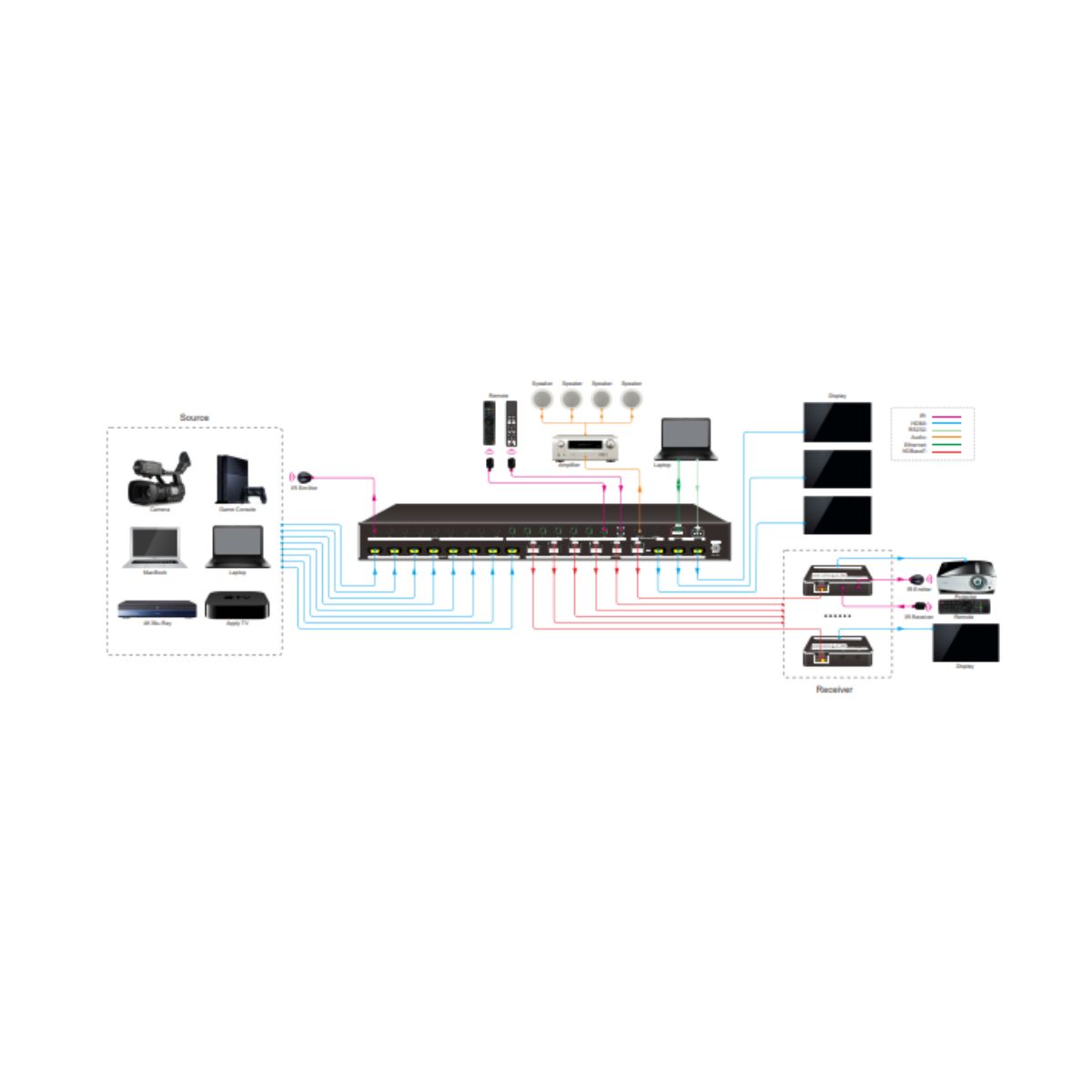

The MP-HD-88AE-H2 KIT is a professional 8x8 HDMI V2.0 Matrix Switcher withaudiobreakout. It includes 8 HDMI inputs, 2 HDMI outputs and 6 CATx extensionoutputswitha HDMI loop out. HDMI signal is extended up to 70m over single CATx cable. All theHDMI outputs support down-scaling function. It also features SPDIF andanalogaudiooutputs for audio breakout.
Specification
| Video | |
| Video Input | (8) HDMI |
| Input Connector | (8) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR |
| Video Output | (6) CATx, (3) HDMI |
| Output Connector | (6) RJ45, (3) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10 |
| CATx Output distance | Up to 70m |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®Plus, DTS:X™, and DTS-HD® Master Audio™pass-through |
| Audio Output | |
| Output | (1) Digital SPDIF audio, (1) Analog stereo audio |
| Output Connector | (1) Toslink connector, (1) 3.5mm Jack |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Analog Stereo Audio Format | Supports PCM |
| Frequency Response | 20Hz – 20KHz,±3dB |
| Max Output Level | ±0.05dBFS |
Features
- 8x8 HDMI V2.0 Matrix Switcher.
- Supports 4K@60 4:4:4, HDR, HDCP2.2.
- 4K/ 1080p HDMI signal extension up to 70m.
- Audio out can be de-embedded from any outputs
- HDMI outputs support 4K to 1080p down-scaling.
- Controllable by front panel, IR, RS232 and TCP/IP.
- CATx outputs support 12V PoC power for receivers.
- Supports bi-directional IR pass-through.
