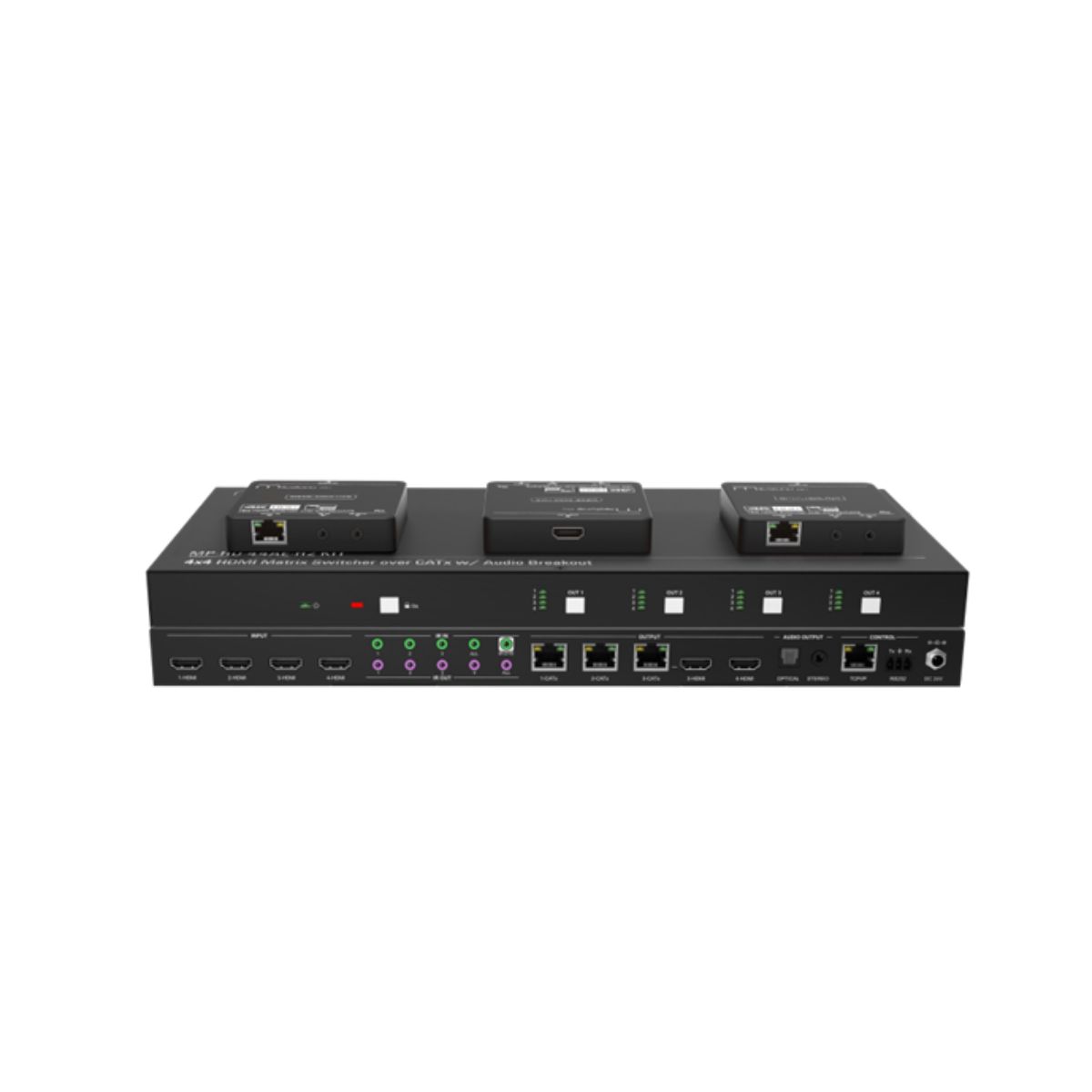

MP-HD-44AE-H2 KIT
The MP-HD-44AE-H2 KIT is a professional 4x4 HDMI V2.0 Matrix Switcher with audio It includes 4 HDMI inputs, 1 HDMI output and 3 CATx extension outputs with An HDMI loop-out. HDMI signal is extended up to 70 m over a single CATx cable. All the HDMI outputs support the downscaling function. It also features SPDIF and analog audio outputs for audio breakout.
Specification
| VideoInput | (4)HDMI |
| InputConnector | (4) Type-A female HDMI |
| HDMI Input Resolution | Upto4K@60Hz4:4:4,HDR |
| VideoOutput | (3)CATx,(2)HDMI |
| OutputConnector | (3)RJ45,(2)Type-AfemaleHDMI |
| HDMIOutputResolution | Upto4K@60Hz4:4:4,HDR10 |
| CATxOutputdistance | Upto70m |
| HDCPVersion | Upto2.2 |
AudioOutput
| Output | (1)DigitalSPDIFaudio,(1)Analogstereoaudio |
| OutputConnector | (1)Toslinkconnector,(1)3.5mmJack |
| DigitalSPDIFAudioFormat | SupportsPCM, DolbyDigital, DTS, DTS-HD |
| AnalogStereoAudioFormat | SupportsPCM |
| FrequencyResponse | 20Hz–20KHz,±3dB |
Features
- 4x4HDMIV2.0Matrix Switcher.
- Supports 4K@60 4:4:4, HDR, HDCP2.2.
- 4K/1080pHDMI signal extension up to 70m.
- Audioout can be de-embedded from any outputs.
- HDMI outputs support 4K to 1080p downscaling.
- Controllable by front panel, IR, RS232, and TCP/IP.
- CATx outputs support 12V PoC power for receivers.
- Supports bi-directional IR pass-through.
