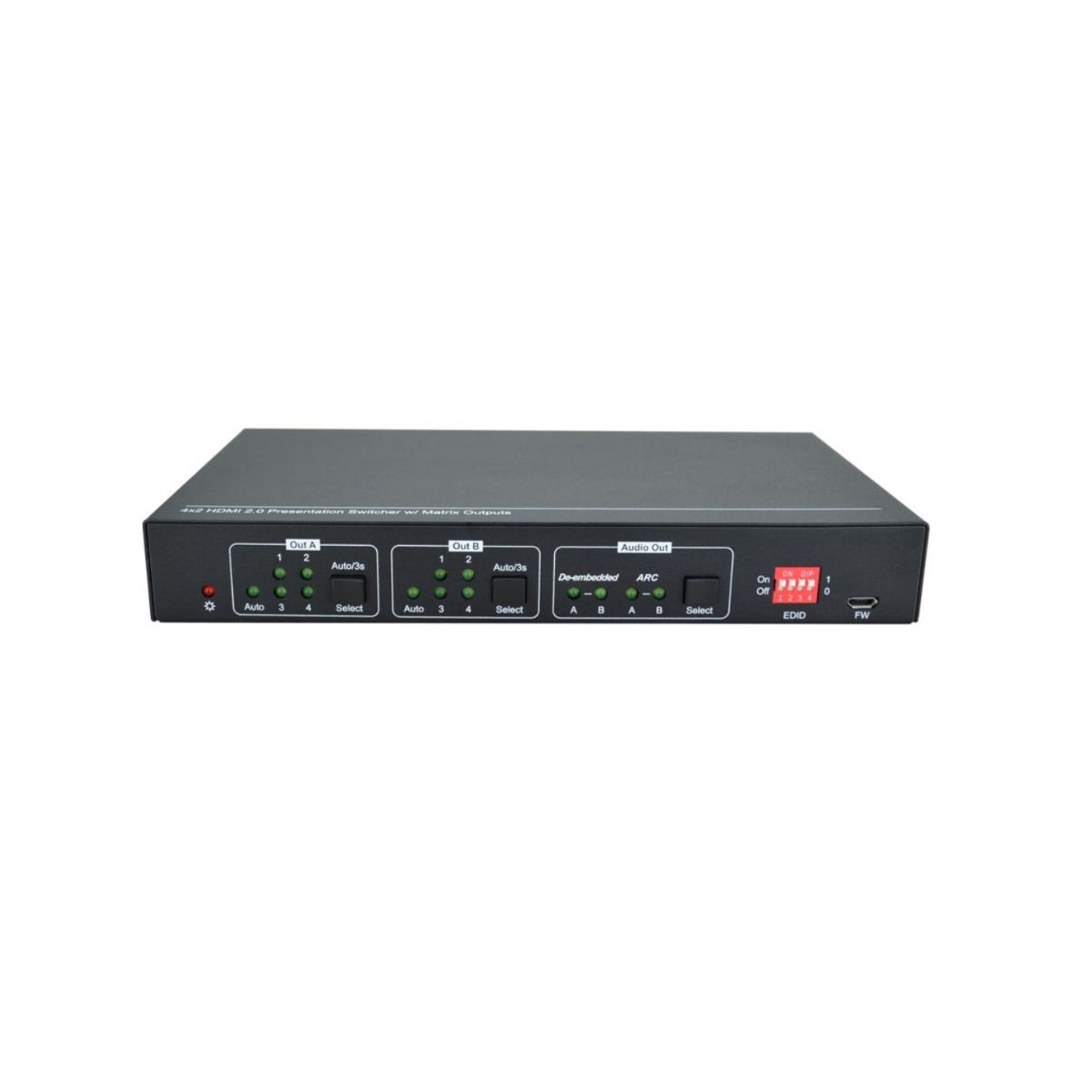

MP-HD-42ARC

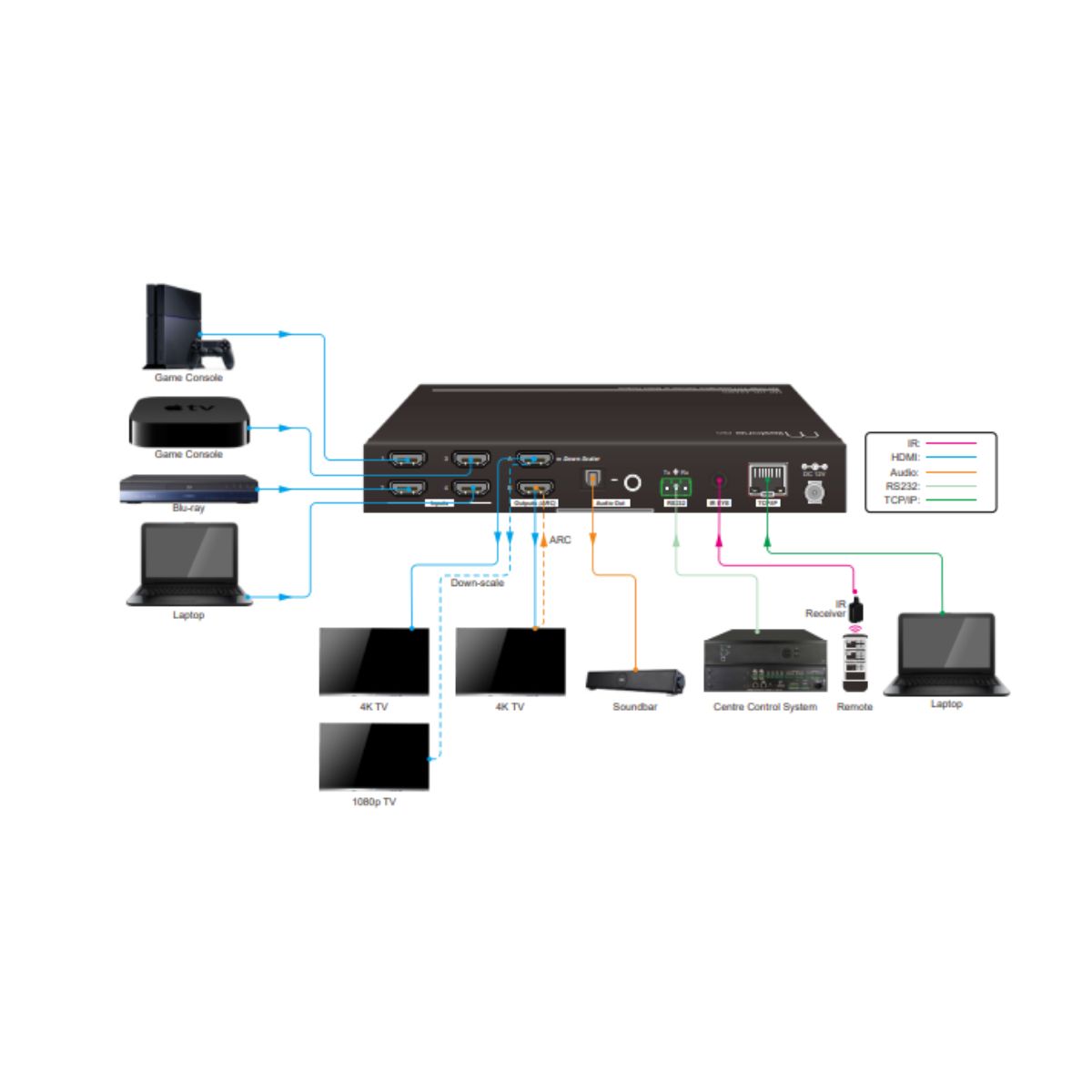

Thank you for choosing the MP-HD-42ARC 4x2 HDMI 2.0 presentation switcher with matrix outputs. The switcher consists of four HDMI inputs, two HDMI matrix outputs and full HDMI 2.0 support. The product offers SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC along with 4K to 1080p down-scaling functionality. The MP-HD-42ARC features a wide range of control flexibility via Web, RS232, IR and smart EDID management.
- 4x2 HDMI presentation switcher with matrix outputs.
- HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2.
- 4K to 1080p downscaling.
- SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC.
- RS232, IR, and TCP/IP control.
- Smart EDID management.
Video Input
| Video Input | (4) HDMI |
| Video Input Connector | (4) Type-A female HDMI |
| Video Input Video Resolution | Up to 4K@60Hz 4:4:4 8bit |
| HDMI Audio Format | Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 - 8Ch PCM 32- 192KHz 16-24 bits; 2 - 8Ch PCM 32-192kHz 16-24 bits |
| HDMI Input Cable | 4K@60Hz 4:4:4 ≤ 3meters, other ≤ 5meters |
Video Output
| Video Output | (2) HDMI |
| Video Output Connector | (2) Type-A Female HDMI |
| Video output Video Resolution | OUT A: Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports color space 4:2:2/4:2:0 to 4:4:4, 4K to 1080p down-scaling |
| HDMI Output Cable | ≤ 5 meters |
| HDMI Version | Up to 2.0 |
