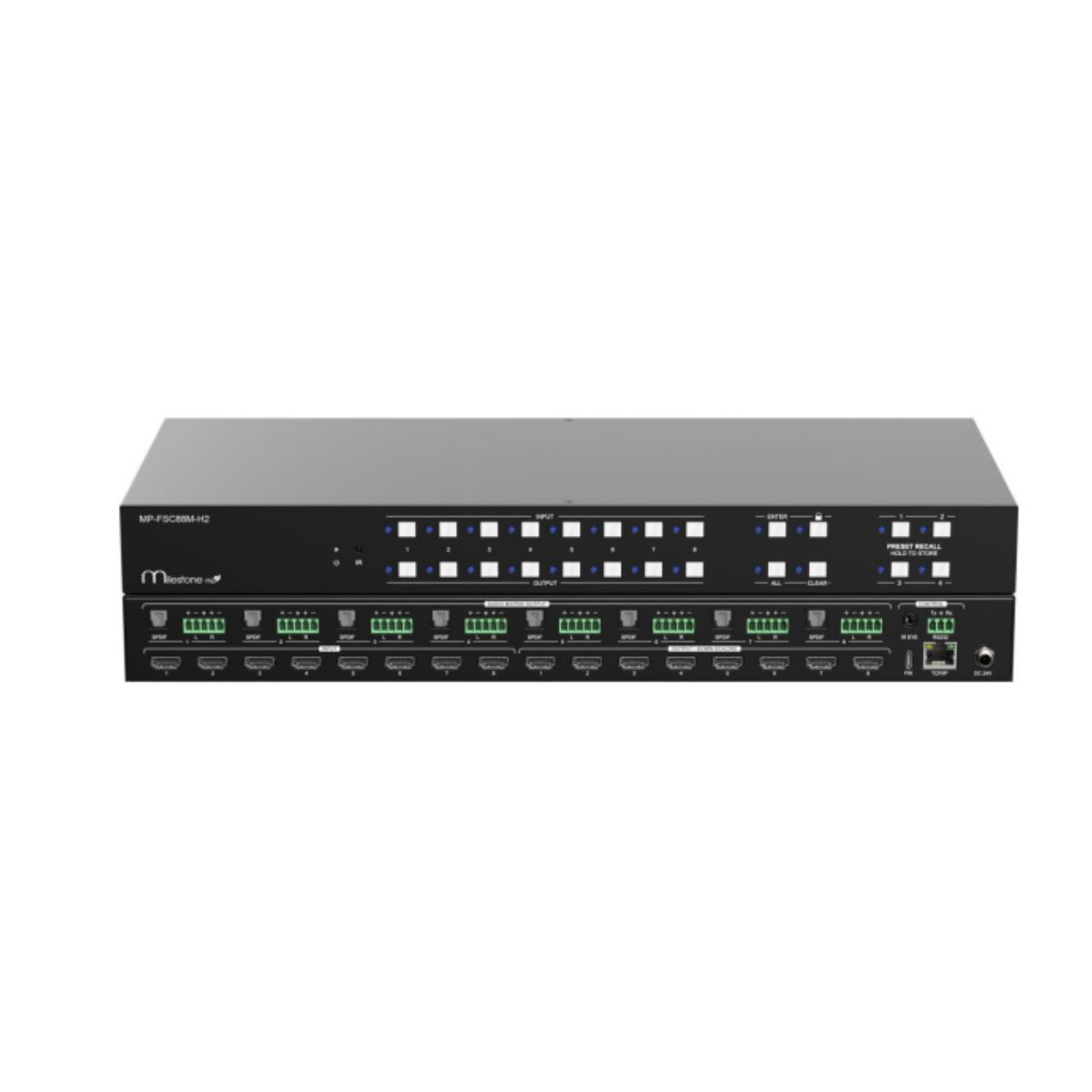

MP-FSC88M-H2

The MP-FSC88M-H2 is a professional 8×8 18Gbps Fast Matrix Switcher. It includes 8 HDMI inputs, 8 HDMI outputs, and each output has a down-scaling function, which is designed for switching two HDMI 2.0 and HDCP 2.2-compliant signals. It also features 8 SPDIF and 8 analog audio outputs for the audio matrix.

Contact to Seller

  • 8x8 fast matrix switching up to 2-4 seconds.

  • Supports manual/auto switching.

  • Video up to 18Gbps 4K60 4:4:4.

  • Supports 4K30 Dolby Vision.

  • Supports audio de-embedding for all outputs

  • All audio outputs volume adjustable

  • Supports 4K to1080p down-scaling for each output.

  • Supports CEC control for source & link

  • Built-in EDID, EDID learning, and custom EDID

Download Product catalog
Connector 8x HDMI Type A
Version HDMI 2.0
Resolution Up to 4K60Hz 4:4:4
Audio LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™ pass-through
HDCP HDCP 2.2 and backward compatibility
Connector 8x HDMI Type A
Version HDMI 2.0
Resolution Up to 4K60Hz 4:4:4
Audio LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™ pass-through
HDCP HDCP 2.2 and backward compatibility
Downscaling Output1~Output8
