MP-DA24UHD

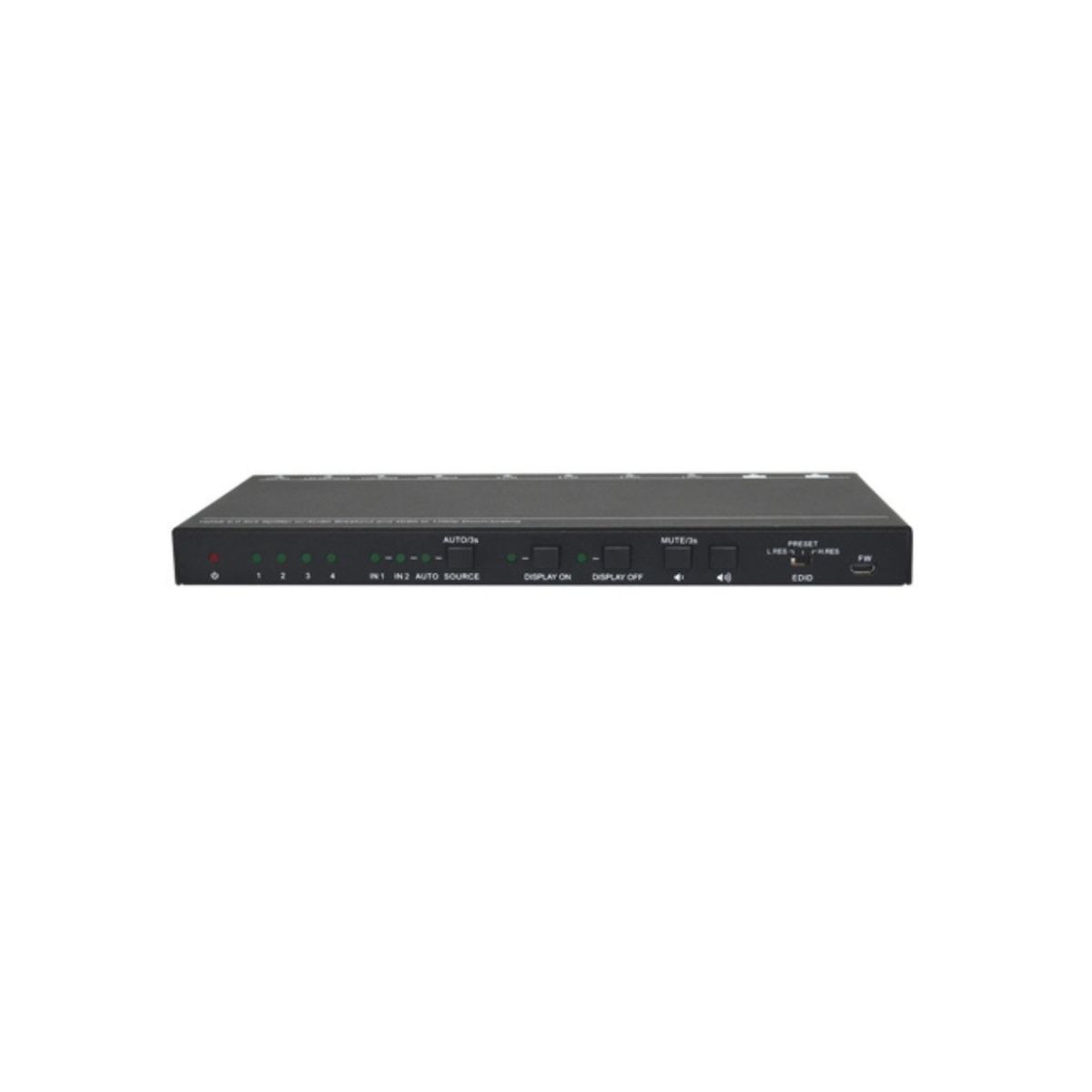

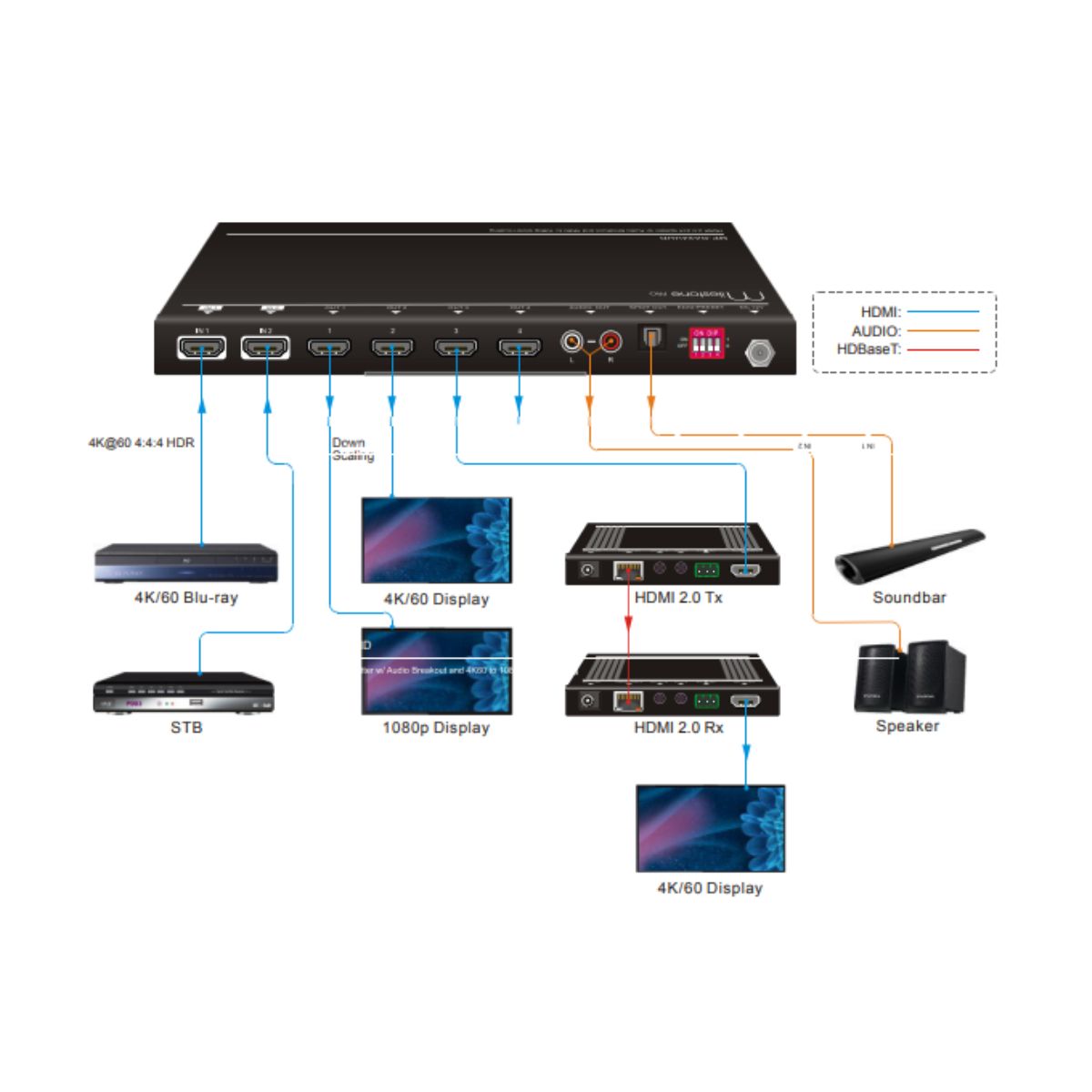

The HDMI 2.0 2x4 Splitter distributes either of two HDMI input signals to four HDMI outputs. It supports video resolutions up to 4K@60Hz 4:4:4, 1080p 3D, and multiple multichannel audio formats. In addition to passing EDID information from the connected display, the splitter provides multiple built-in EDID settings, selectable via a 4-pin DIP switch on the rear panel. The splitter can also de-embed digital HDMI audio to stereo analog L/R and Toslink S/PDIF audio outputs, providing flexible audio integration with existing audio systems.
- Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4
- HDMI inputs support HDCP 2.2, and the outputs support HDCP1.4.
- Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications.
- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080P output for compatibility with a 1080p display
- 18Gbps high bandwidth.
- Features RCA (L/R) jack and Toslink connector for audio de-embedding.
- Advanced EDID management: multiple presets and user-defined allowed.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
- Supports CEC control to turn on/off displays and adjust their volume
- Provides LEDs to indicate the current operating status and to assist troubleshooting and installation.
- Firmware upgrade via the Micro-USB port.
| Video Input | |
| Input | (2) HDMI |
| Input Connector | (2) Female Type-A HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| CEC | Supported |
| Video Output | |
| Output | (4) HDMI |
| Output Connector | (4) Female Type-A HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| CEC | Supported |
| Audio | |
| De-embedded Output |
(1) AUDIO OUT (1) SPDIF OUT |
| Output Connector |
(1) RCA (L/R) jack (1) Toslink connector |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Stereo Analog L/R Audio Format | PCM |
| Toslink Digital Audio Format | PCM, Dolby Digital, DTS, DTS-HD |
| Frequency Response | 20Hz ~ 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | <0.05% (-80 dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | >80dB, 20Hz ~ 20KHz bandwidth |
