MP-8PC
MP-8PC is a professional Power Distribution Unit (PDU) designed for power control and monitoring. It supports 110–250V AC input and up to 10A output per port. The unit offers multiple control methods, TCP/IP-based monitoring, network and IoT protocol support, and built-in protection mechanisms for enhanced device and user safety.
- Switch control, voltage, current, and power consumption monitoring.
- 2x TCP/IP network ports to provide continuous network services.
- Overload protection, wiring error protection, and remote login verification
- Supports multiple network protocols and IoT protocols.
- Controllable via buttons, RS-232, and Web-GUI.

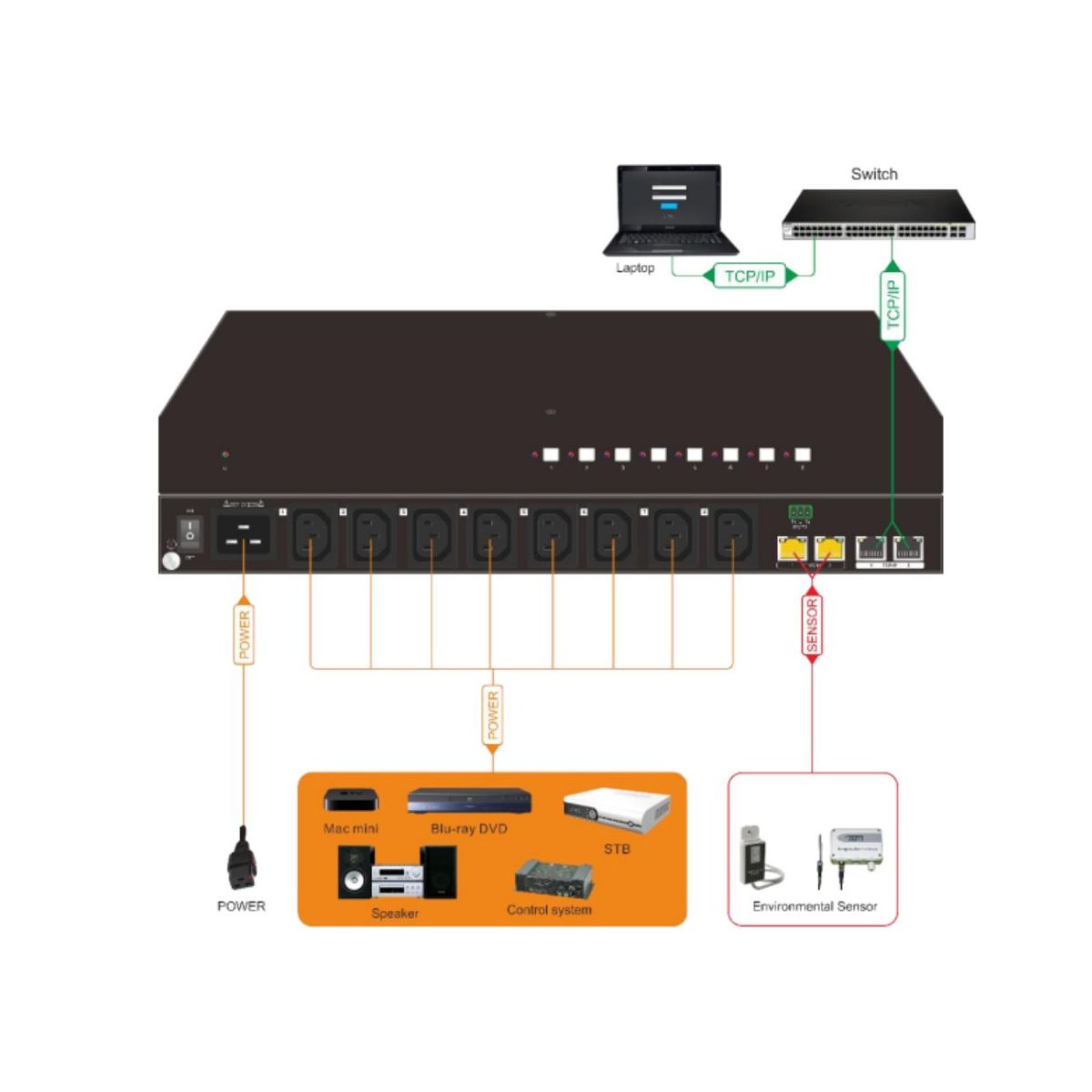

- Supports connecting sensors to monitor the external environment
| Voltage | AC 110-250V |
| Frequency | 50/ 60Hz |
| Current | Max. 16A |
| Connector | 1x IEC C20 |
| Output | |
| Voltage | AC 110-250V |
| Frequency | 50/ 60Hz |
| Current | Max. 10A per port |
| Connector | 8x IEC C13 |
| Control | |
| Mode | Buttons, TCP/IP, RS-232 |
| Connector | 8x white buttons, 2x RJ45, 1x 3-pin phoenixterminal |
| General | |
| Voltage Range | 110-250V |
| Current Range | 0-16A |
| Frequency Range | 45-65Hz |
| Power Factor | 0-1 |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Standby Power Consumption | 1.73W |
