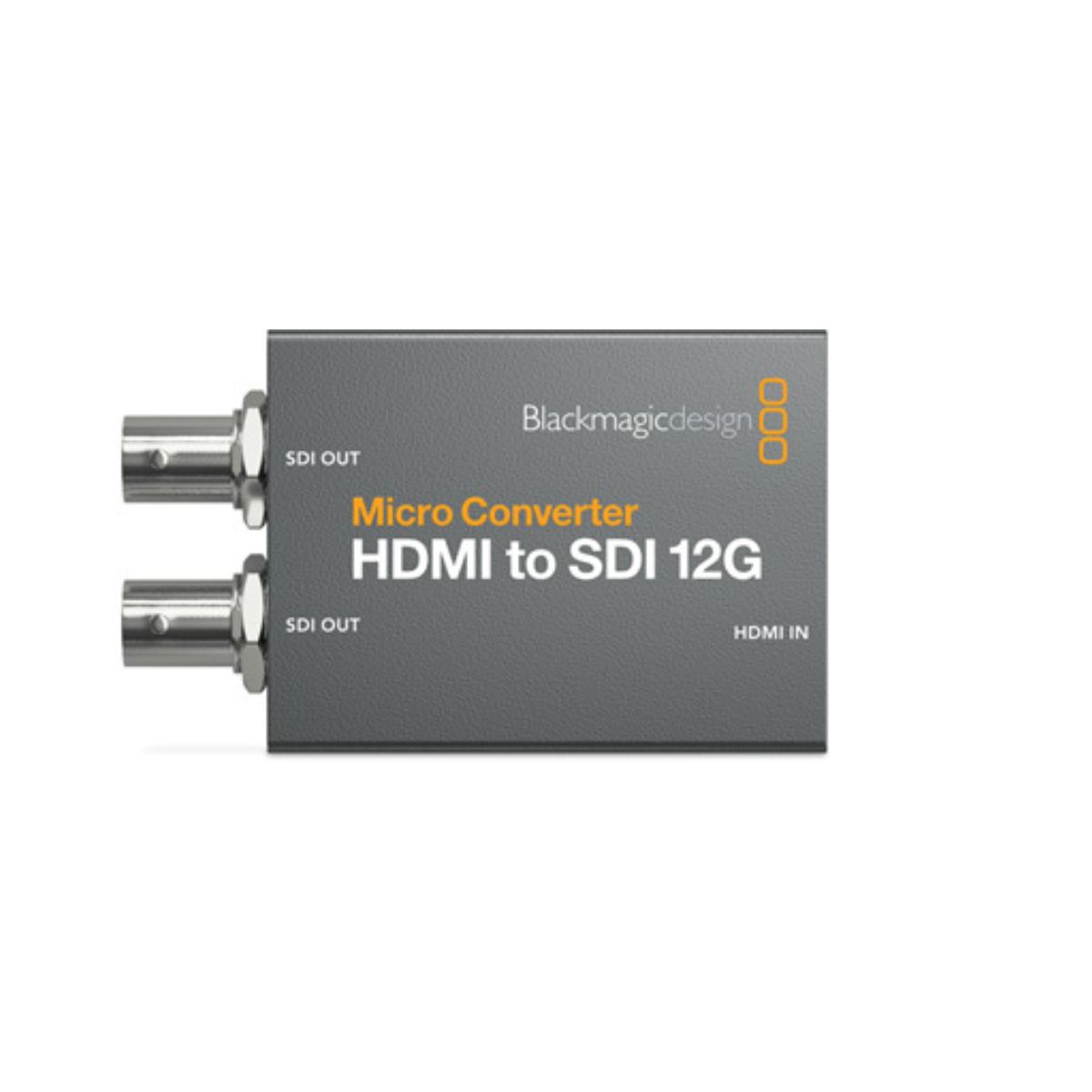

The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast-quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, and SMPTE 2108-1 |
|
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
|
SDI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
|
SDI Color Space |
YUV |
|
SDI Auto Switching |
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. |
|
HDMI Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HDMI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
|
HDMI Color Space |
YUV |

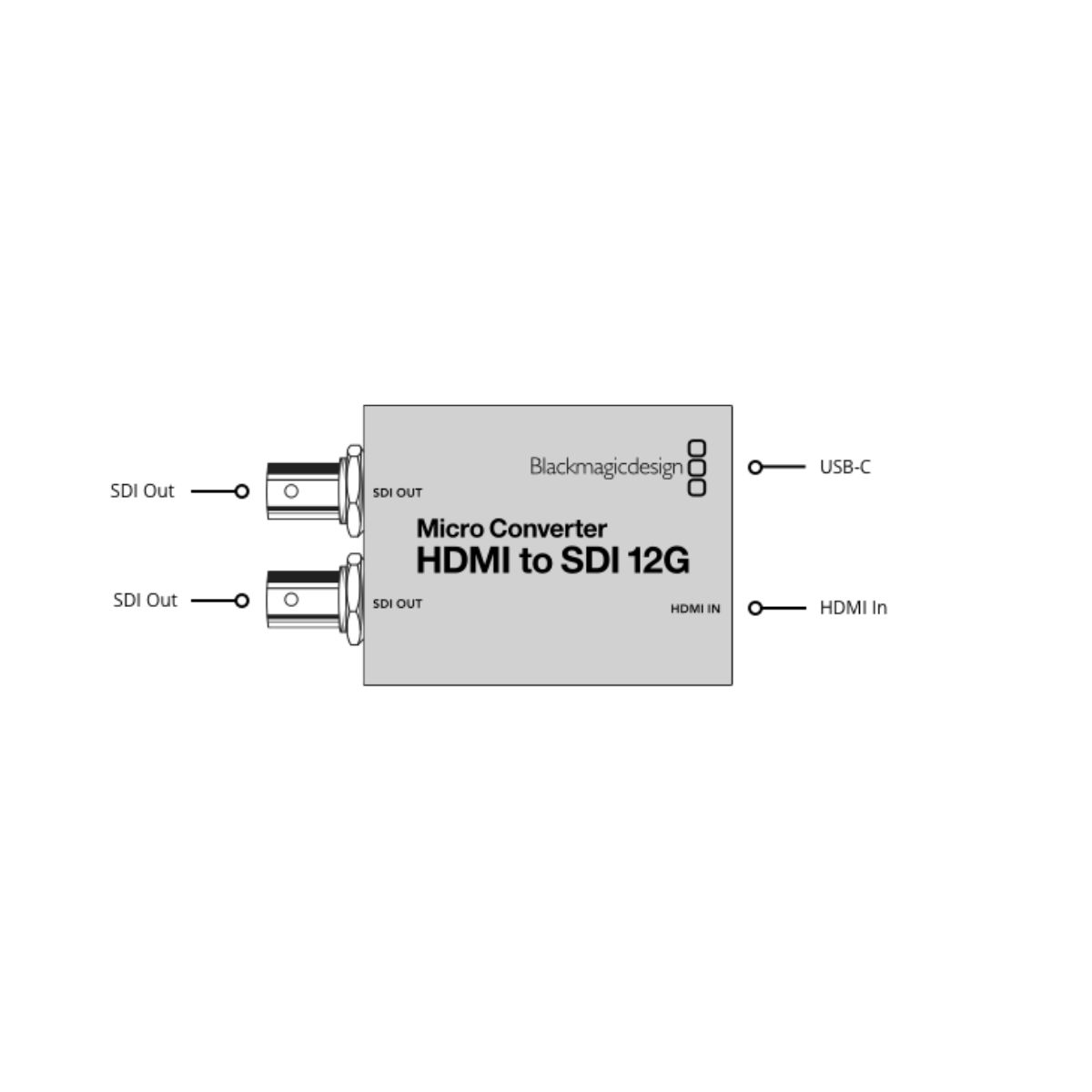

Connections
|
SDI Video Outputs |
2 Automatically matches the HDMI input. |
|
HDMI 2.0 Video Inputs |
1 x Type A. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Multi-Rate Support |
Auto detection of SD, HD, 2K, Ultra HD, and 4K. |
|
Updates, Configurations, and Power |
USB Type‑C. |
