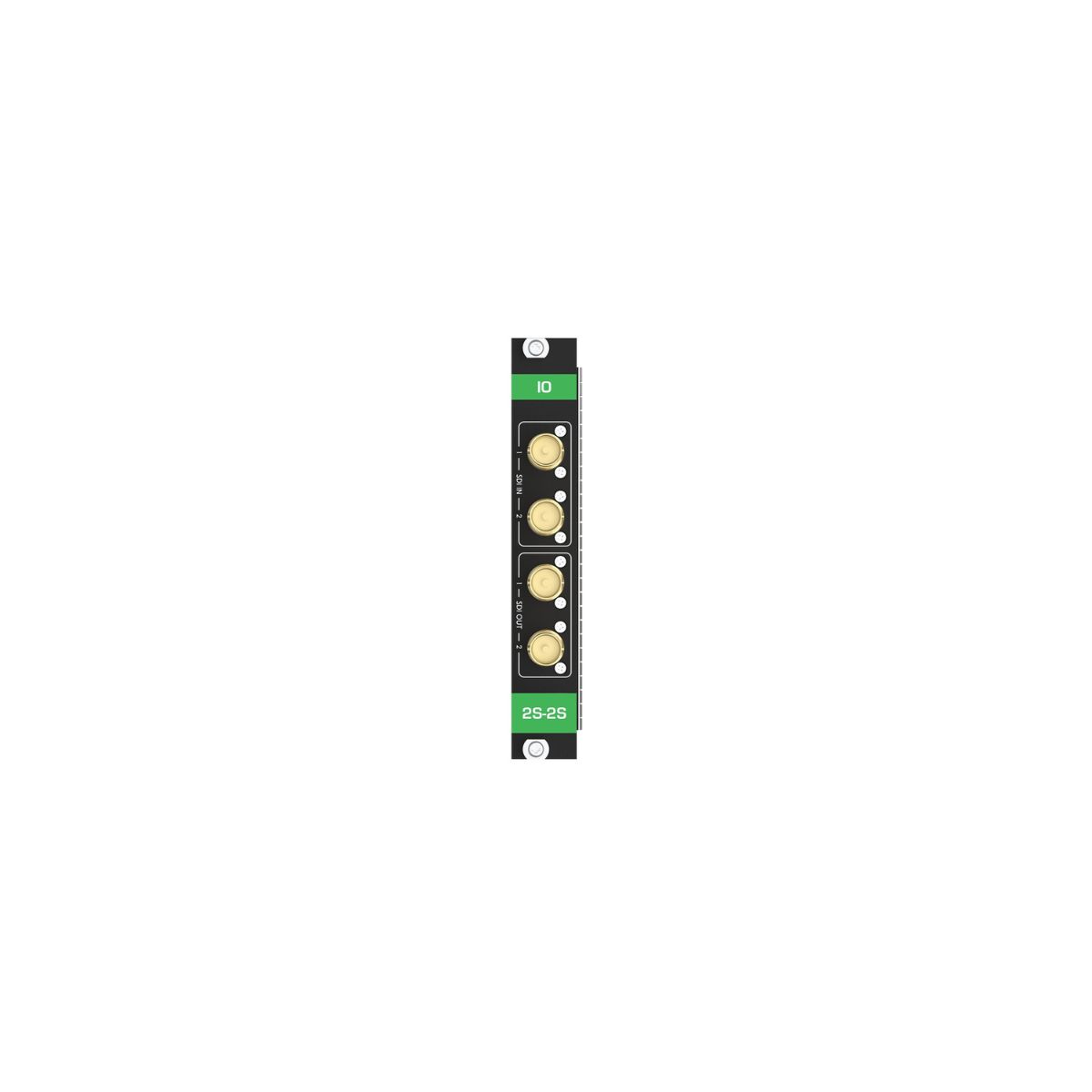

MC3-2S-2S

MC3−2S−2S is a high−performance two−port input and two−port output SDI card which is part of the compatible modular matrices multi−signal cards family. MC3−2S−2S can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its scaling output ports.

Contact to Seller
  • 12Gbps Auto–adapting SDI Data Rate
  • Fast <1sec Outputs Switching
  • Dual Scaling Outputs
  • Up to 4K60 4:2:2 Resolution
Download Product catalog

Inputs
  • 2 12G SDI: On 75Ω BNC female connectors

Outputs
  • 2 12G SDI: On 75Ω BNC female connectors

SDI
  • Data Rate: 270Mbps to 12Gbps
  • Max Output Level: 800mVpp / 75Ω
  • Cable Equalization Reach: 800mVpp / 75Ω

Video
  • Max SDI Resolution: 4K60 4:2:2
  • Scaling Input Resolution: NTSC, PAL, 720p, 1080i, 1080p and 2160p
  • Max Switching Time Between Inputs: 1.5 seconds
  • Output Transition on Switching: Smooth cut–thru
  • Video Latency: 1–2 frames

CABLE EQUALIZATION REACH
  • 12Gbps: Up to 80m (260ft)
  • 6Gbps: Up to 100m (330ft)
  • 3Gbps: Up to 180m (590ft)
  • 1.5Gbps: Up to 200m (660ft)
  • SD: Up to 300m (980ft)
  • Note: When using Kramer cables

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)
