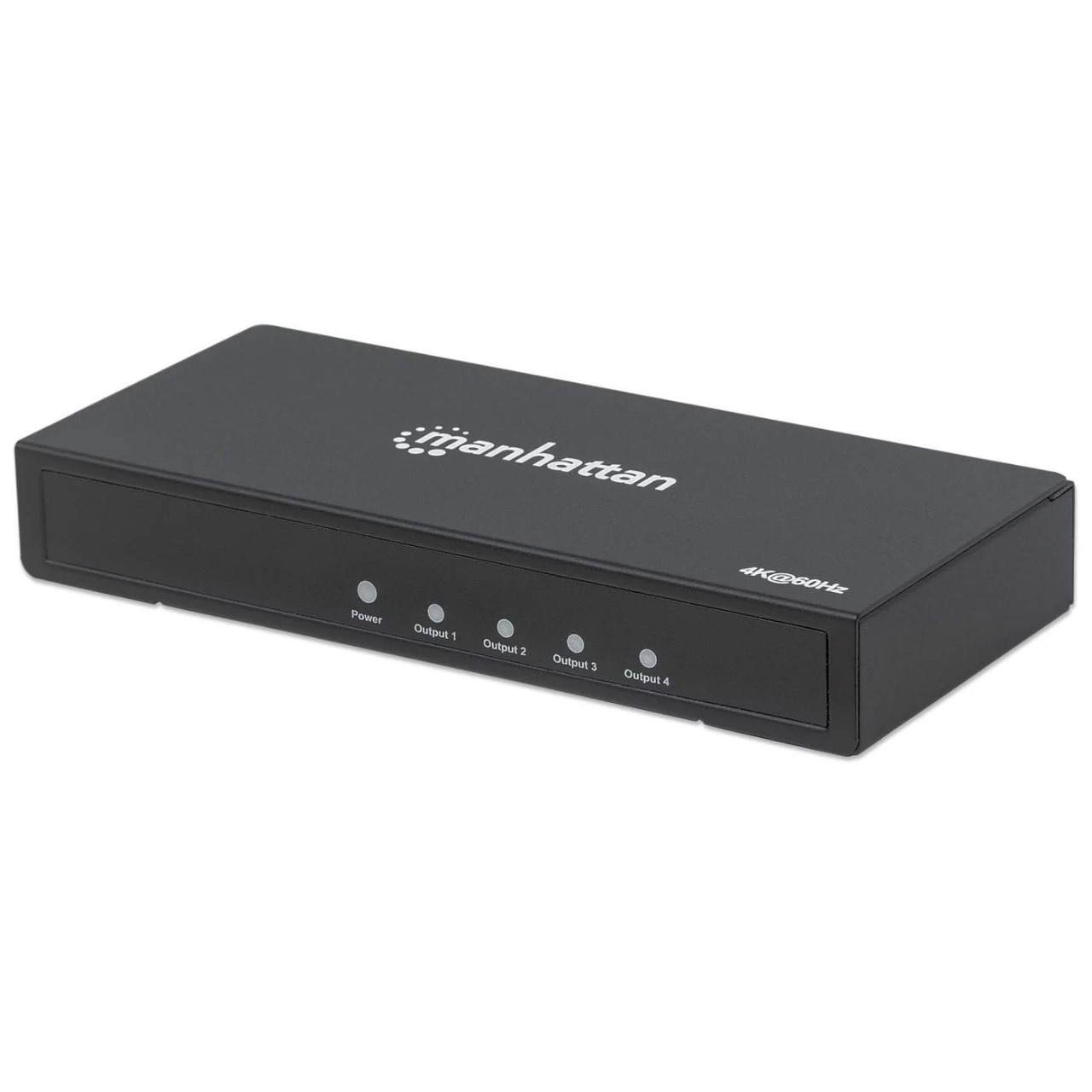

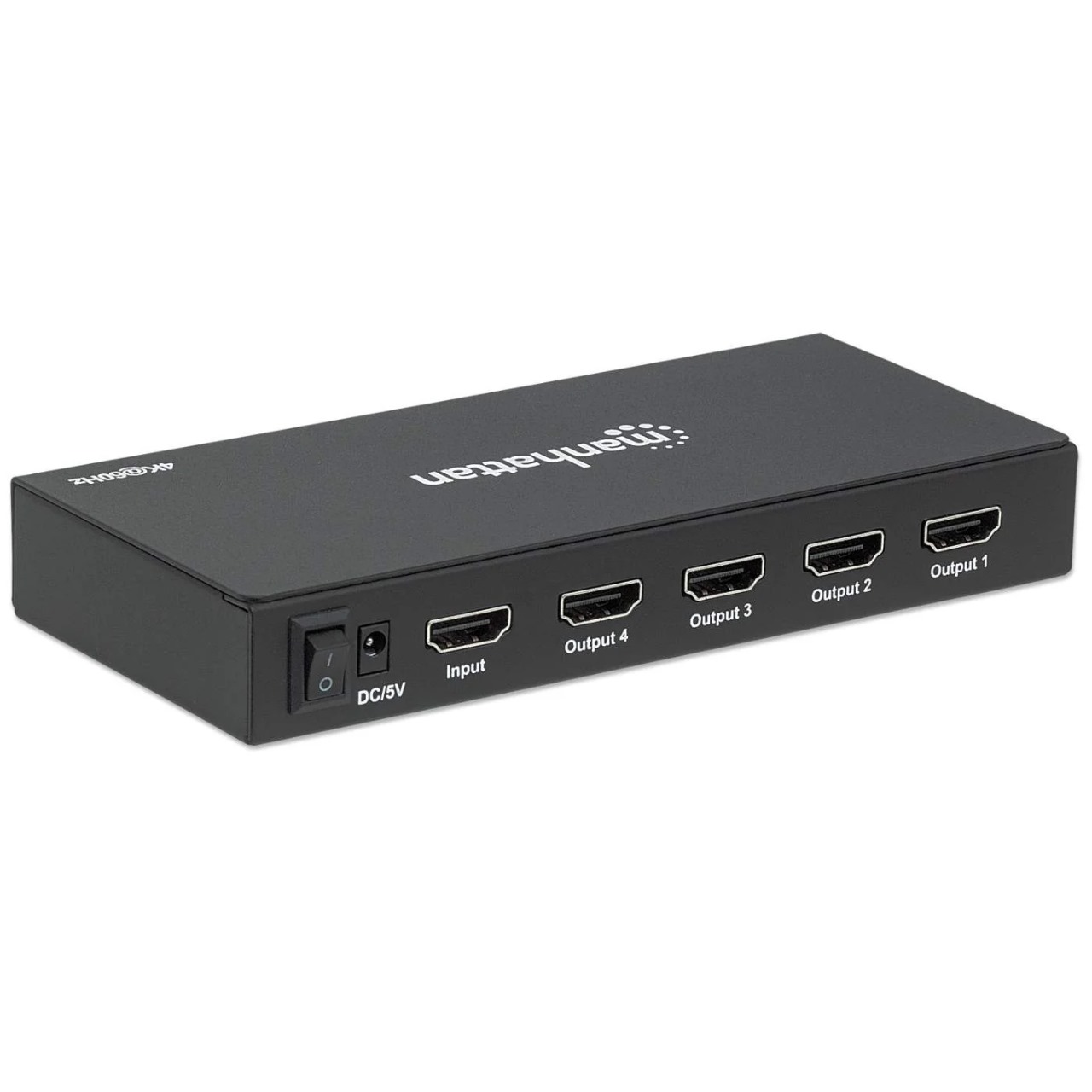

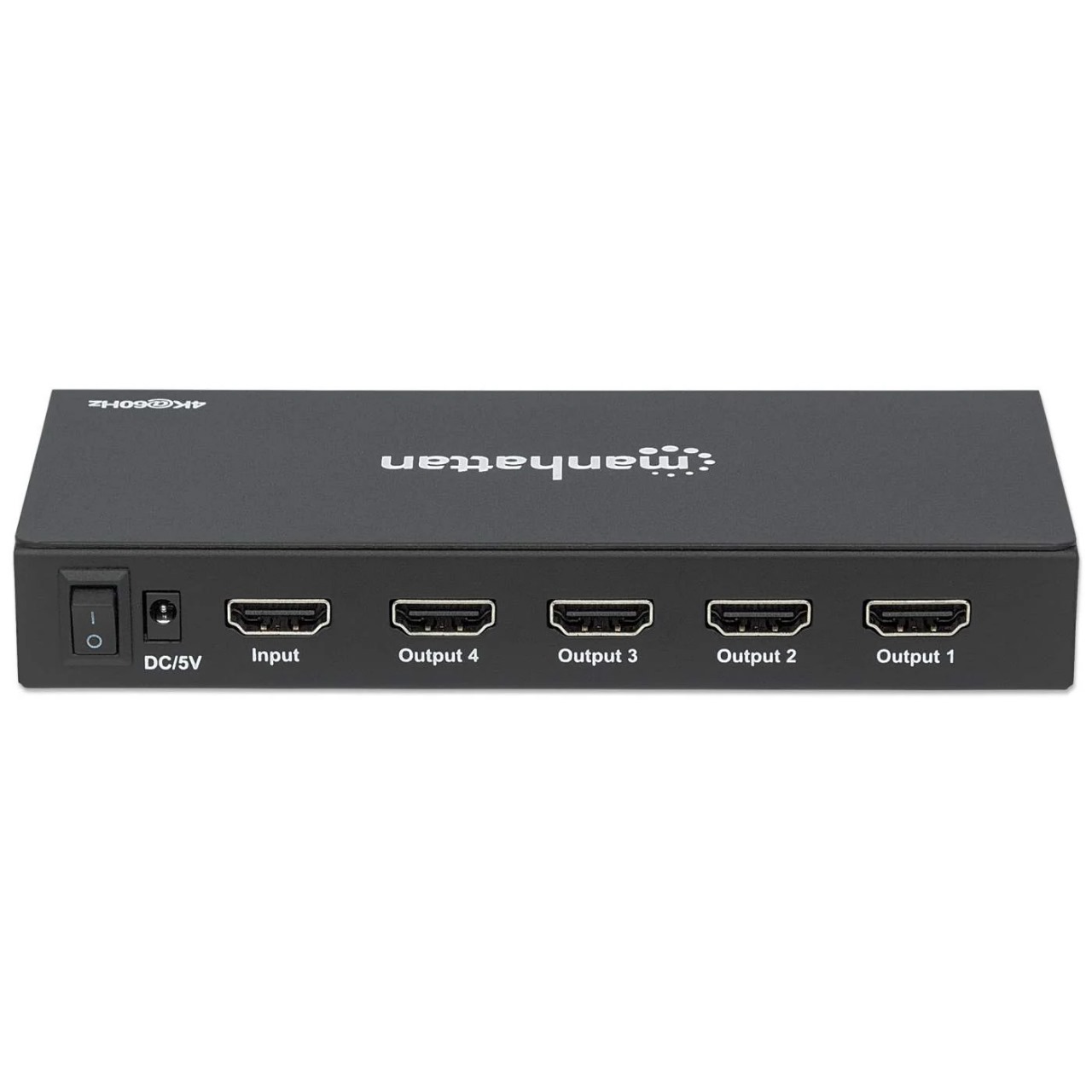

Manhattan 4K 4-Port HDMI Splitter (207805)

Full compliance with HDMI and HDCP 2.2 ensures the Manhattan 4K 4-Port HDMI Splitter provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep Color, HDR, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect HDMI cables (not included) and the power supply to complete this cost-effective 4K solution — no software or hardware configuration or complicated settings required.

Contact to Seller

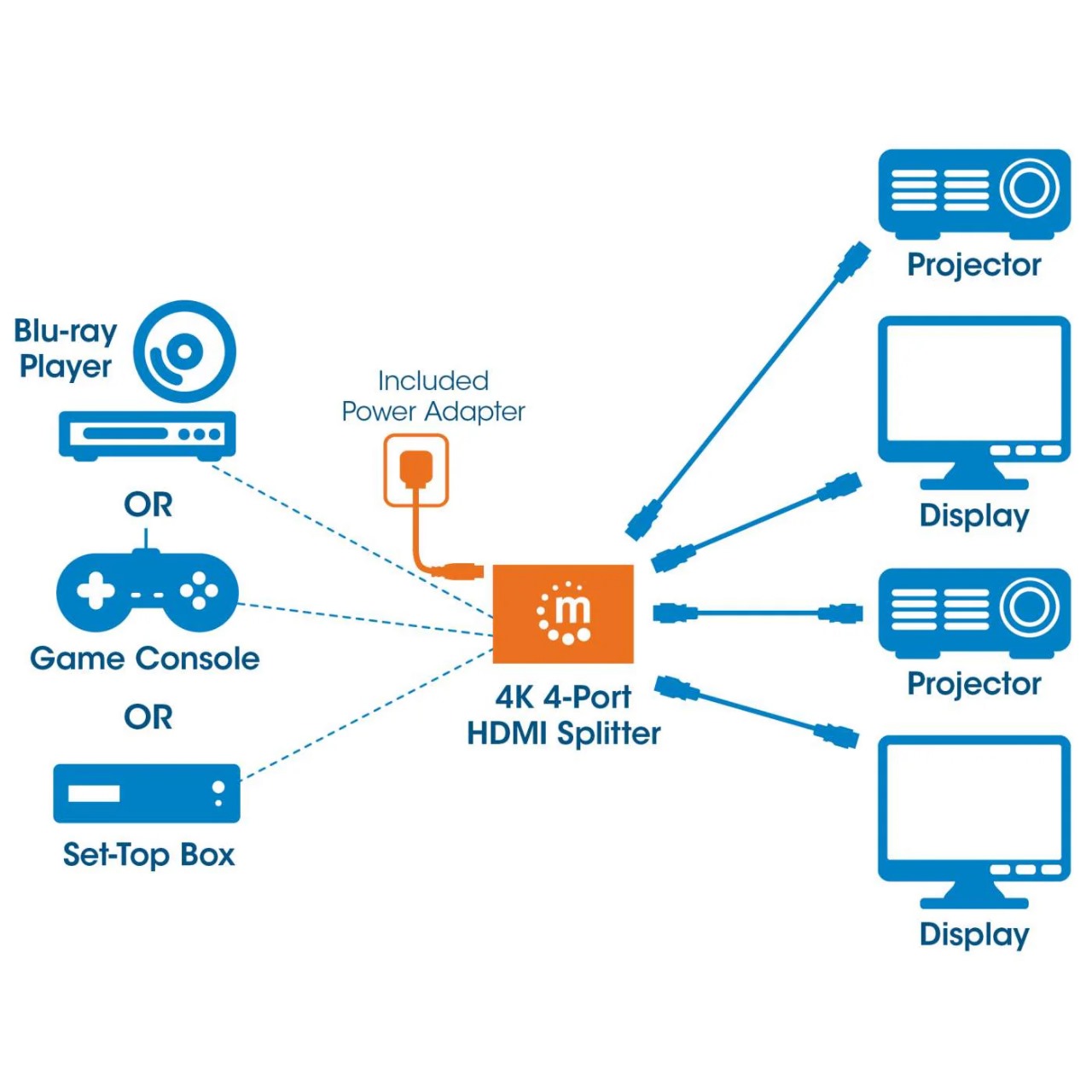

  • Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays
  • 4K@60Hz resolution, full 3D video, Deep Color, and High Dynamic Range (HDR
  • Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
  • Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling, and YCbCr 4:2:0 color formatting
  • Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD, and uncompressed LPCM 8-channel audio
  • HDCP compliant
  • Multiple splitters (three total) may be cascaded up to support 10 4K
Download Product catalog
HDCP 2.2/1.4
CTS 1.4b
CE
FCC
RoHS

General

Source-to-splitter and splitter-to-display range: up to 20 m (66 ft.)
4K@60Hz 4:4:4 — total 10 meters
Max. 5 m from source to splitter
Max. 5 m from splitter to display
