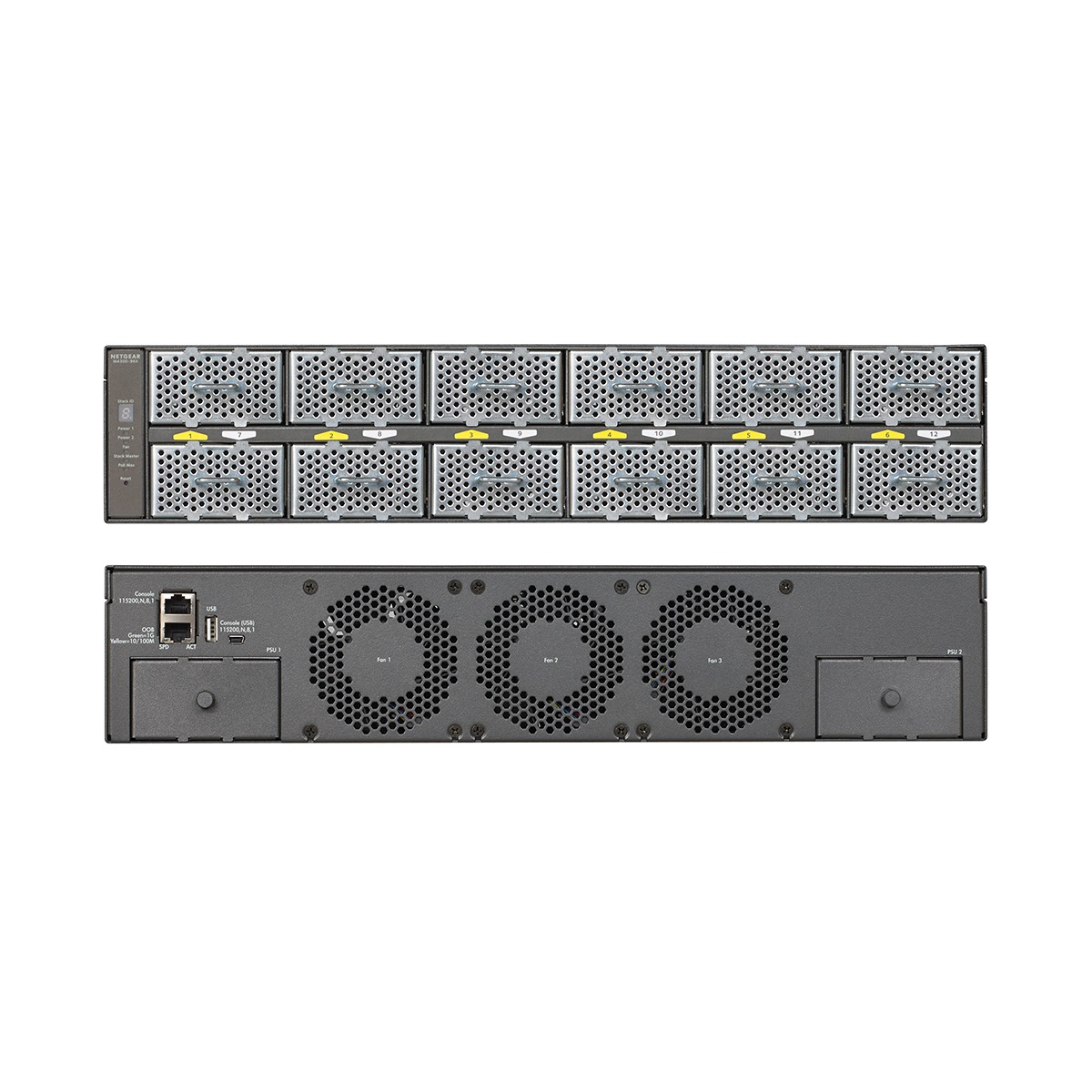

The NETGEAR M4300-96X is a modular managed switch chassis designed for large-scale AV over IP deployments. It supports modular expansion with units of 8 10GBASE-T ports, 8 10GBASE-X fiber SFP+ ports, or 2 QSFP+ ports. The first 6 slots support PoE power for 10GBASE-T cards, enabling up to 48 PoE+ ports per switch. The APS1200W power supply unit is recommended for PoE applications.
-
Modular managed switch chassis designed for large-scale AV over IP deployments.
-
Supports modular expansion with 8 × 10GBASE-T ports per module.
-
Supports 8 × 10GBASE-X fiber SFP+ ports per module.
-
Supports 2 × QSFP+ ports per module.
-
The first 6 slots provide PoE power for 10GBASE-T cards.
-
Supports a maximum of 48 PoE+ ports per switch.
-
APS1200W power supply unit is recommended for PoE applications.
| Ports |
From 8 to 96 10GBASE-T or 10GBASE-X Ethernet: According to the installed port modules, see ACCESSORIES & RELATED PRODUCTS 1 Out-of-Band 1G Ethernet: On an RJ–45 connector for unit management 1 USB: On a mini USB connector for unit management |
| General |
Switching Fabric: 1.920 Tbps Throughput: 2,857 Mpps Latency for 10G RJ-45: < 2.65 μs Latency for 10G SFP+: < 0.89 μs |
| Power |
Source: 600W or 1200W modular power supply (sold separately) Consumption w/no PoE: 566W max Consumption w/PoE: 2,006W max |
| Enclosure |
Size: 19” (W) x 2U (H) Cooling: Fan |
| Accessories | Included: Two regular (short) brackets and screws for two-post rack mount (for front posts) |
| Product Dimensions | 53.50cm x 44.00cm x 8.80cm (21.06" x 17.32" x 3.46" ) W, D, H |
