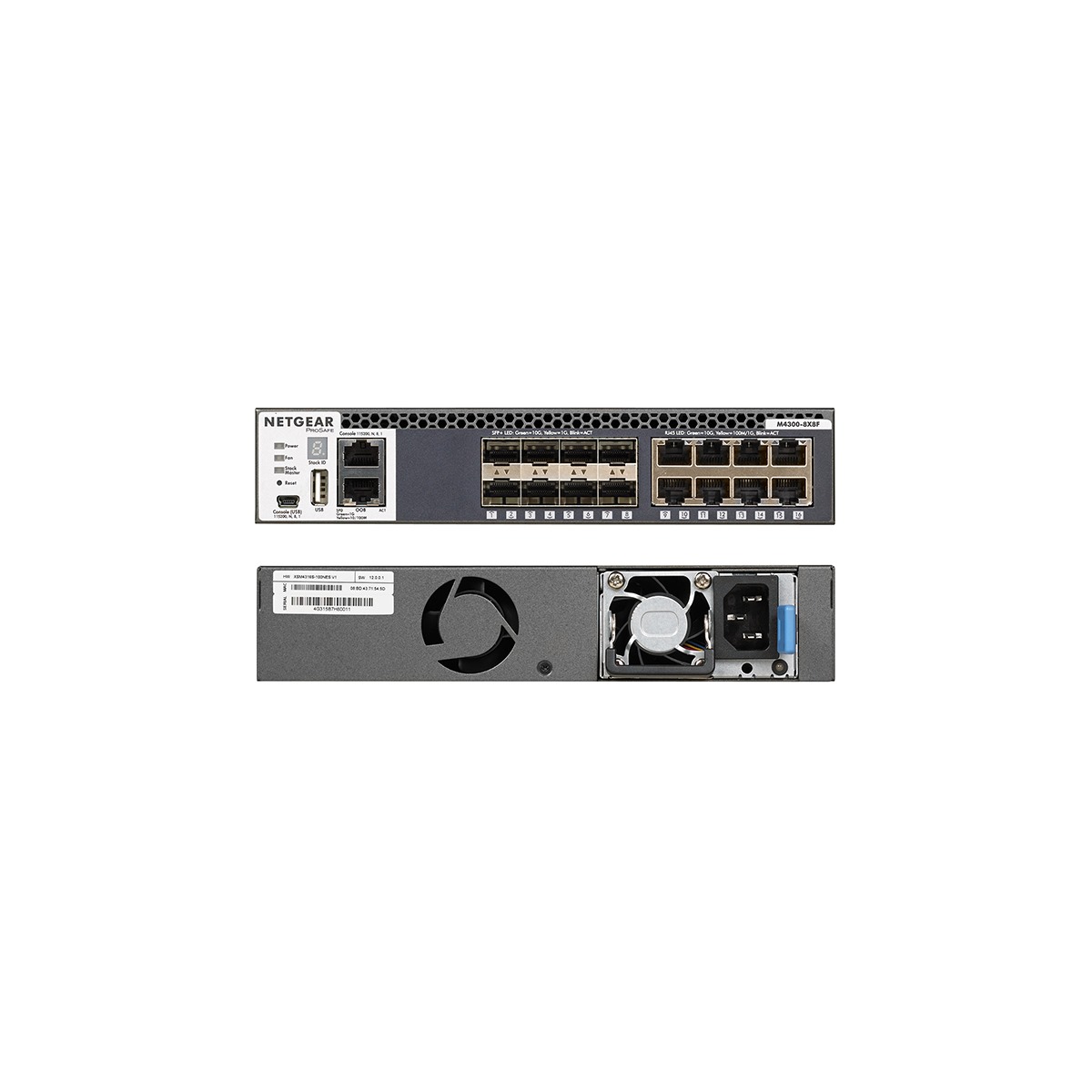

The NETGEAR M4300-8X8F is a 16-port managed switch designed for backbone connectivity in multi-tier AVoIP deployments. It features 8 10GBASE-T copper RJ-45 ports and 8 10GBASE-X fiber SFP+ ports, providing high-speed network connectivity for professional AV over IP applications. The switch includes a 250W power supply unit.
-
16-port managed switch designed for multi-tier AVoIP deployments.
-
Used as a backbone switch for high-speed network connectivity.
-
Features 8 × 10GBASE-T copper RJ-45 ports.
-
Includes 8 × 10GBASE-X fiber SFP+ ports.
-
Equipped with a 250W power supply unit.
| Ports |
8 10GBASE-T Ethernet: On RJ–45 connectors 8 10GBASE-X: On SFP+ connectors 1 Out-of-Band 1G Ethernet: On an RJ–45 connector for unit management 1 USB: On a mini USB connector for unit management |
| General |
Switching Fabric: 320Gbps Throughput: 357 Mpps Latency for 10G RJ-45: < 2.43 μs Latency for 10G SFP+: < 0.89 μs |
| Power |
Source: 250W–PSU included Consumption: 49W max |
| Enclosure | Size: ½ 19” (W) x 1U (H) |
| Accessories | Includes one long bracket, one regular (short) bracket, and screws (for front posts) |
| Product Dimensions | 21.20cm x 34.50cm x 4.40cm (8.35" x 13.58" x 1.73" ) W, D, H |
| Product Weight | 3.3kg (7.3lbs) approx |
| Shipping Dimensions | 57.00cm x 34.90cm x 9.00cm (22.44" x 13.74" x 3.54" ) W, D, H |
