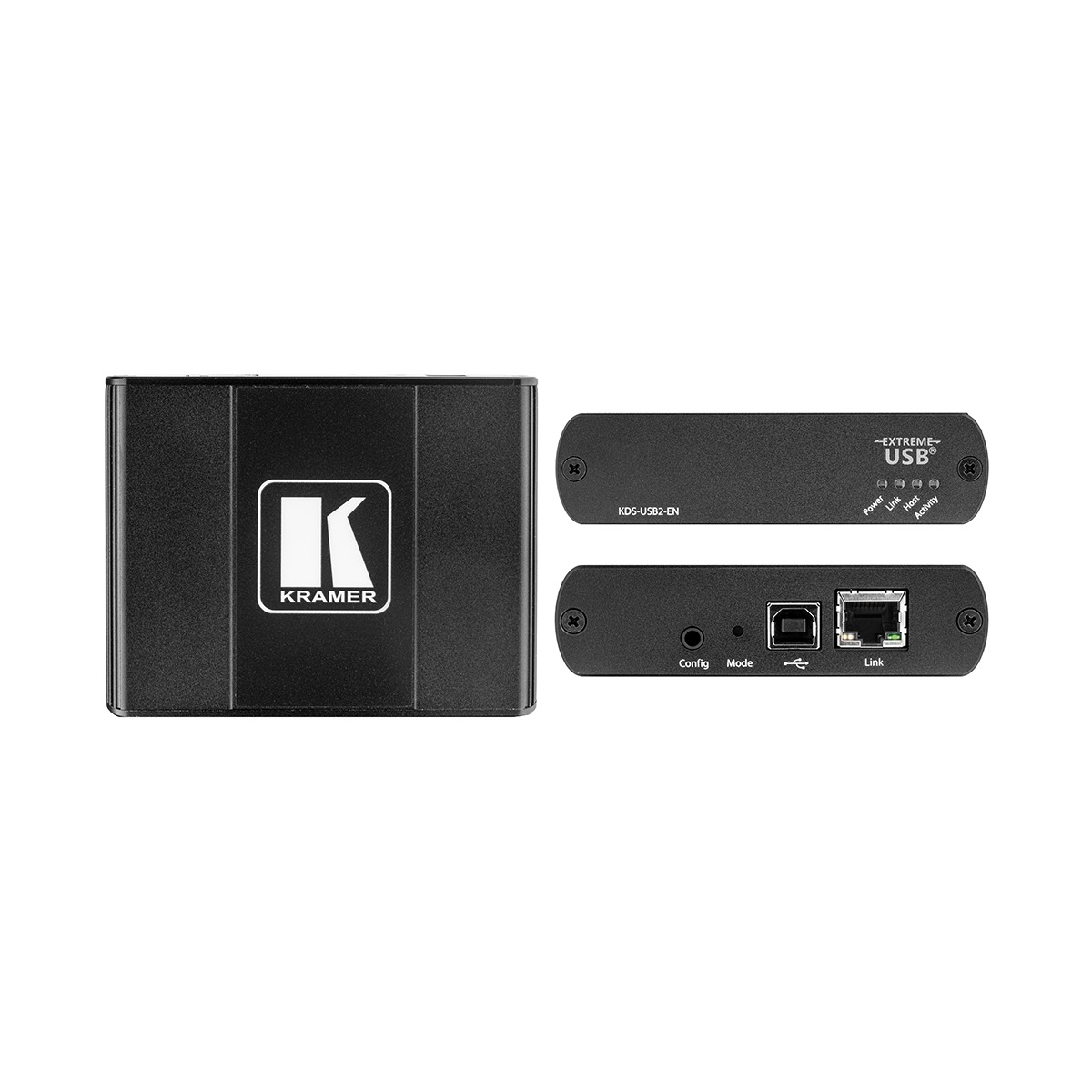

The KDS-USB2 is a USB 2.0 high-speed extension kit that enables communication between a host computer and USB peripherals, including keyboards, mice, cameras, displays, and storage devices. It includes an encoder and decoder for one-to-one USB extension and supports scalable multi-location setups over a LAN. With Kramer’s cloud-based control platform, users can map and manage multiple devices for real-time collaboration and centralized control.
- Extension and routing of USB 1.1/2.0 via Ethernet
- Extend mobile devices, media players, hard drives, and more

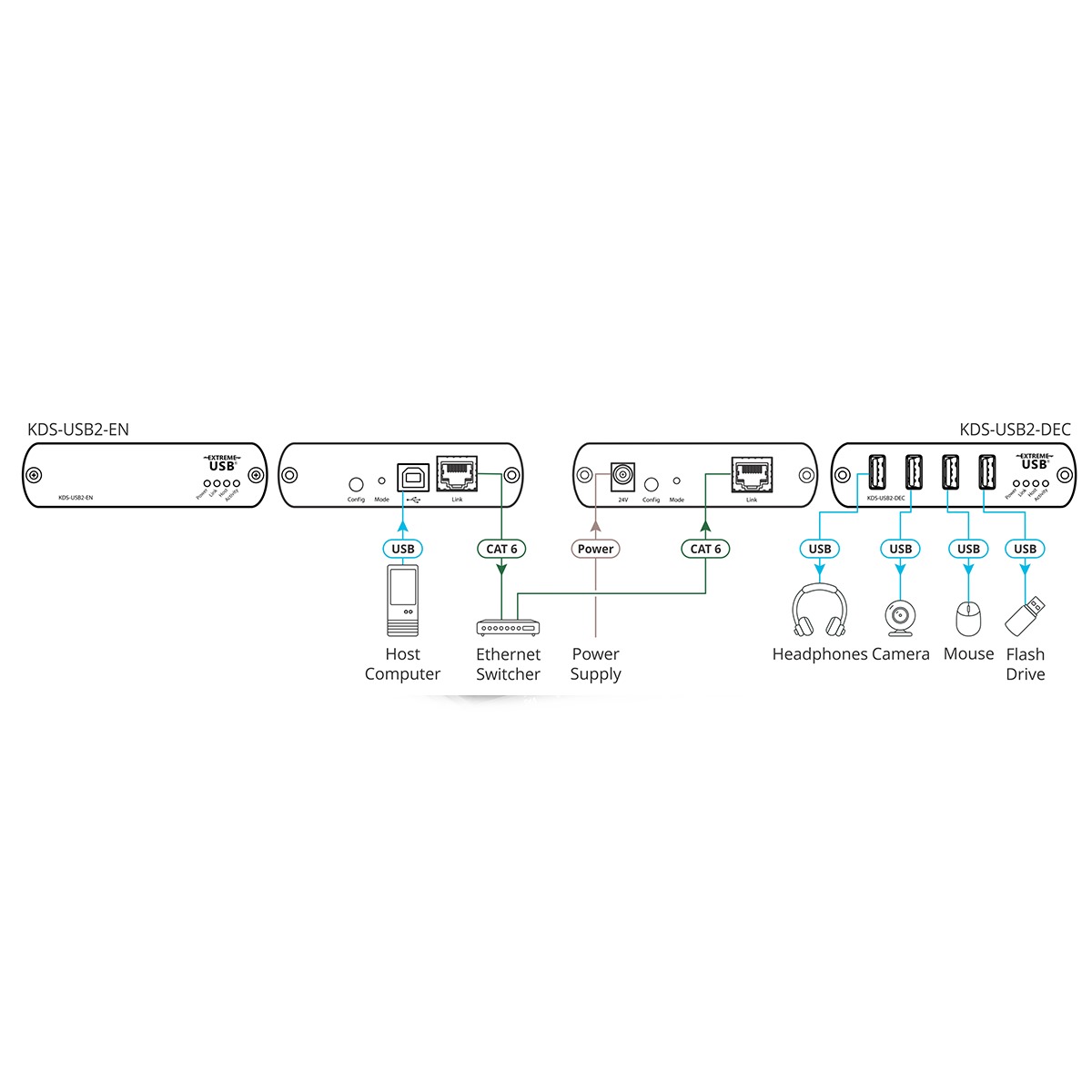

- Pair up to seven decoders to one encoder
- True plug-and-play
- Compatible with all major operating systems
| Ports |
1 USB: On a USB Type-B connector for a host computer 1 CAT 5/6: On an RJ−45 connector Decoder 4 USB: On USB Type-A connectors 1 CAT 5/6: On an RJ−45 connector |
| Extension Line |
Direct Connect: Up to 100m (330 ft) over solid-core Cat 5e/6/7 cable Network Connect: Up to 100m (330 ft) between switches over solid-core Cat 5e/6/7 cable (One local to seven remote pairings supported for Simultaneous Users Interaction) |
| General |
Maximum Throughput: USB 2.0 – Up to 480 Mbps*; USB 1.1 – Up to 12 Mbps Traffic Types: All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk) Device Types: All USB 2.0 and 1.1 Device Types and Classes Maximum Number of Connected USB Devices: 30 Networking Standards: 1000BASE−T |
| User Interface |
Controls: Front panel pairing button Indicators: Power, link, host, activity LEDs |
