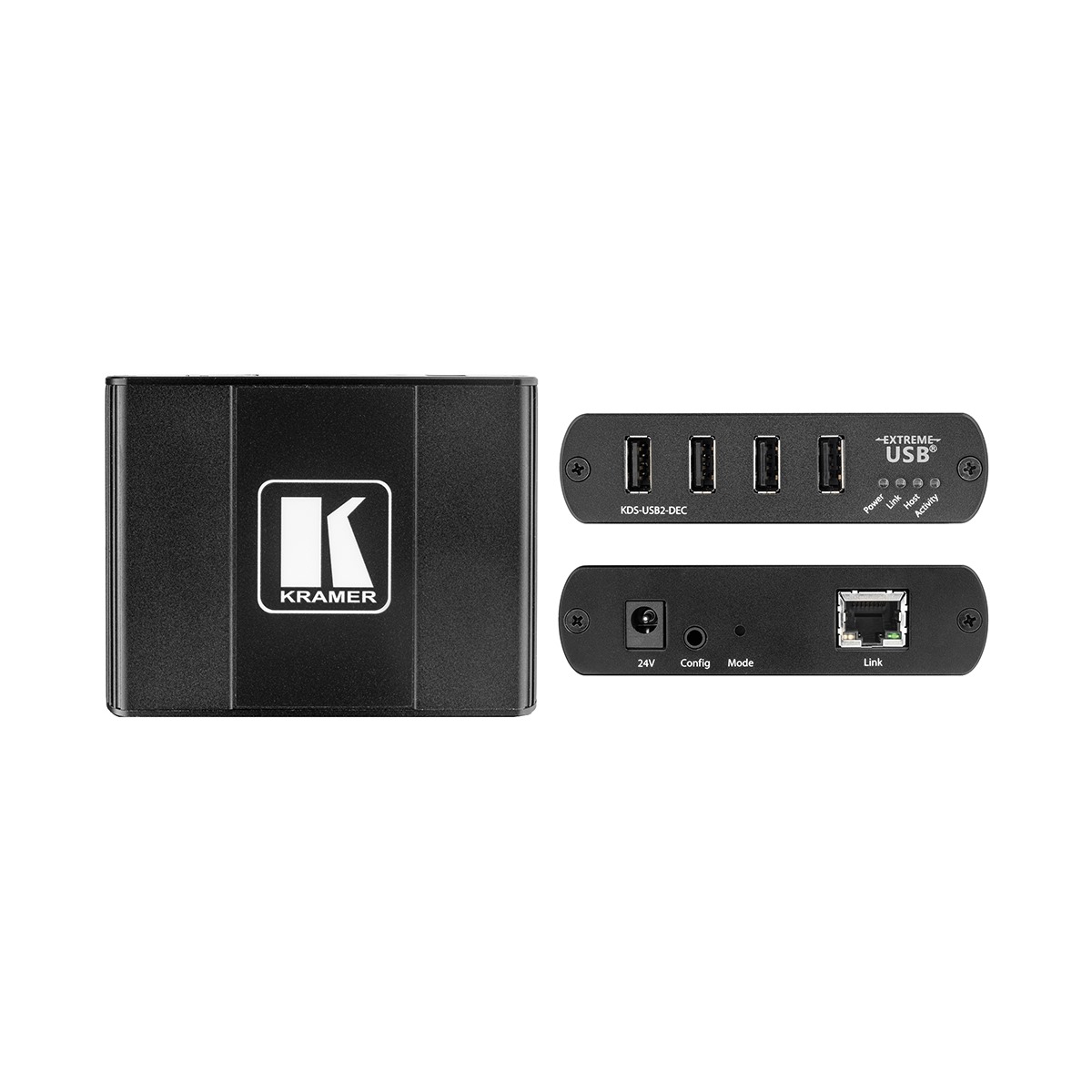

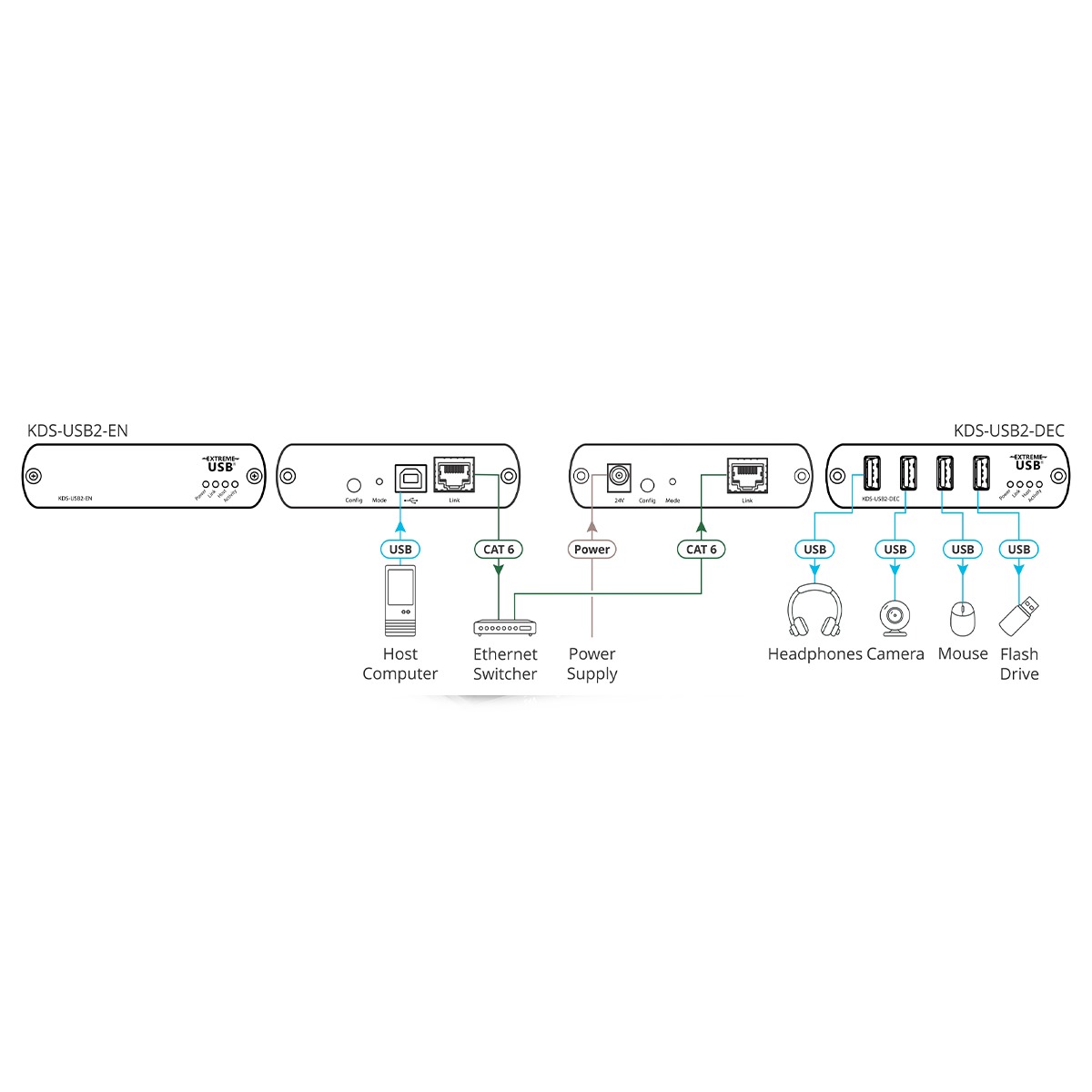

The KDS-USB2-DEC is a USB 2.0 high-speed decoder that extends USB connectivity between a host computer and peripherals such as keyboards, mice, cameras, displays, and storage devices. It supports up to four USB devices and pairs with the KDS-USB2-EN encoder for one-to-one extension or scalable multi-location setups over a LAN. Kramer’s cloud-based control platform enables centralized device mapping and management for real-time collaboration.
- Extension and routing of USB 1.1/2.0 via Ethernet
- Extend mobile devices, media players, hard drives, and more
- Pair up to seven decoders to one encoder
- True plug-and-play
- Compatible with all major operating systems
| Ports |
4 USB: On USB Type-A connectors 1 CAT 5/6: On an RJ−45 connector |
| Extension Line |
Direct Connect: Up to 100m (330 ft) over solid-core Cat 5e/6/7 cable Network Connect: Up to 100m (330 ft) between switches over solid-core Cat 5e/6/7 cable (One local to seven remote pairings supported for simultaneous user interaction) |
| General |
Maximum Throughput: USB 2.0 – Up to 480 Mbps*; USB 1.1 – Up to 12 Mbps Traffic Types: All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk) Device Types: All USB 2.0 and 1.1 Device Types and Classes |
| User Interface |
Controls: Front panel pairing button Indicators: Power, link, host, activity LEDs |
| Power |
Source: 24V DC adapter Consumption: 780mA |
| Enclosure |
Type: Black anodized aluminum Cooling: Convection ventilation |
