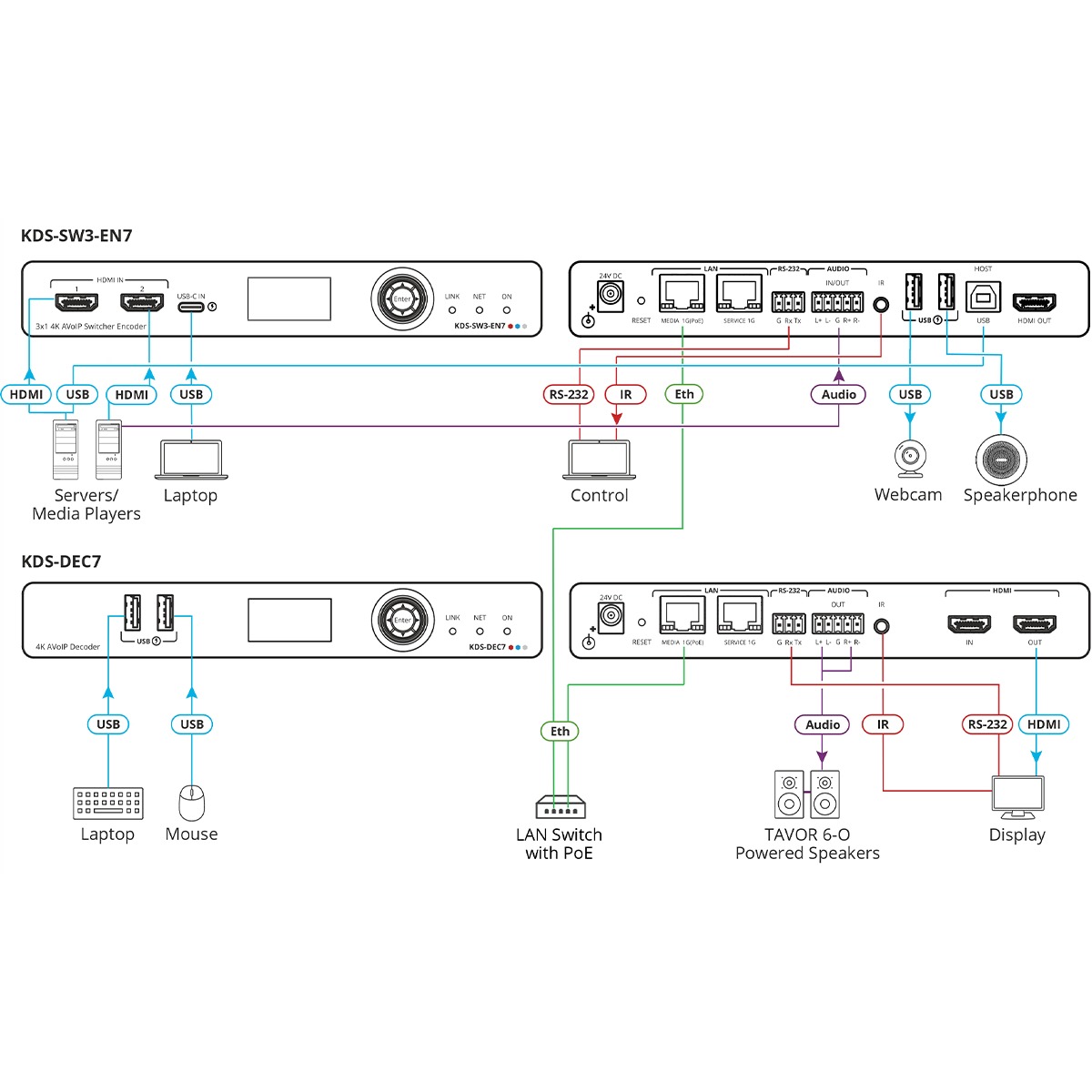

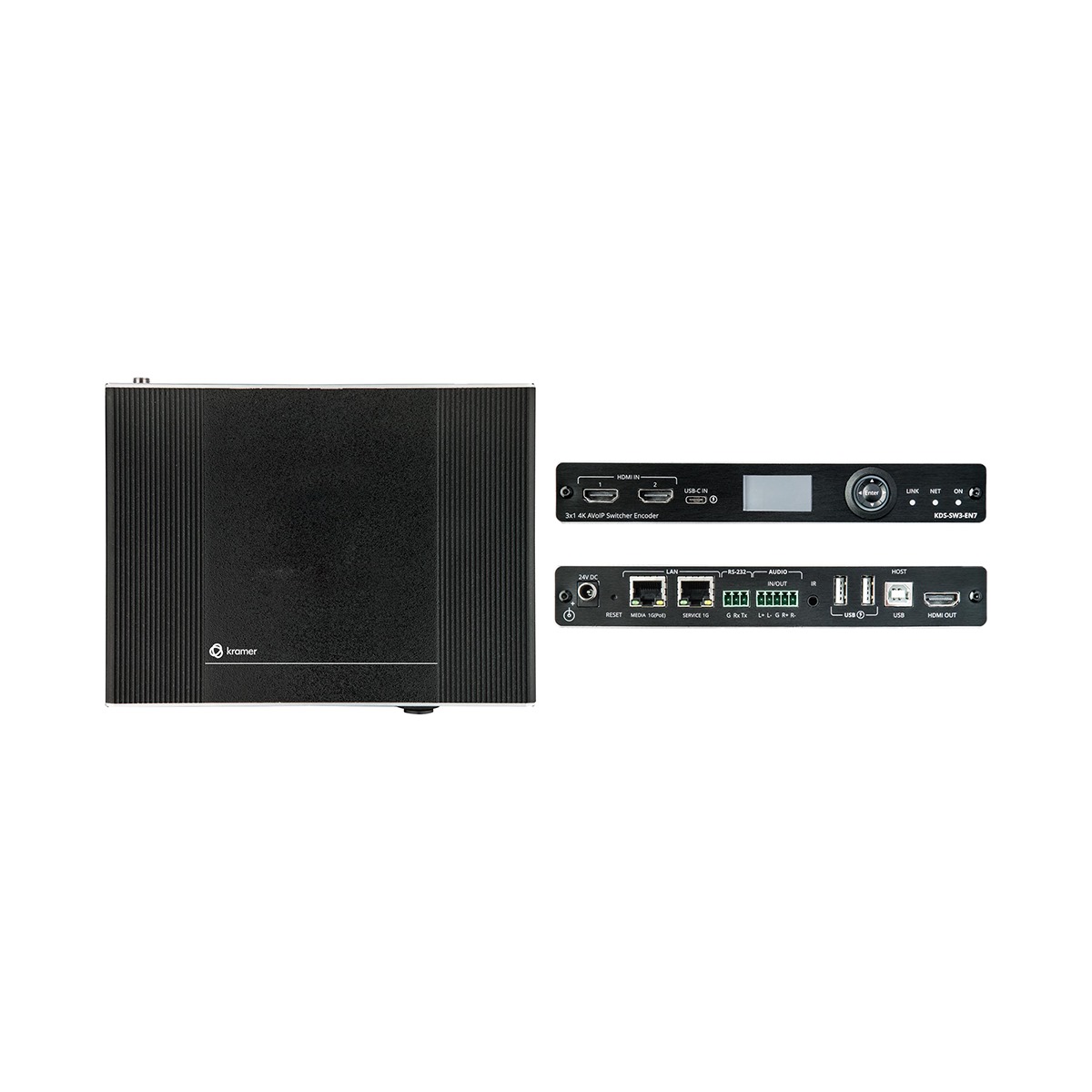

The KDS-SW3-EN7 is an advanced 4K video encoder with automatic switching, designed to stream selected video signals over Ethernet in unicast or multicast configurations. It also supports the integration of Dante digital audio, USB, IR, RS-232, and CEC signals for versatile AV system connectivity.
- Outstanding end–user experience
- Ideal for large–scale deployments
- Robust security
- Simple planning and rollout
| Inputs |
2 HDMI: On female HDMI connectors 1 USB: On a USB-C connector |
| Outputs | 1 HDMI: On a female HDMI connector |
| Ports |
2 Ethernet: On R–J45 female connectors 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3−pin terminal block connector 1 IR: On a 3.5mm TRS connector 1 USB-B Host: On a USB-B connector |
| Network |
1G Multicast through RTSP (Real-Time Streaming Protocol): IGMP snooping, non–blocking, Layer 2 Unicast Through RTSP (Real Time Streaming Protocol) Bit Rate Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps |
| Video Streaming |
Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60hz (4:2:0) Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) Scaler: Yes End-to-End Latency: 33 ms |
| Audio |
Supported Formats: LPCM, Dolby and DTS LPCM LPCM upto 7.1/24−bit/192kHz Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS DTS−HD Master Audio, DTS−HD, DTS−ES Discrete 6.1, DTS−ES Matrix 6.1, DTS Digital Surround 5.1 |
| Power | PoE (Power over Ethernet) 37V to 57V, maximum power consumption 19W (when USB at full load) Optional power supply 24V DC, 5A |
