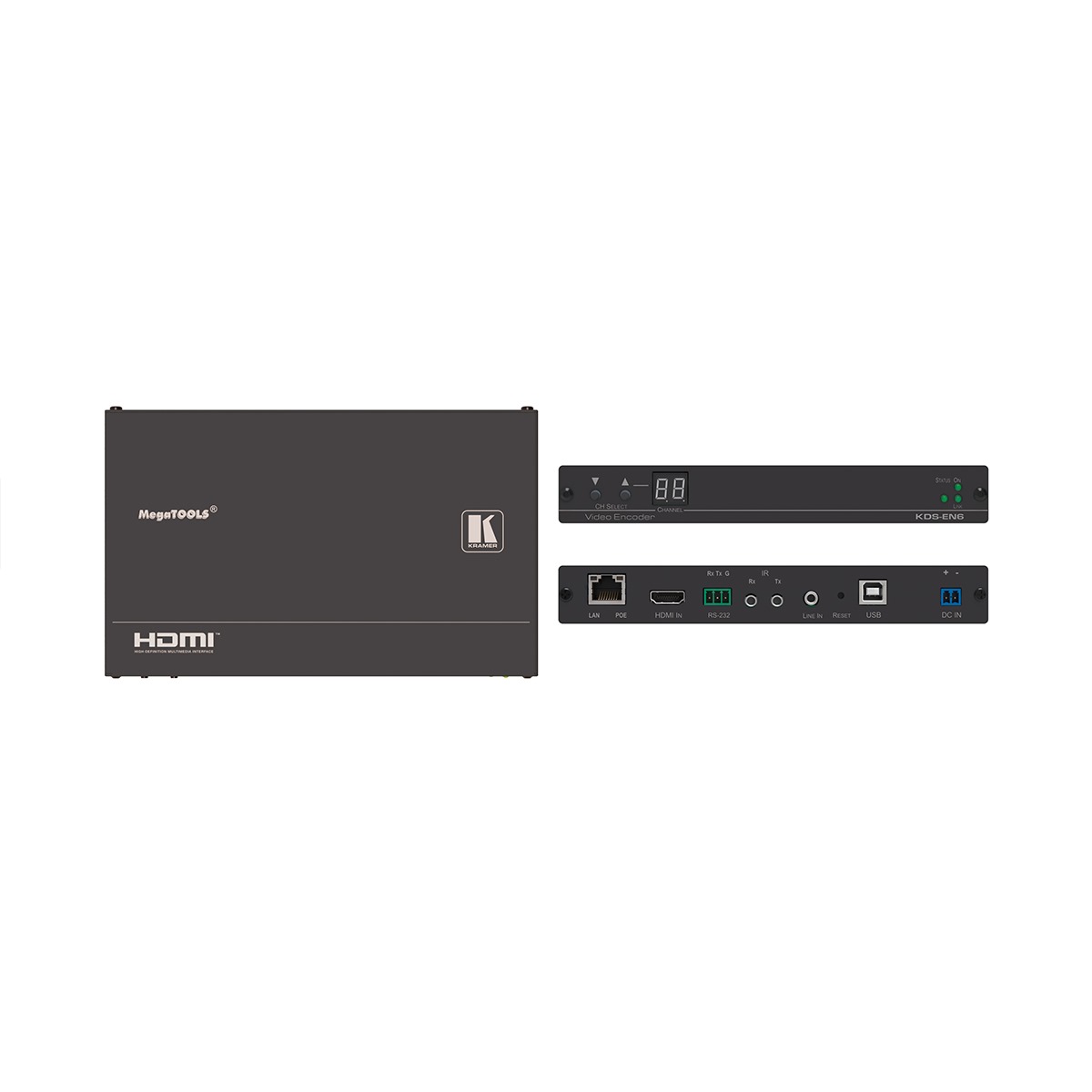

KDS-EN6 4K60 4:2:0 HDCP 2.2 Video Encoder

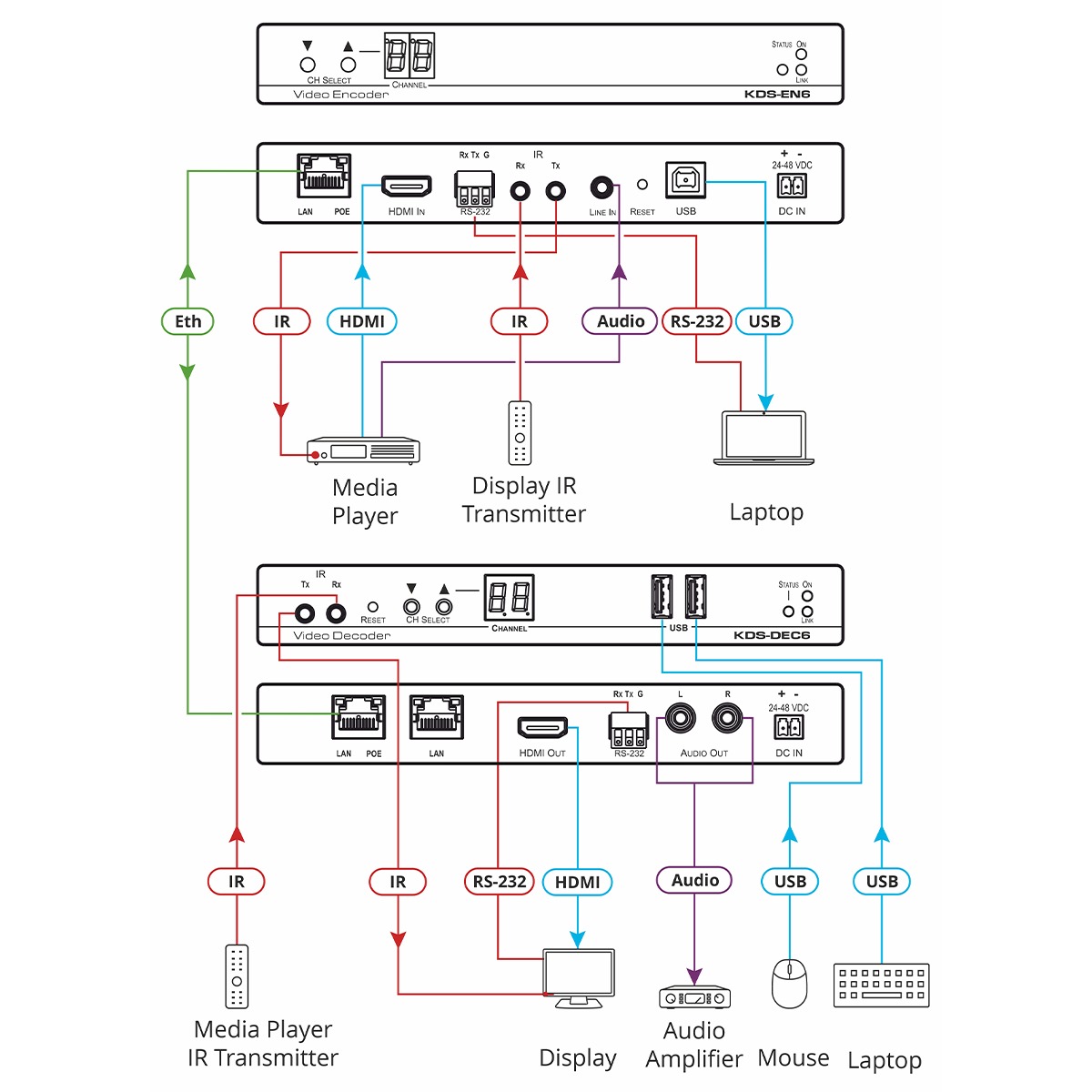

The KDS-EN6 is a 4K IP streaming encoder that transmits video, audio, IR, RS-232, and USB signals over an IP network. It supports 4K@60Hz (4:2:0) video, HDCP 2.2, and unicast or multicast configurations for flexible one-to-one and many-to-many signal distribution.
- Analog audio embedding/de–embedding
- RS–232/IR/USB extension
- 16x16 video wall
- Reliable KVM–over IP
- Control via OSD menu, embedded web UI, and open API
- Over standard 1G network
| Inputs | 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack (line-in), 1 RS−232 on terminal block connectors, 1 USB (Type B) port, 1 IR on a 3.5 mm mini jack (Rx) |
| Outputs | 1 Ethernet (LAN/PoE) on an RJ−45 connector, 1 IR on a 3.5 mm mini jack (Tx) |
| Network | 10M/100M/1000M |
| Network Switch | 1G multicast, IGMP snooping, non-blocking, Layer 2 |
| Streaming | Unicast and multicast through RTSP (Real-Time Streaming Protocol) |
| Controls | Reset button, up and down channel buttons, channel 7−segment display, STATUS, LINK and ON LEDs |
| IR | Wide-band 20 kHz to 60kHz bidirectional IR transmission |
| Video Encoding/Decoding | Compression standard: JPEG 2000 |
| HDCP | HDCP 1.4 and 2.2 |
| Scaling and Cropping | Built in scaling and cropping for flexible display of source content on the decoder output |
