KDS-DEC6 4K60 4:2:0 HDCP 2.2 Video Decoder

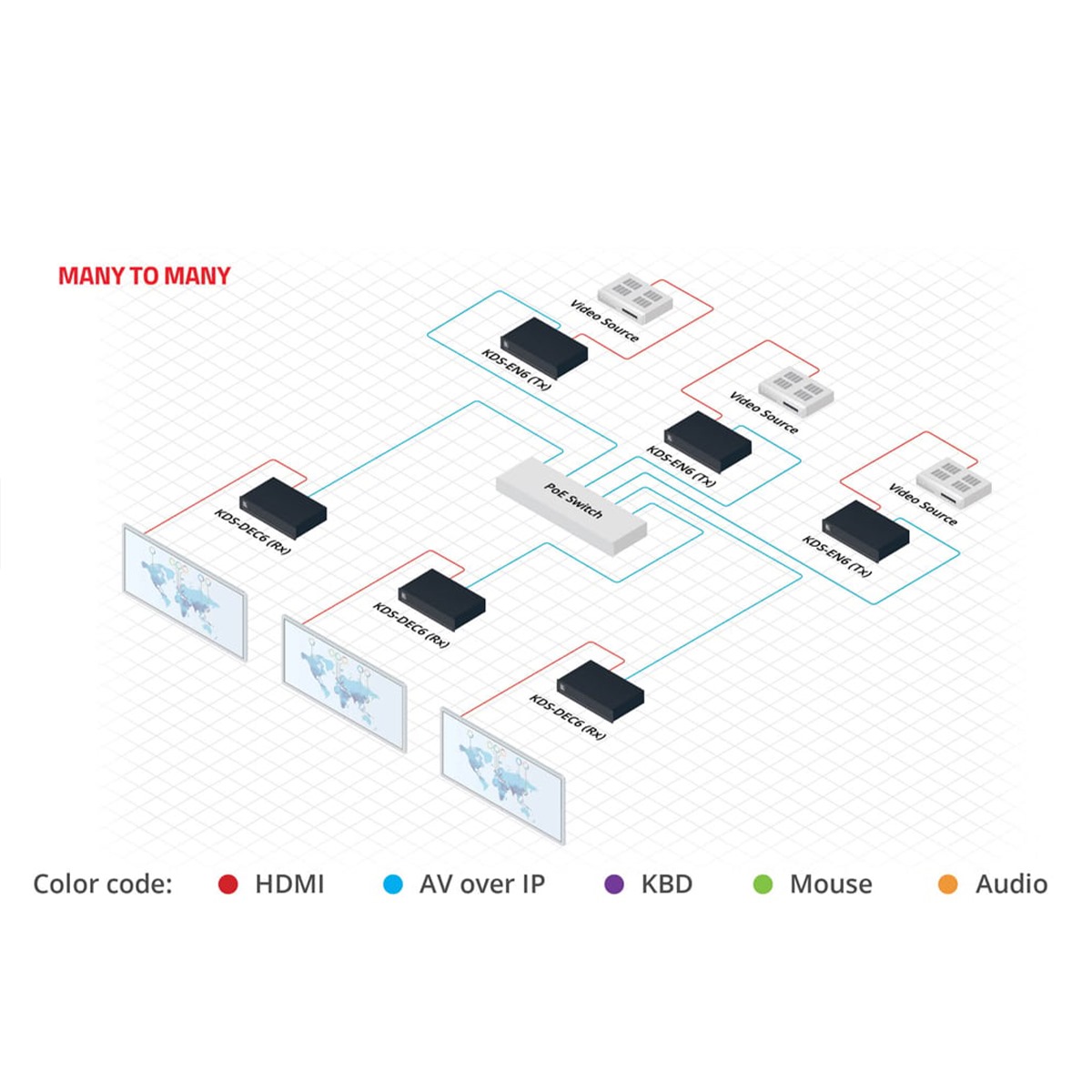

The KDS-DEC6 is a 4K IP streaming decoder that transmits video, audio, IR, RS-232, and USB signals over an IP network. It supports 4K@60Hz (4:2:0) video, HDCP 2.2, and both unicast and multicast configurations for flexible one-to-one and many-to-many signal distribution.

Contact to Seller
  • Analog audio embedding/de–embedding
  • RS–232/IR/USB extension
  • 16x16 video wall
  • Reliable KVM–over IP
  • Control via OSD menu, embedded web UI, and open API
  • Over standard 1G network
Download Product catalog
Inputs 1 Ethernet (LAN/PoE) on an RJ−45 connector, 1 IR on a 3.5 mm mini-jack (Rx)
Outputs 1 HDMI connector, 2 left and right unbalanced stereo audio on RCA connectors, 1 RS−232 on terminal block connectors, 2 USB (Type-A) ports, 1 IR on 3.5 mm mini-jacks (Tx), 1 Ethernet on an RJ−45 connector (daisy−chain LAN)
Network 10M/100M/1000M
Network Switch 1G multicast, IGMP snooping non-blocking, Layer 2
Streaming Unicast and multicast through RTSP (Real Time Streaming Protocol)

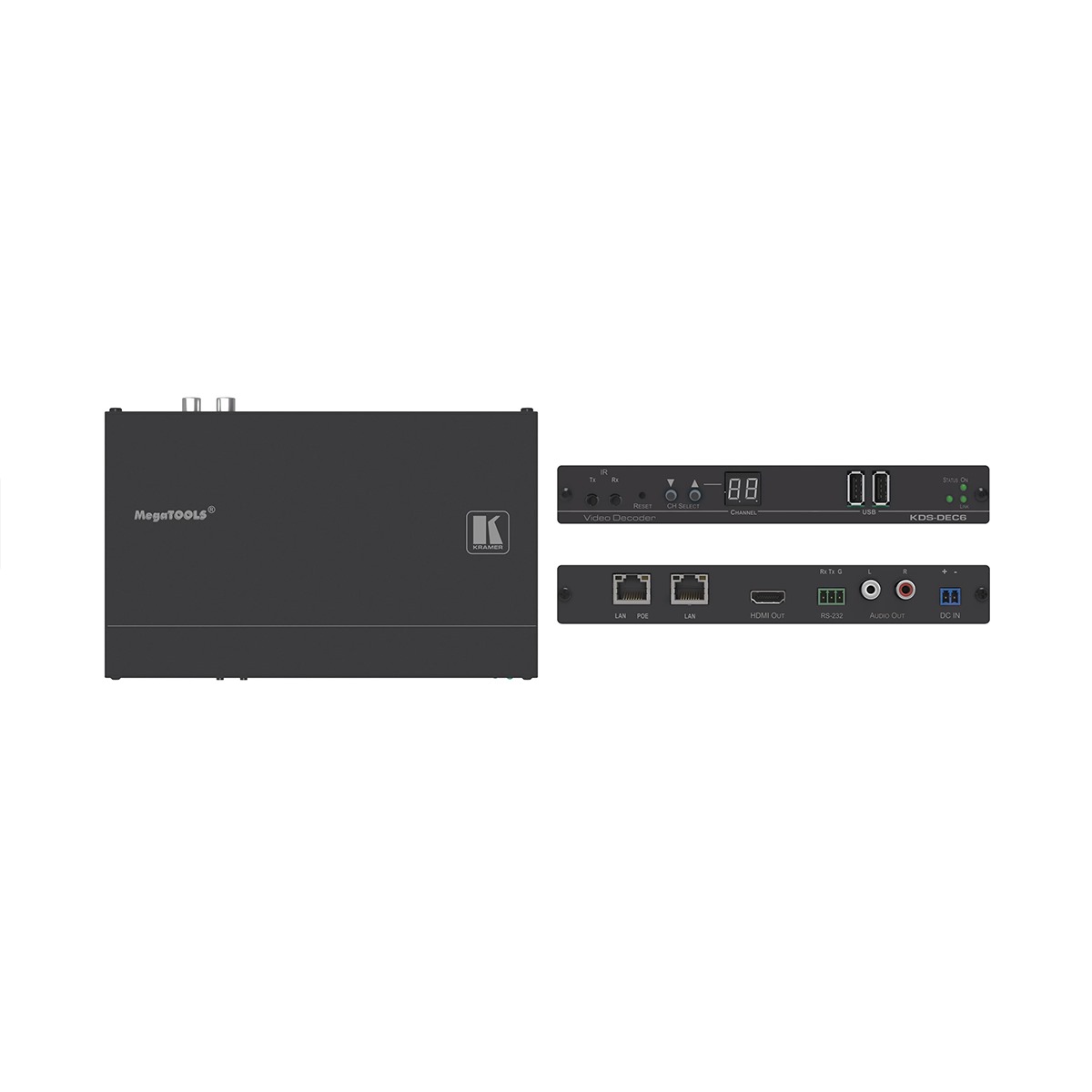

Controls Reset button, up and down channel buttons, channel 7−segment display, STATUS, LINK and ON LEDs
IR Wide-band 20kHz~60kHz bidirectional IR transmission
Video Encoding/Decoding Compression standard: JPEG 2000
HDCP 1.4 and 2.2
Scaling and Cropping Built-in scaling and cropping for flexible display of source content on the decoder output
