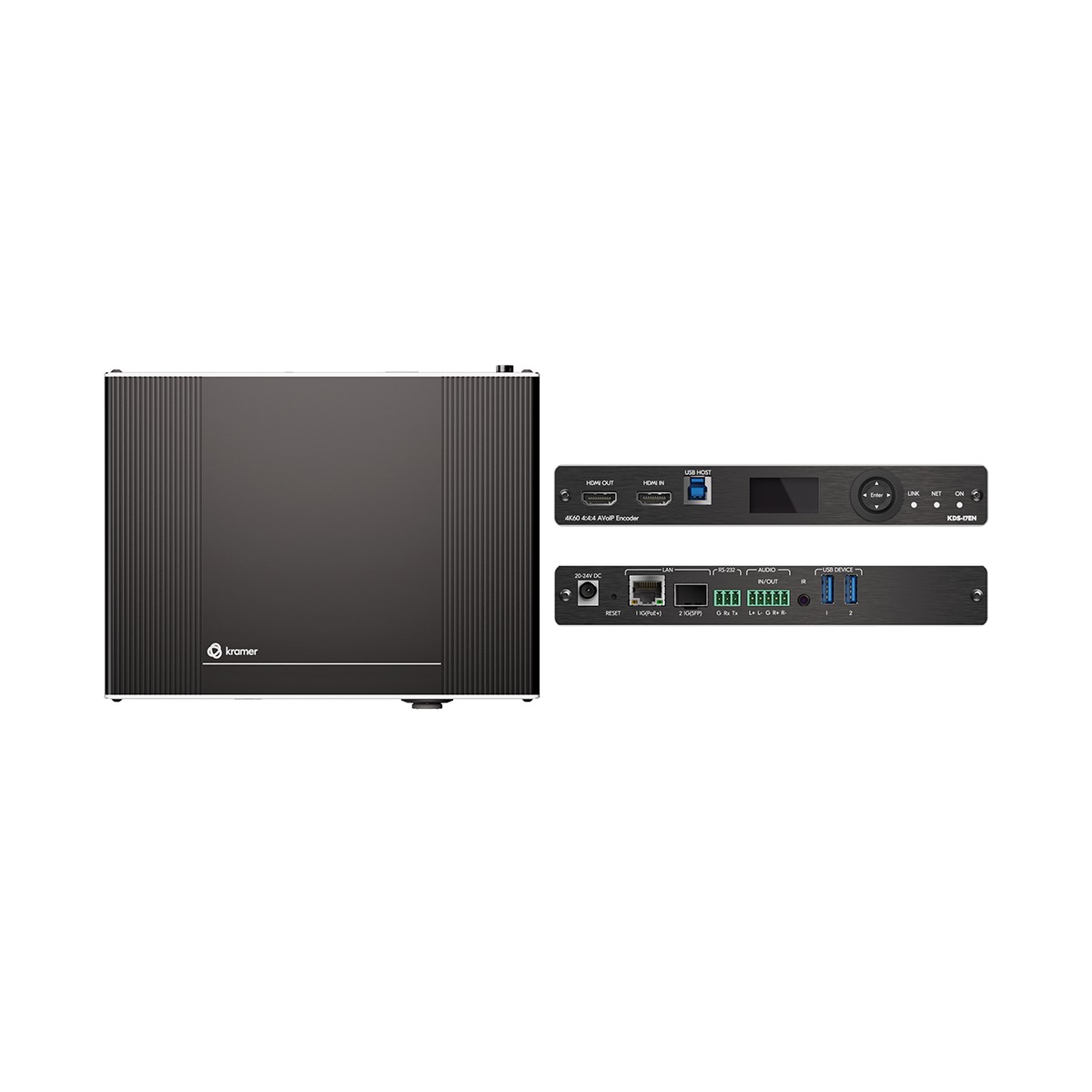

The KDS-17EN is a high-performance 4K@60Hz (4:4:4) AVoIP encoder that transmits 4K video and audio over Ethernet using copper cables or fiber optics. It supports unicast and multicast configurations, along with Dante audio, USB, IR, RS-232, and CEC signals for flexible AV distribution and system control.
- High-quality video and audio streaming over 1GbE
- Outstanding end–user experience
- Ideal for large–scale deployments
- Simple planning and rollout
| Inputs | 1 HDMI: On a female HDMI connector |
| Outputs | 1 HDMI: On a female HDMI connector |
| Ports |
1 Ethernet: On an RJ−45 connector 1 Ethernet: On an SFP optical/copper transceiver port 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3−pin terminal block connector 1 IR: On a 3.5mm TRS connector |
| USB |
1 USB-B Host: Connecting to a USB 3.0 PC/Laptop 2 USB-A Devices: Connecting USB 3.0 local devices 1 Level USB Hub: When connecting to KDS−17DEC |
| Network |
Multicast Through RTSP (Real-Time Streaming Protocol): IGMP snooping, non–blocking, Layer 2 Unicast Through RTSP (Real-Time Streaming Protocol) Bitrate Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps |
| Video |
Compression Standard: JPEG2K−Like, private stream Max Resolution: 4K@60Hz (4:4:4) HDR10 up to 4K30 4:2:2 12 bit |
| Audio |
Supported Formats: LPCM, Dolby, and DTS LPCM LPCM upto 7.1/24−bit/192kHz Dolby Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 |
| Security | HTTPS, 802.1x, OWASP–10, AV Streaming: AES256 encryption |
