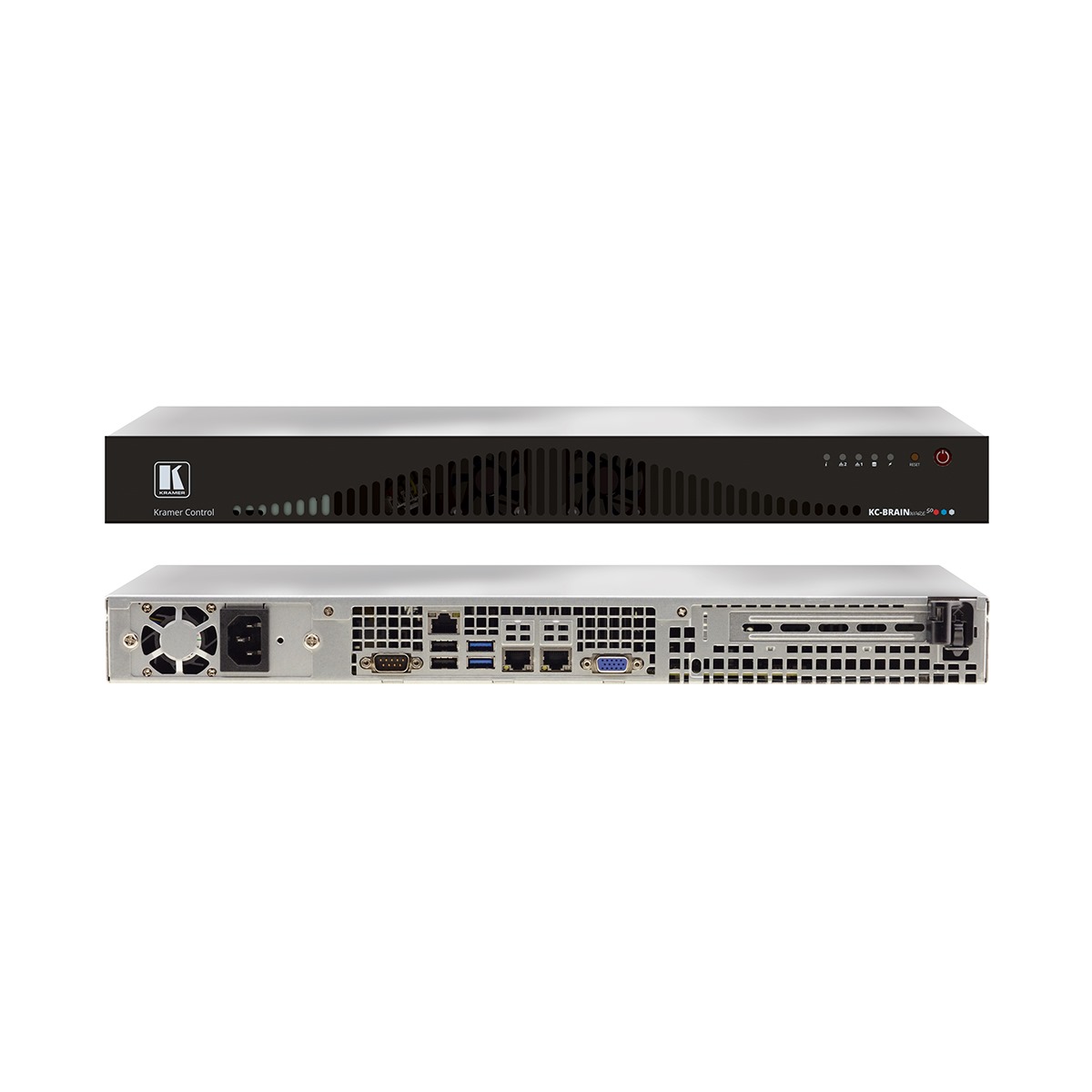

KC-BRAINware-50 Hardware Platform

KC-BRAINware-50 is a hardware platform with 50 pre-installed BRAINware instances, enabling control of up to 50 standard spaces without physical controllers. It manages AV equipment, lighting, and other Ethernet-connected devices through Kramer Control’s user-friendly, programming-free drag-and-drop builder.

Contact to Seller
  • Fully customizable UI
  • Replaces physical Brains
  • Enables controlling almost any device
  • Scalable & flexible control
  • No programming required
Download Product catalog

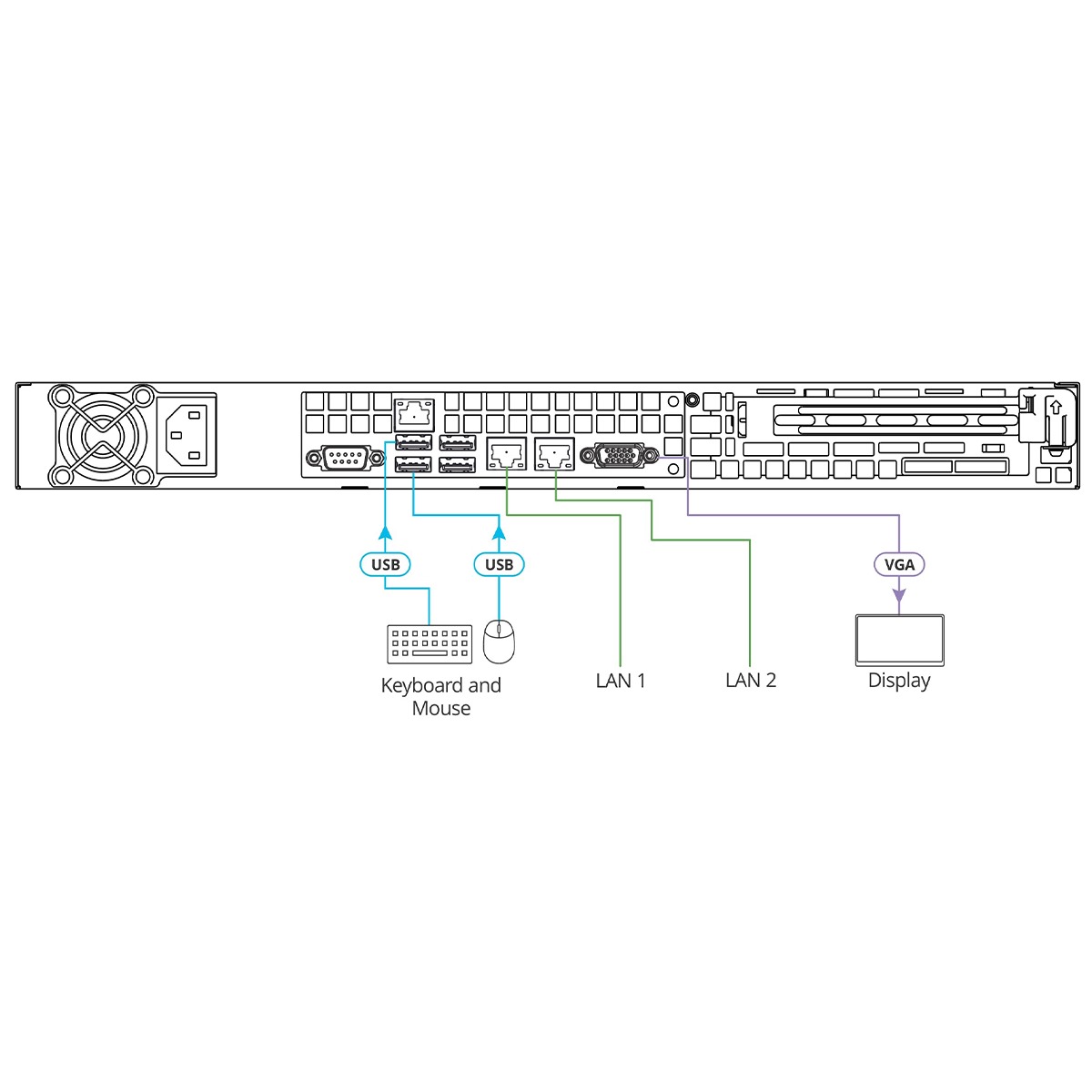

Ports

2 USB 2.0: On USB Type-A connectors

2 USB 3.0: On USB Type-A connectors

2 Ethernet: On RJ−45 connectors

1 RS-232: On a 9−pin serial connector

1 COM: On an RJ−45 connector (for future use)
Outputs VGA HD: On a 15−pin connector
General

Processor: 3.7GHz quad core

Main Memory: 16GB, high speed

Storage: 64GB, solid−state drive
Power

Source: 100−240V AC 50/60Hz

Consumption: 5A
Environmental Conditions

Operating Temperature: 0° to +40°C (32° to 104°F)

Storage Temperature: −40° to +70°C (−40° to 158°F)
