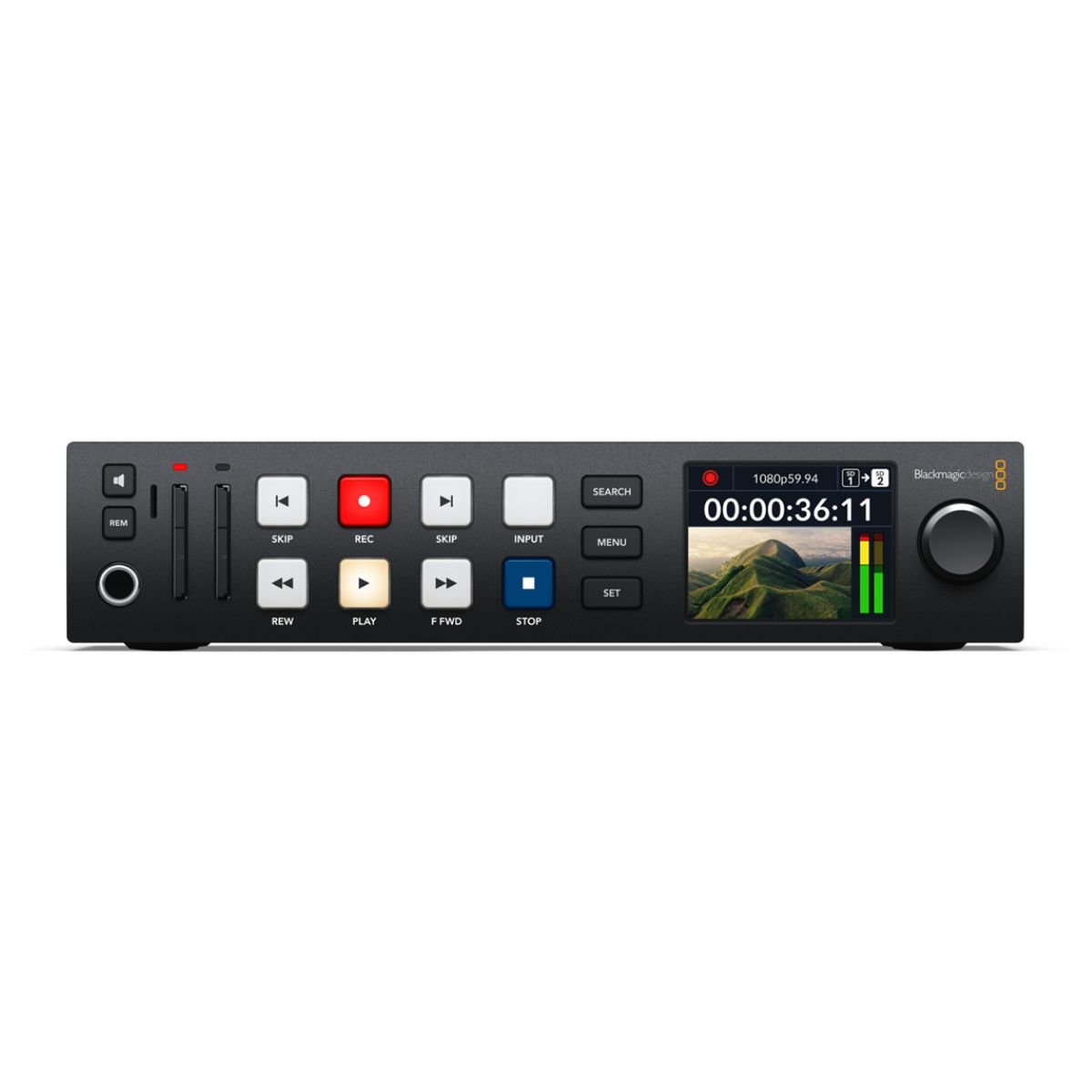

HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output, and the DC power is now a broadcast-style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket, and a built-in speaker.
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K DCI Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25,2160p29.97, 2160p30 |
|
4K DCI Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10,SMPTE 2084 and SMPTE 2108‑1. |
|
SDI Metadata Support |
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. |
|
Supported HDMI Formats |
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
|
Audio Sampling |
Television standard 24‑bit, 48 kHz sample rate. |
|
Video Sampling |
4:2:2 YUV |
|
Color Precision |
10‑bit |
|
Color Space |
REC 601, REC 709, REC 2020.33 point 3D LUTS can be applied to SDI monitor out. |
|
HDR Support |
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
|
Multi Rate Support |
Auto detection of SD, HD and 6G‑SDI. |
|
Copy Protection |
HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Media |
2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. |
|
Media Type |
UHS-I and UHS-II SD cards. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Control
|
Built-in Control Panel |
13 buttons for transport and device control with search dial and 2.2-inch color display. |
|
External Control |
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload. |
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
2 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
Built-in Speaker |
Mono |
|
Audio Output |
1 x 6.35 mm headphone jack. |
|
Screen |
2.2-inch LCD. |
|
Timecode Connections |
1 x BNC In, 1 x BNC Out. |
|
Reference Connections |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
|
SDI Audio Inputs |
16 channels of embedded audio. |
|
SDI Audio Outputs |
16 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Remote Control |
1 x RS-422 In, 1 x RS-422 Out. |
|
Recorder Configuration |
Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
|
Ethernet |
1Gb/s |
|
Computer Interface |
1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates. |
