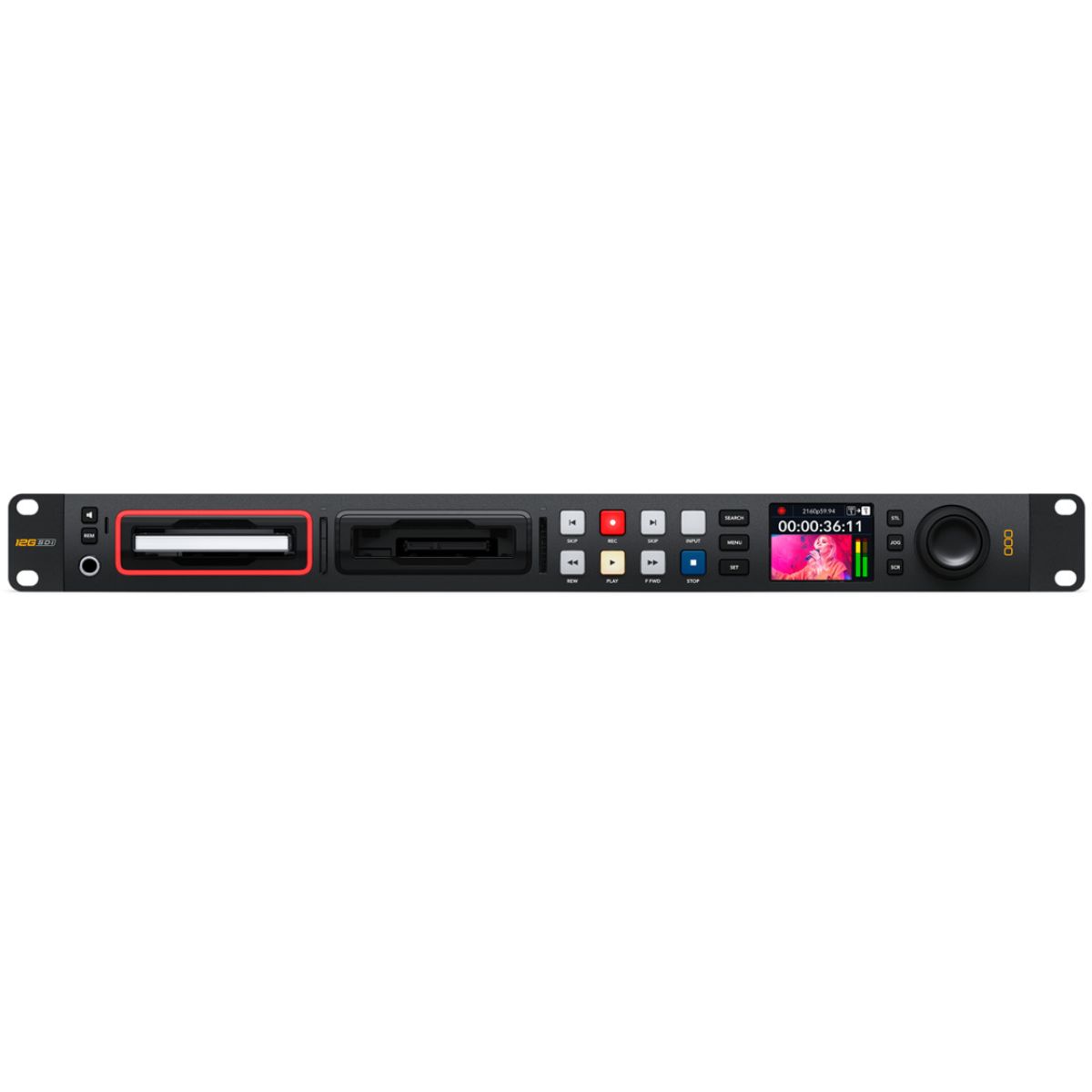

For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model’s SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI, so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD, and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K DCI Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K DCI Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. |
|
SDI Metadata Support |
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI. |
|
Supported HDMI Formats |
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
|
Audio Sampling |
Television standard 24‑bit, 48 kHz sample rate. |
|
Video Sampling |
4:2:2 YUV |
|
Color Precision |
10‑bit |
|
Color Space |
REC 601, REC 709, REC 2020.33 point 3D LUTS can be applied to SDI monitor out. |
|
HDR Support |
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. |
|
Multi Rate Support |
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. |
|
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Media |
2 x 2.5 inch disc slots 2 x SD card slots 1 x USB‑C 3.1 Gen 2 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI. |
|
Media Type |
SATA-II or SATA-III 2.5-inch solid-state media.UHS-I and UHS-II SD cards. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
2 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
Built-in Speaker |
Mono |
|
Audio Output |
1 x 6.35 mm headphone jack. |
|
Screen |
2.2-inch LCD. |
|
Timecode Connections |
1 x XLR In, 1 x XLR Out. |
|
Reference Connections |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
|
SDI Audio Inputs |
16 channels of embedded audio. |
|
SDI Audio Outputs |
16 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Remote Control |
1 x RS-422 In, 1 x RS-422 Out. |
|
Recorder Configuration |
Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
|
Ethernet |
10Gb/s |
|
Computer Interface |
1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s)for external drive recording, webcam out, software configuration and updates. |
