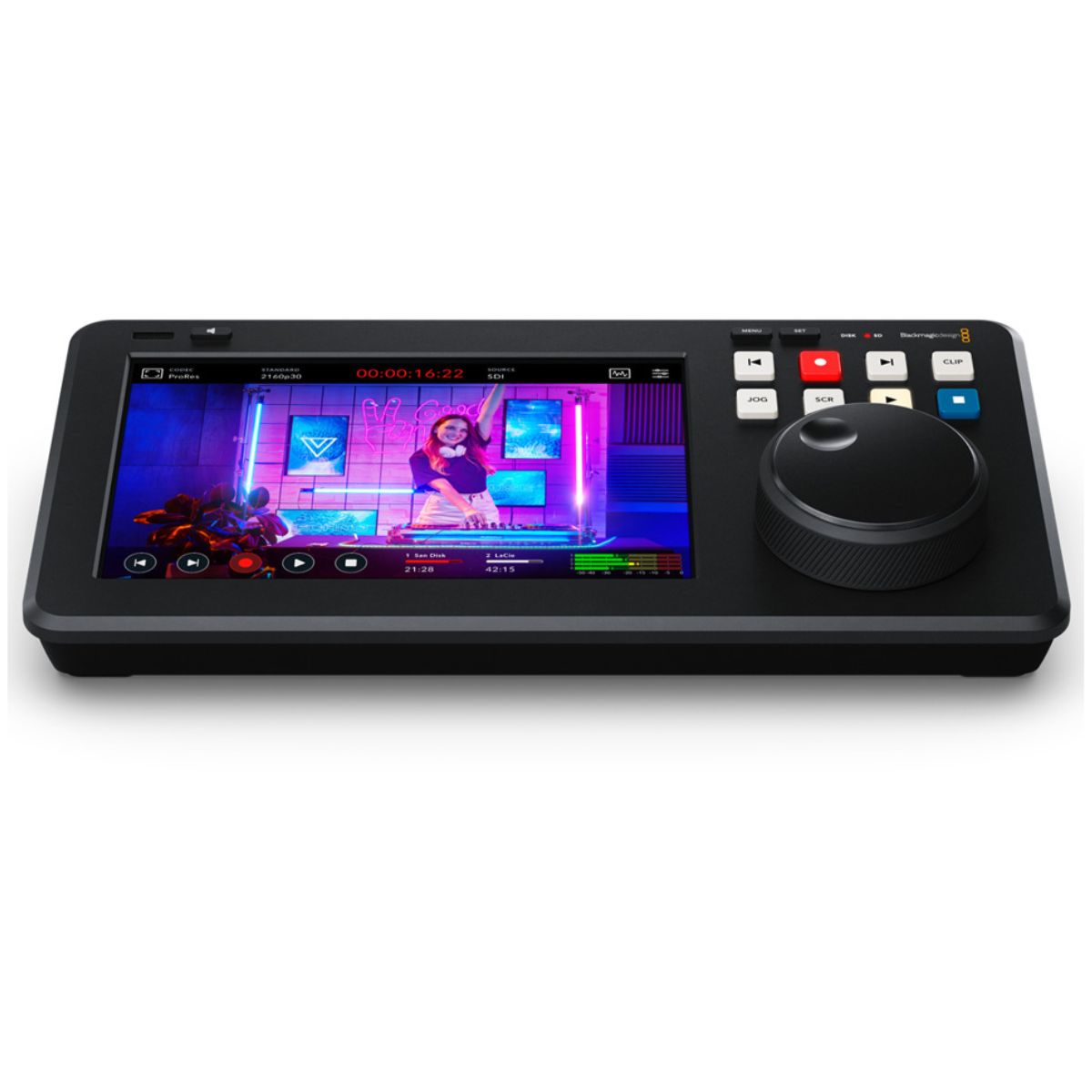

HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT, and network recording via fast 10G Ethernet.
Media
|
Cache Recording |
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. Slot supports 60mm, 80mm, and 110mm cards. |
|
Media |
1 x SD card slot 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, Ultra HD, and 4K DCI. |
|
Media Type |
UHS-I and UHS-II SD cards. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems |
Control
Built-in Control Panel
Integrated capacitive touchscreen LCD with on-screen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
External Control
11 buttons for transport and device control with search dial.

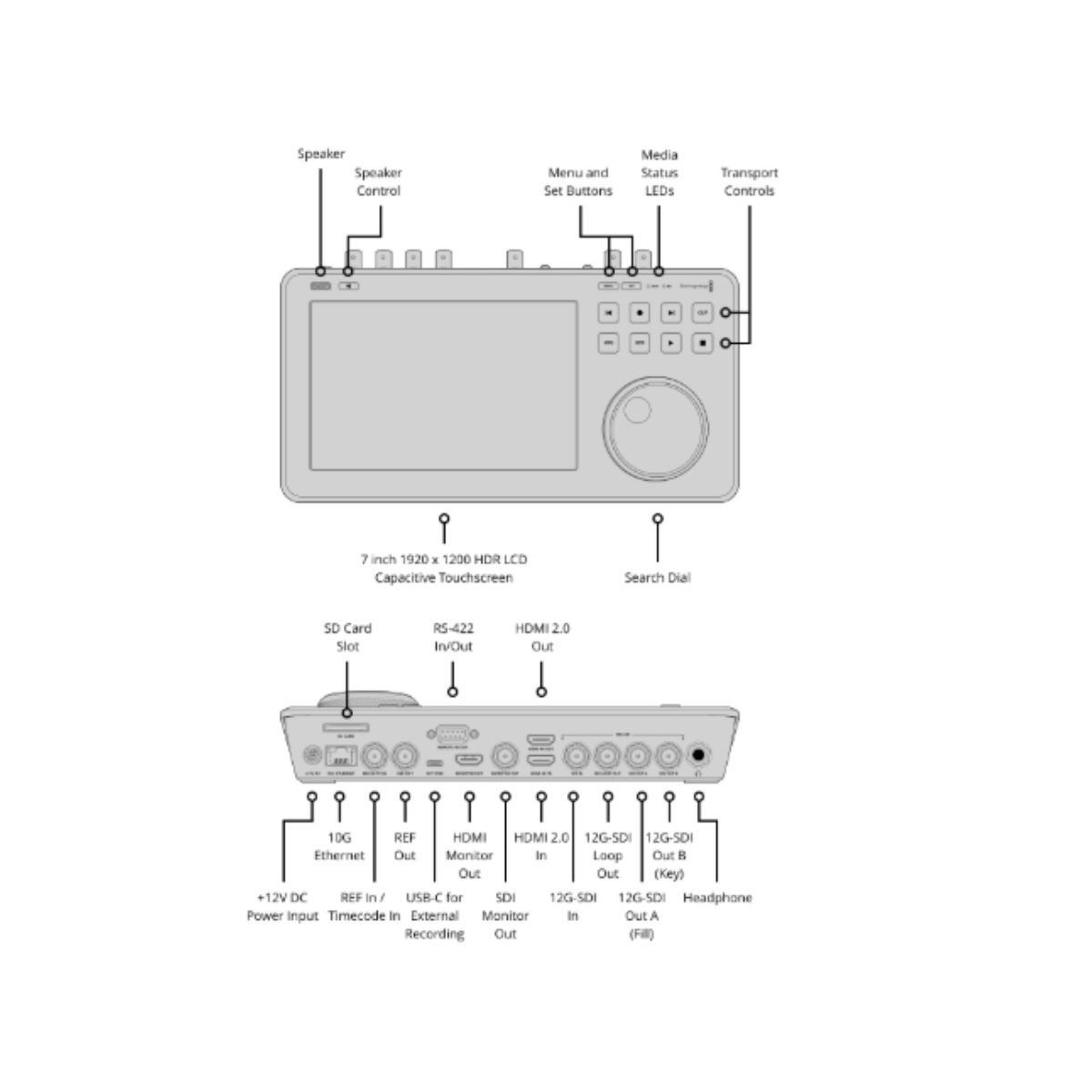

Connections
|
SDI Video Inputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Video Outputs |
2 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
HDMI Monitor Outputs |
1 |
|
Built-in Speaker |
Mono |
|
Audio Output |
1 x 6.35 mm headphone jack |
|
Screen |
7-inch LCD. |
|
Reference Input |
1 x BNC In Tri-Sync/Black Burst and Timecode. |
|
Reference Output |
1 x BNC Out. Tri-Sync or Black Burst. |
|
SDI Audio Inputs |
64 channels of embedded audio. |
|
SDI Audio Outputs |
64 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Remote Control |
1 x RS-422 In. |
|
Recorder Configuration |
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol. |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T. |
|
External Recording |
1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording. |
|
Computer Interface |
1 x USB-C for software updates. |
