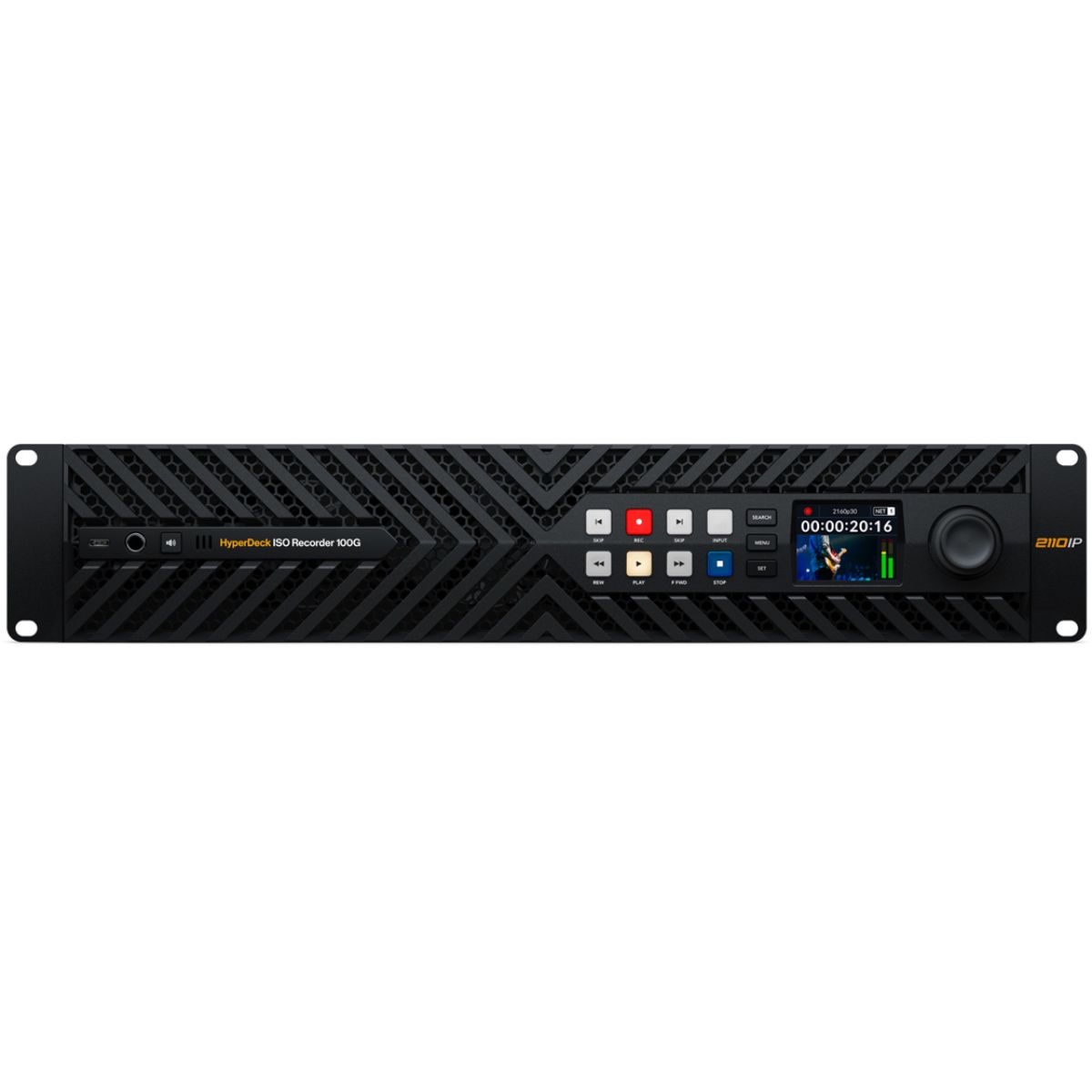

HyperDeck ISO Recorder 100G is designed for live production, recording 8 cameras at the same time. Record for later editing or get exciting live-action replay with DaVinci Resolve! Files are recorded in broadcast-quality ProRes format direct to network storage for very long record durations. It connects via SMPTE-2110 100G Ethernet, so all 8 video channels run over a single connection. Or add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also play back all 8 channels, great for testing!
Audio
|
Headphones |
Front panel headphone outputs active monitor. |
|
Built in Speaker |
Front panel mono speaker outputs active monitor. |
|
Audio Controls |
Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial. |
Media
Media
Records over 100G Ethernet to network storage.
Control
|

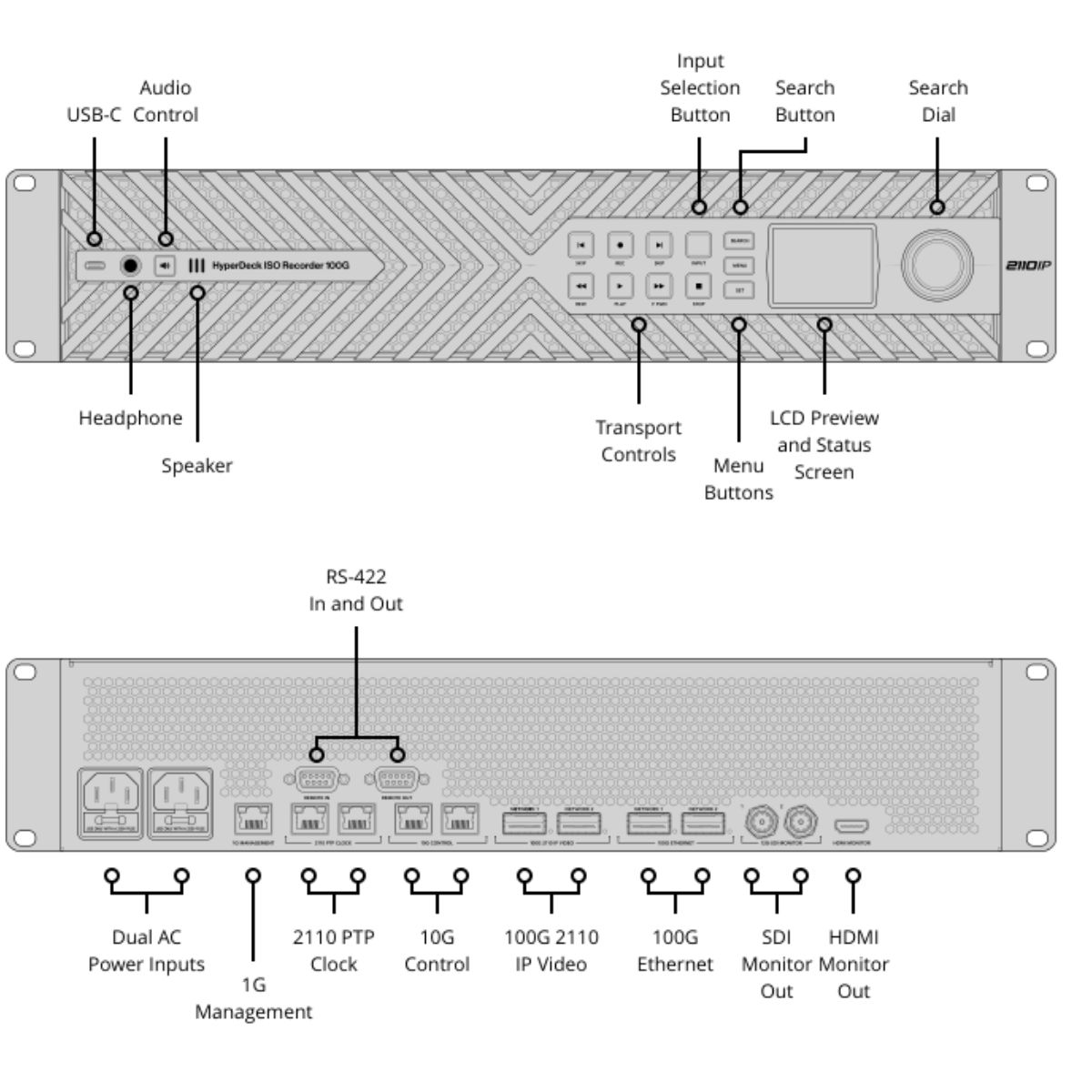

Built-in Control Panel |
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2-inch color display. |
|
External Control |
RS-422 deck control, 2110 IP video start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol and REST API for HyperDeck. Supports remote FTP and HTTP Web Media Manager. |
Connections
|
100G 2110 IP Networks |
2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
Senders and Receivers per 100G Pair |
8 x Ultra HD or 8 HD |
|
100G Ethernet |
2 x 100G QSFP28 connections. |
|
10G Control Network |
2 x 10G RJ45 Ethernet for NMOS control. |
|
Reference Network |
2 x RJ45 Ethernet for 2110 PTP clock. |
|
1G Management |
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates. |
|
SDI Monitor Outputs |
2 |
|
HDMI Monitor Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
SMPTE ST 2110 IP Audio Inputs |
Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
SDI Audio Outputs |
16 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels embedded audio. |
|
Computer Interface |
1 x USB-C for HyperDeck Setup utility and software updates. |
|
Power |
2 x IEC C14 power inputs. |
