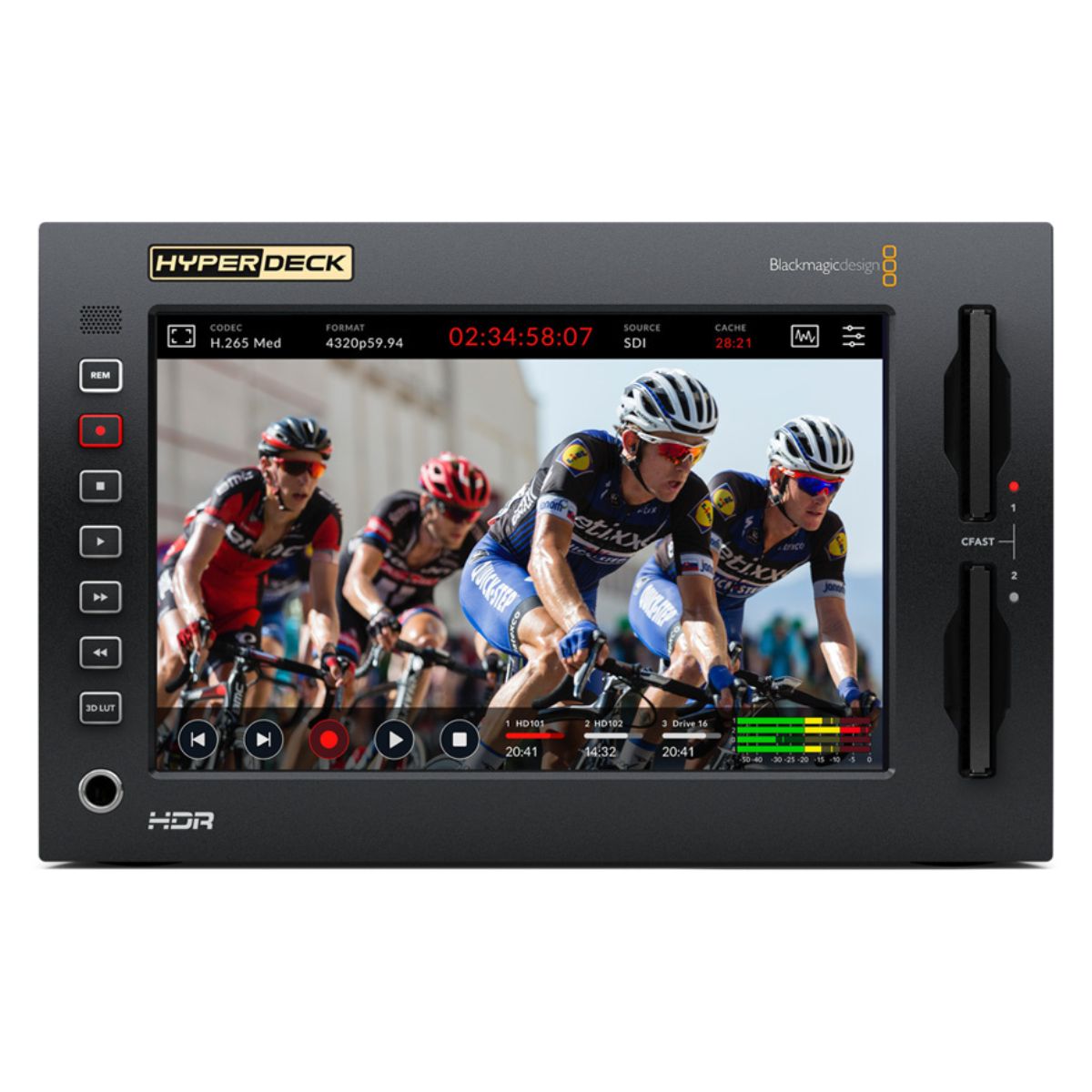

8K broadcast deck with the trusted reliability of HyperDeck combined with advanced H.265 recording, internal cache, 3D LUTs, native 8K and HDR support. Large touch screen to view your recording with dedicated buttons for play, stop, and record, plus a mini timeline for scrolling through your recordings. You can even imagine swiping to jog! The LCD includes a heads-up display of timecode, video standard, media status, audio meters, and more!
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K DCI Video Standards |
1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K DCI Video Standards |
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI |
|
8K Video Standards |
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 |
|
8K DCI Video Standards |
4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084. |
|
SDI Metadata Support |
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI. |
|
Audio Sampling |
Television standard 24-bit, 48 kHz sample rate. |
|
Video Sampling |
4:2:2 YUV |
|
Color Precision |
10-bit |
|
Color Space |
REC 601, REC 709, REC 2020. 33-point 3D LUTS can be applied via the LUTS menu tab. |
|
Multi Rate Support |
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI. |
|
Copy Protection |
HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Cache or Internal Recording |
Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s. |
|
Media |
2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K. |
|
Media Type |
CFast card and external USB-C flash drives. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
|
Cache or Internal Recording |
Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s. |
|
Media |
2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K. |
|
Media Type |
CFast card and external USB-C flash drives. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
