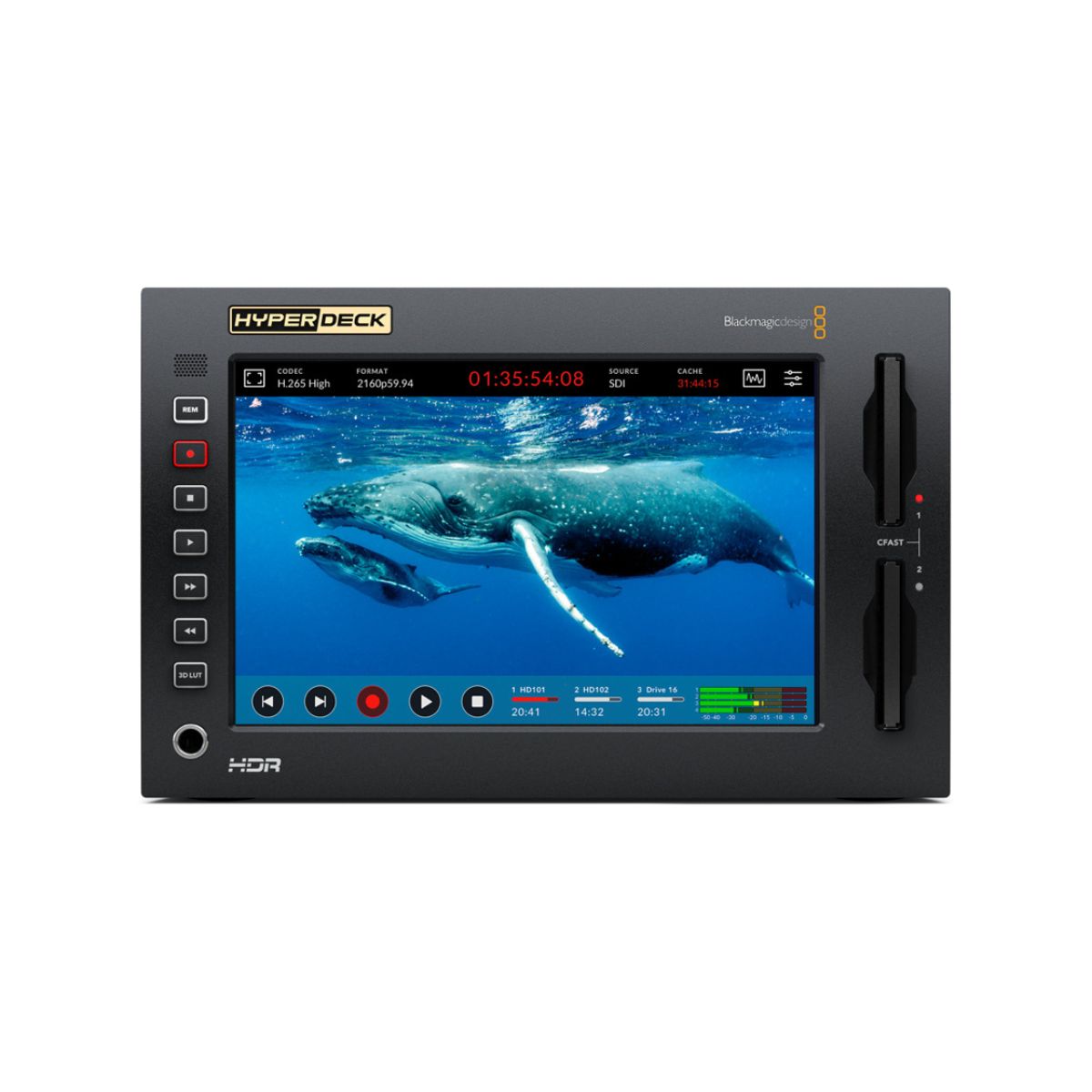

HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs, and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K DCI Video Standards |
1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K DCI Video Standards |
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084. |
|
SDI Metadata Support |
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI. |
|
Audio Sampling |
Television standard 24-bit, 48 kHz sample rate. |
|
Video Sampling |
4:2:2 YUV |
|
Color Precision |
10-bit |
|
Color Space |
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab. |
|
Multi Rate Support |
Auto detection of SD, HD, 6G‑SDI, and 12G-SDI. |
|
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Cache or Internal Recording |
Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s. |
|
Media |
2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, and Ultra HD. |
|
Media Type |
CFast card and external USB-C flash drives. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |

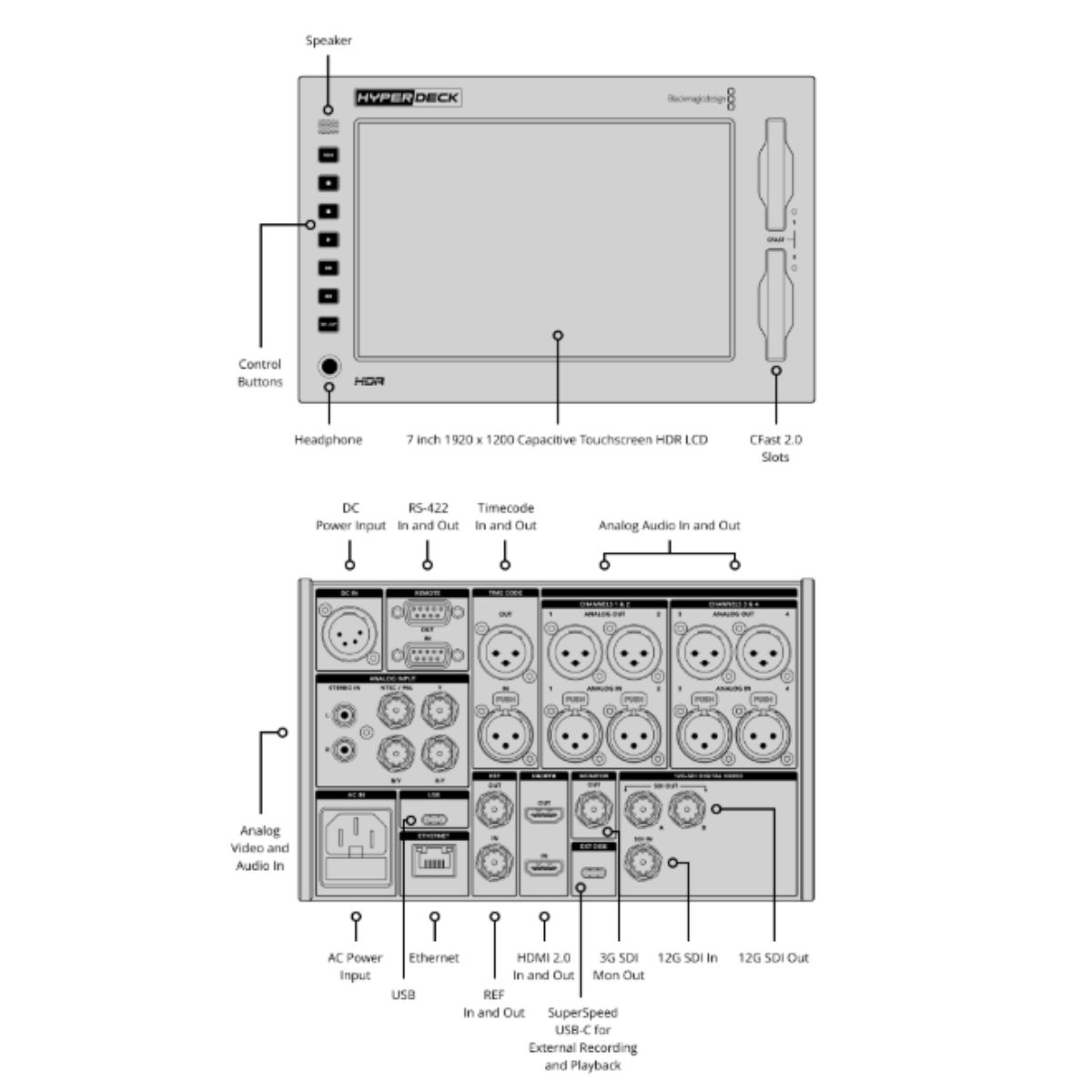

Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
3 (12G-SDI A and B plus 3G-SDI Monitor Out) |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
Analog Video Inputs |
1 x Component YUV on 3 BNCs 1 x Composite NTSC/PAL on 1 BNC |
|
Analog Video Outputs |
None |
|
Analog Audio Inputs |
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors. |
|
Built in Speaker |
Mono |
|
Screen |
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD |
|
Timecode Connections |
1 x XLR in and 1 x XLR out. |
|
Reference Input |
Tri-Sync or Black Burst. |
|
SDI Audio Inputs |
64 channels of embedded audio. |
|
SDI Audio Outputs |
64 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Remote Control |
1 x RS-422 In, 1 x RS-422 Out. |
|
Recorder Configuration |
Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
|
Ethernet |
10Gb/s |
|
External Recording |
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording. |
|
Computer Interface |
1 x USB-C for software updates. |
