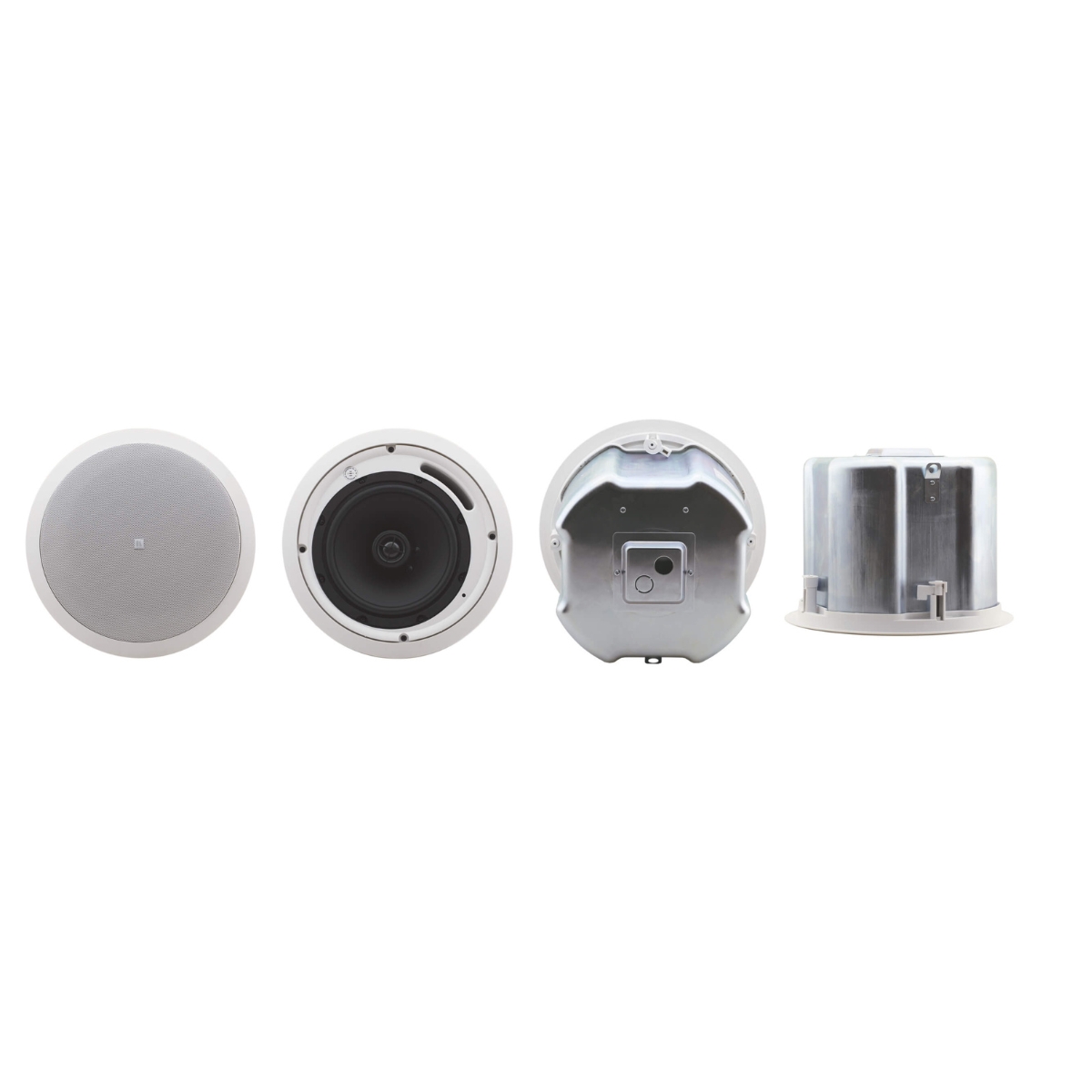

Galil 8-C Closed–Back Ceiling Speakers
The Galil 8-C is a closed-back ceiling speaker featuring a multi-tap power transformer with selectable 8Ω, 70V, and 100V settings. It is ideal for array installations and versatile commercial audio applications.
- UL Listed
- Woofer — 8” polypropylene cone
- Tweeter — 1” silk dome
- Impedance — 8Ω
- Power Handling — 64W RMS, 180W Continuous
- Transformer Taps — 70/100V
- 2 Speakers (1 Pair)
| DESCRIPTION | 2-way closed-back ceiling speakers |
| FREQUENCY RESPONSE | 65Hz to 20kHz @−10dB, 85Hz to 20kHz @±3dB |
| WOOFER | 8” (200mm) polypropylene with rubber surround |
| TWEETER | 1” (25.4mm) silk dome |
| IMPEDANCE | 8Ω (transformer tap in off position) |
| TRANSFORMER TAPS | 70V – 64W/32W/16W/8W/4W/Off (Lo−Z), 100V – 64W/32W/16W/8W/Off (Lo−Z) |
| SENSITIVITY | 89dB SPL, 1W@1m |
| MAX SPL | Continuous: 104dB, peak: 107dB |
| POWER HANDLING | 64W RMS, 180W continuous program |
| CROSSOVER FREQUENCY | 6.3kHz |
| COVERAGE ANGLE | 110° |
| DIRECTIVITY FACTOR (Q) | 4.6 averaged 1kHz to 10kHz |
| DIRECTIVITY INDEX (DI) | 6.5dB averaged 1kHz to 10kHz |
| INPUT CONNECTOR | Terminal block |
| MATERIALS | ABS bezel, aluminum grill, metal back can |
