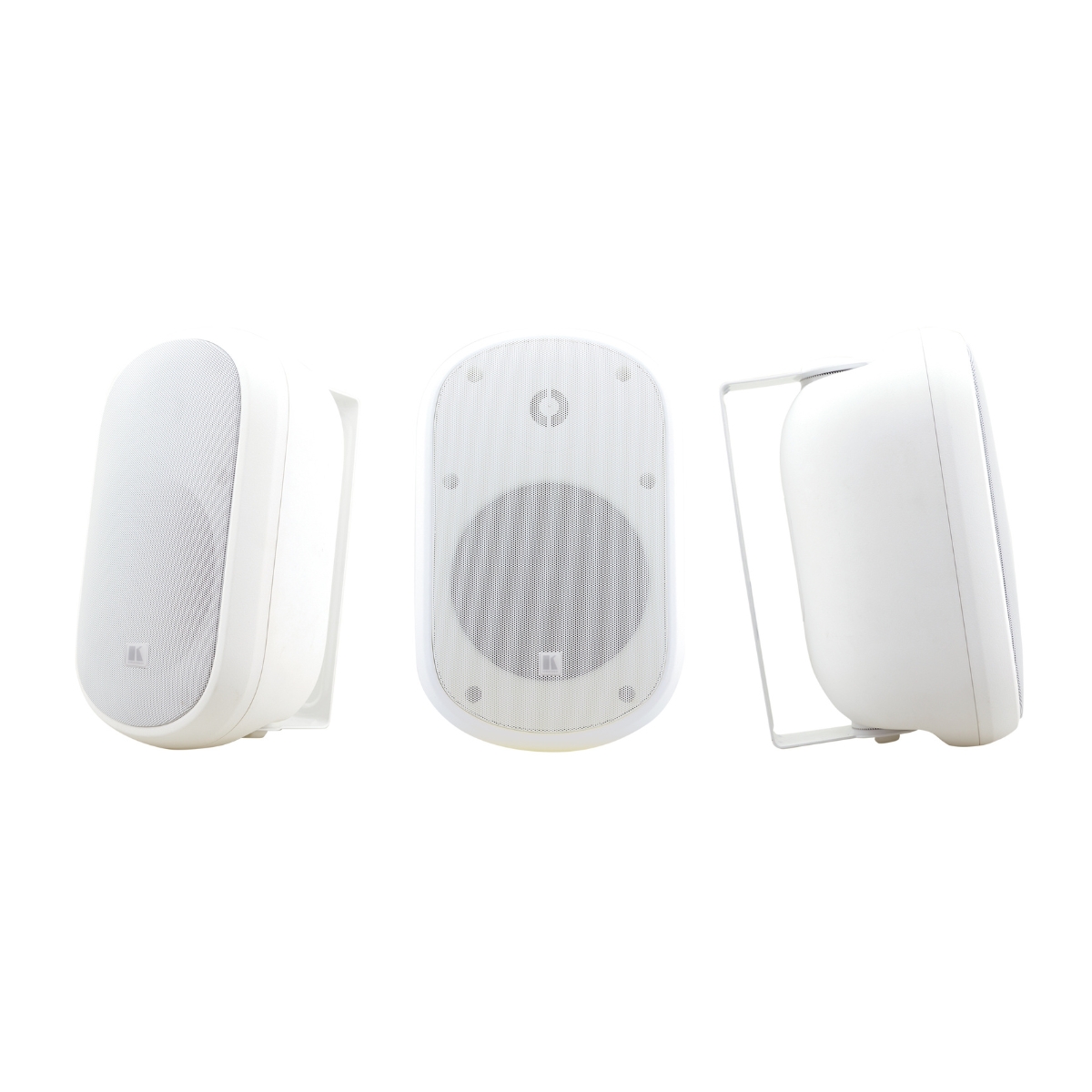

Galil 6-AW On–Wall Outdoor Speakers

The Galil 6-AW is an outdoor on-wall speaker featuring a multi-tap power transformer with selectable 8Ω, 70V, and 100V settings. Ideal for array installations and outdoor audio applications, it is available in white or black.

Contact to Seller
  • IP 66 Certified
  • Woofer — 6.5” polypropylene cone
  • Tweeter — 1” silk dome
  • Impedance — 8Ω
  • Power Handling — 30W RMS 80W Continuous
  • Transformer Taps — 70/100V
  • 2 Speakers (1 Pair)
  • All–weather Speaker
Download Product catalog
DESCRIPTION 2-way on-wall speakers
FREQUENCY RESPONSE 65Hz to 20kHz @−10dB, 80Hz to 20kHz @±3dB
WOOFER 6.5” (165mm) polypropylene cone with rubber surround
TWEETER 1” (25mm) silk dome
IMPEDANCE 8Ω (transformer tap in off position)
TRANSFORMER TAPS 70V – 30W/15W/7.5W/3.7W/Off (Lo−Z), 100V – 30W/15W/7.5W/Off (Lo−Z)
SENSITIVITY 85dB+/−3db@15W−1m
MAX SPL Continuous: 102dB, peak: 105dB
POWER HANDLING 30W RMS, 80W continuous program
