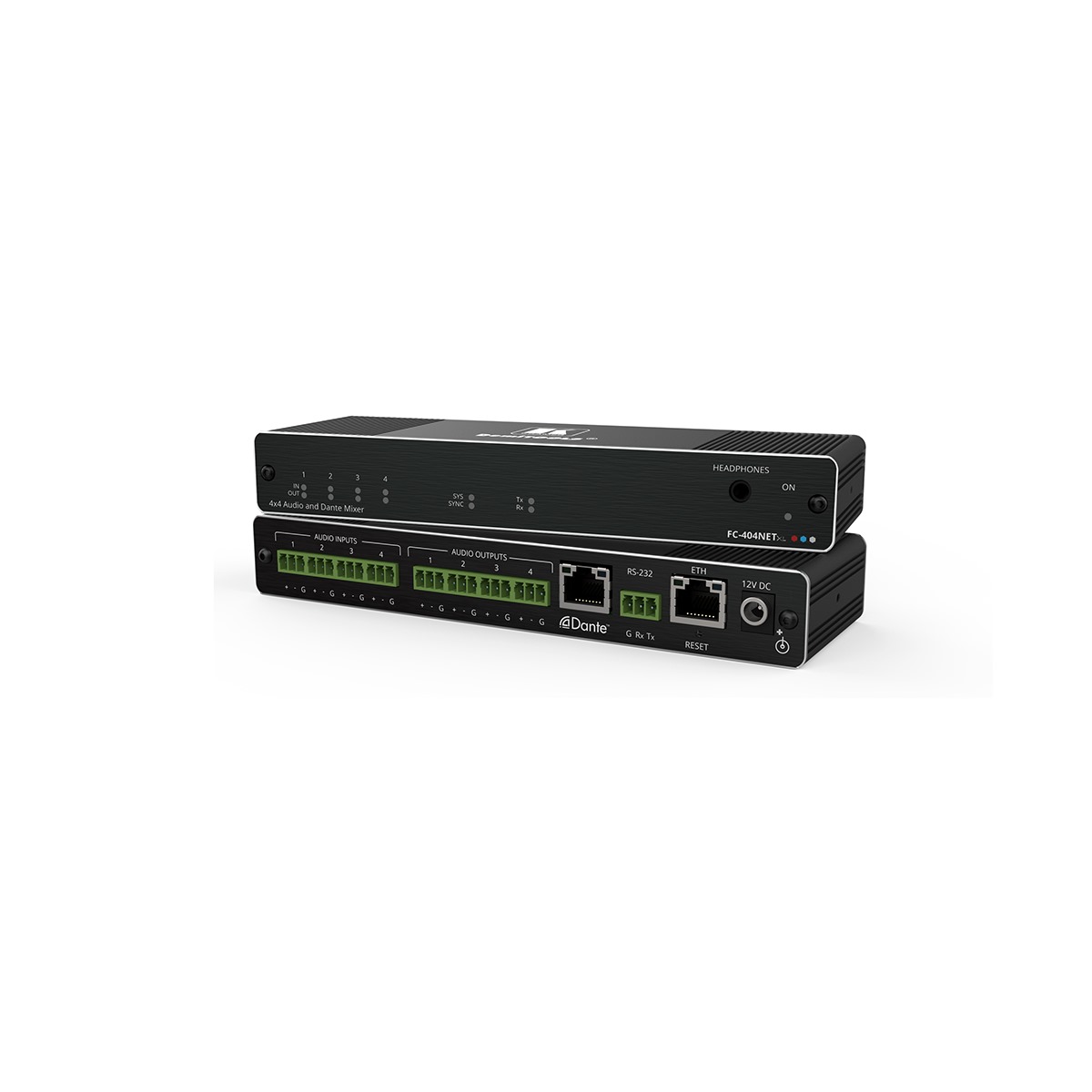

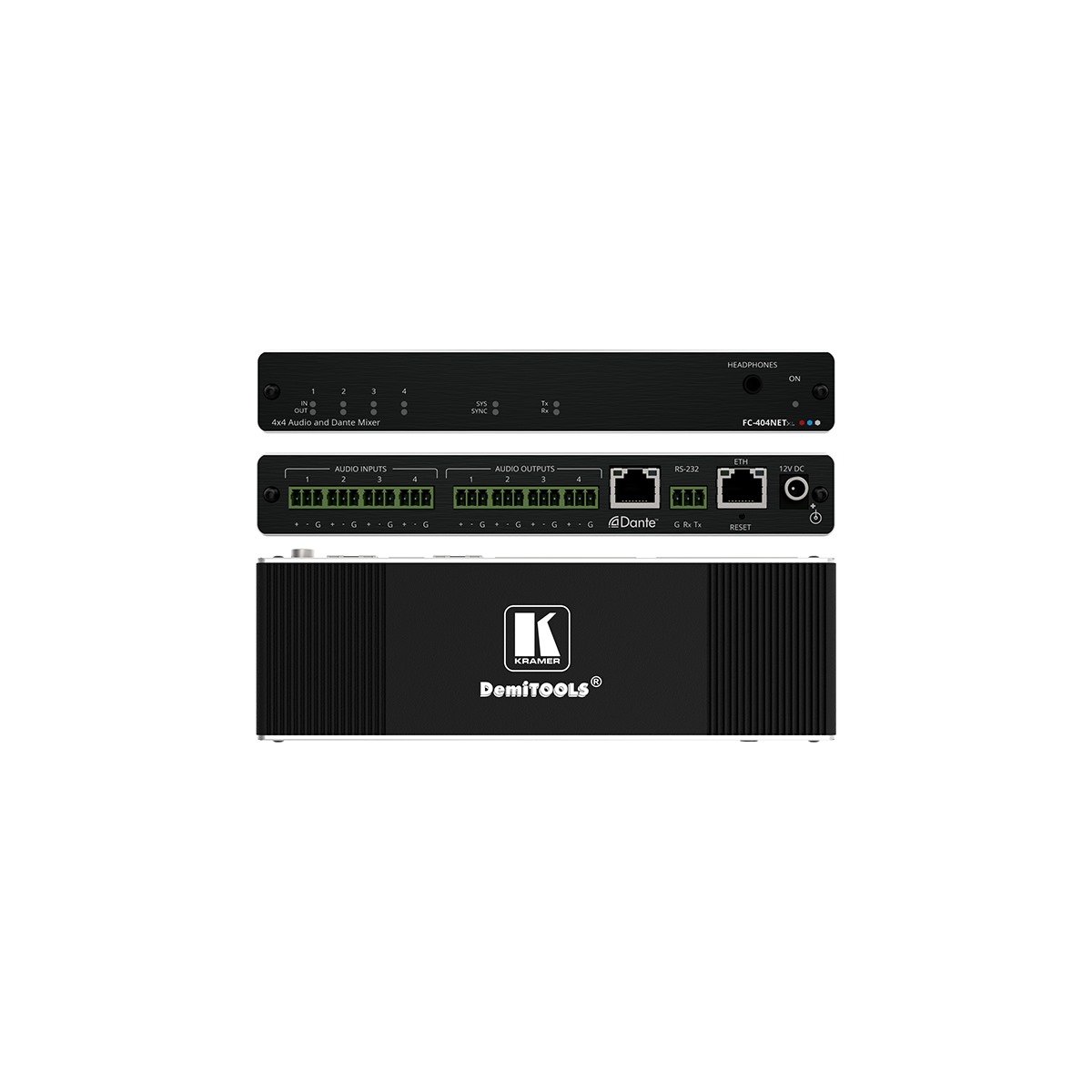

FC-404NETxl 4x4 Audio and Dante Mixer

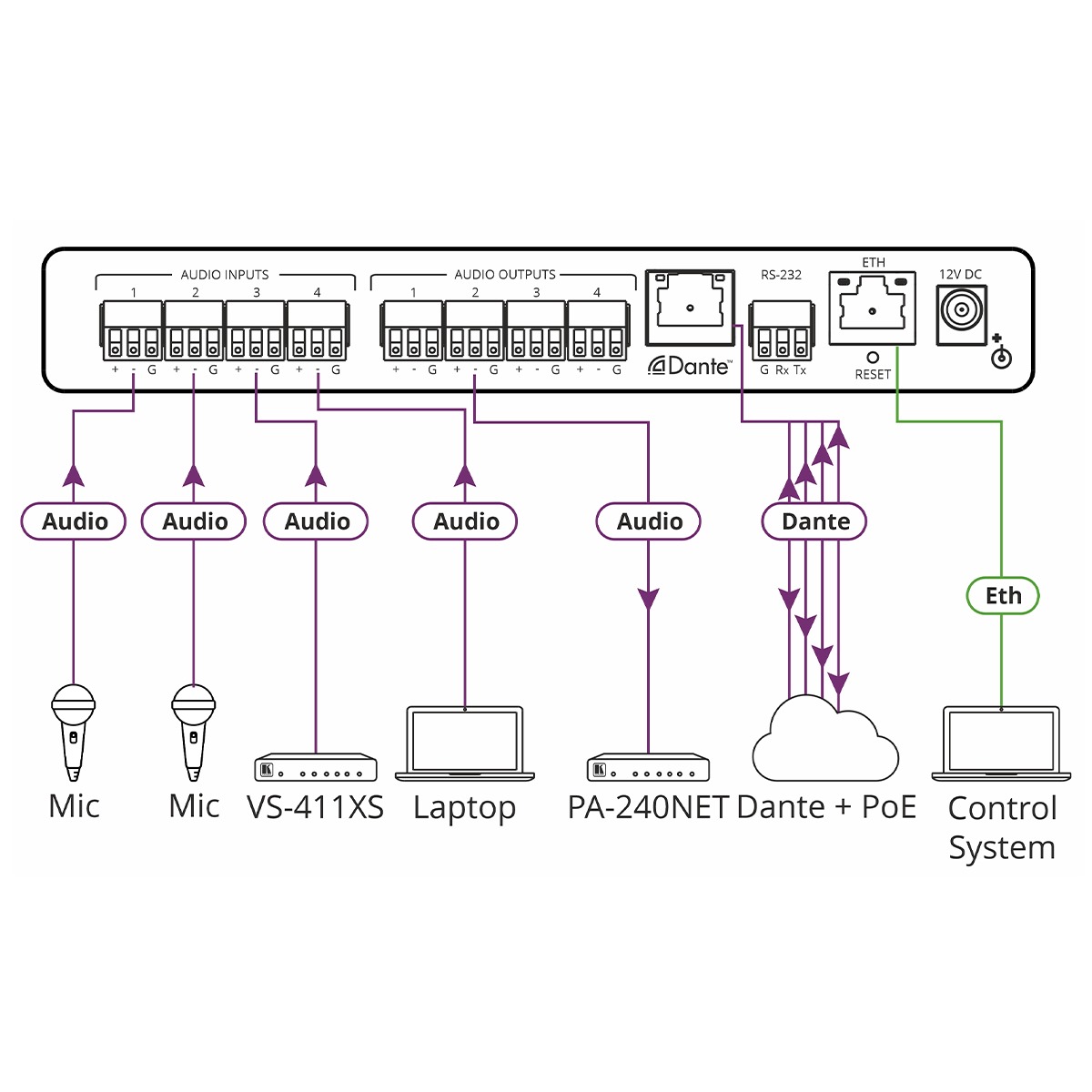

The FC-404NETxl is a hybrid analog and Dante audio cross-connect mixer that routes and mixes analog line/microphone inputs and Dante audio-over-IP channels. It supports flexible audio distribution to analog output lines and Dante network output streams, making it suitable for professional audio integration systems. The device is powered via Power over Ethernet (PoE) through its network connection.

Contact to Seller
  • 4–port audio and 4–port Dante cross–connect mixer.
  • Individual media and service IP ports.
  • IP-controlled and managed.
Download Product catalog
Inputs 4 Balanced Mono Audio Line/Mic: On 3−pin terminal block female connectors
Outputs 4 Balanced Mono Audio Line: On 3−pin terminal block female connectors
Ports 1 Dante Ethernet Network: On an RJ−45 female connector for 4 audio input channels and 4 output streams
BALANCED LINE LEVEL INPUT Impedance: 50kΩ
MICROPHONE LEVEL INPUT

Impedance: 10kΩ

Maximum Level (Dynamic): 23mVrms Maximum Level (Condenser): −10dBu Sensitivity: Full power @ +10dBu (2.4Vrms) Phantom Power: 48VDC on/off per input
Line Level Output Impedance Balanced: 500Ω Maximum Level: +15dBu Frequency Response: 20Hz − 20kHz, ±0.1dB
Extension Line Audio THD + Noise: <0.03% 20Hz — 20kHz at unity gain Crosstalk: <–85dB, 20Hz to 20kHz
Digital Channels Dante Sample Rates: 44.1,48 (default), 88.2, 96kHz AES67 Sample Rate: 48kHz
Indication LEDs 4 Input signal/clipping LEDs, 4 Output signal/clipping LEDs, 1 Sys LED, 1 Sync LED, 1 Tx LED, 1 Rx LED, 1 Power on LED
Power Consumption: 12V DC, 300mA Source: 12V DC, 2A, PoE−acceptor
