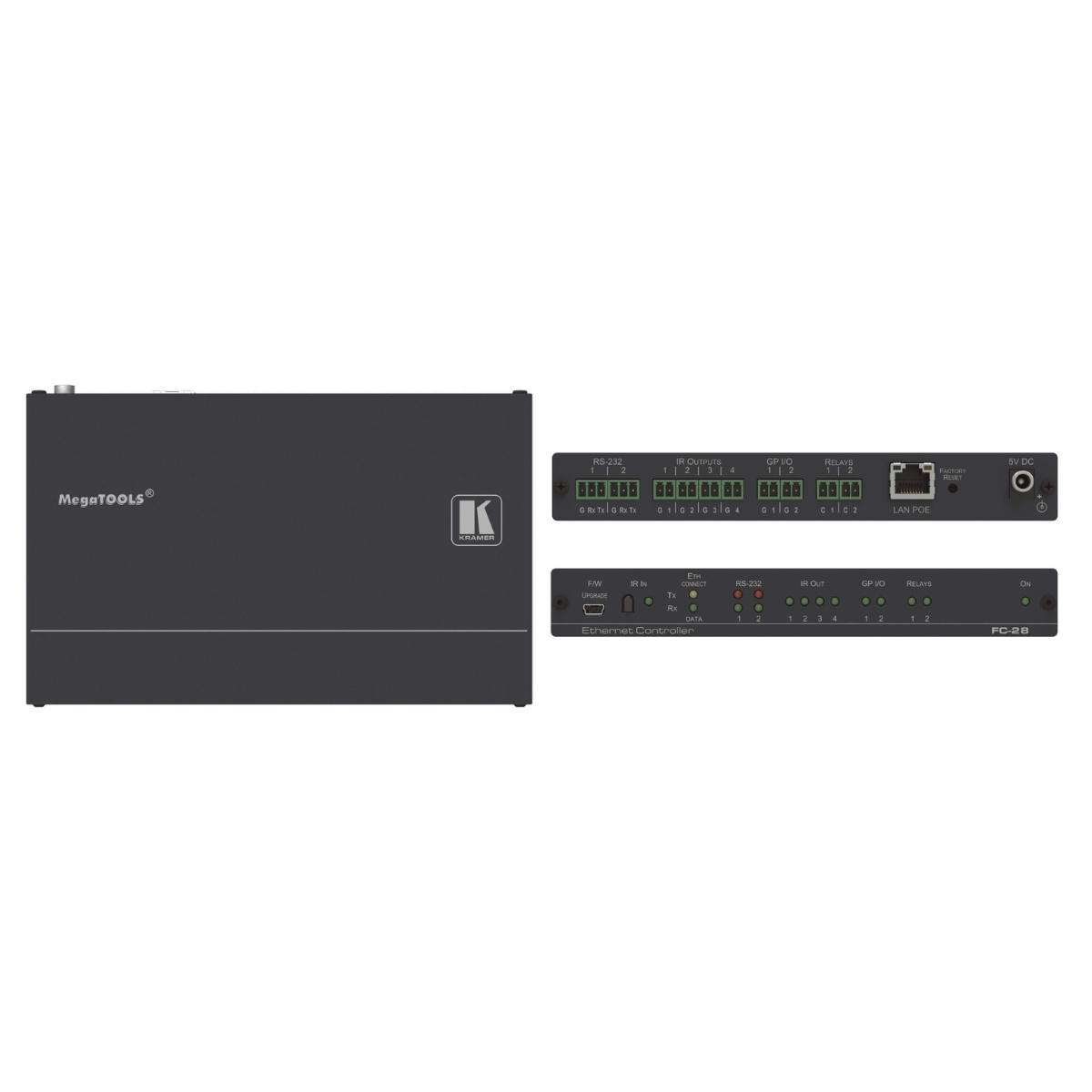

FC-28 10–port Serial, IR, GPI/O and Relay

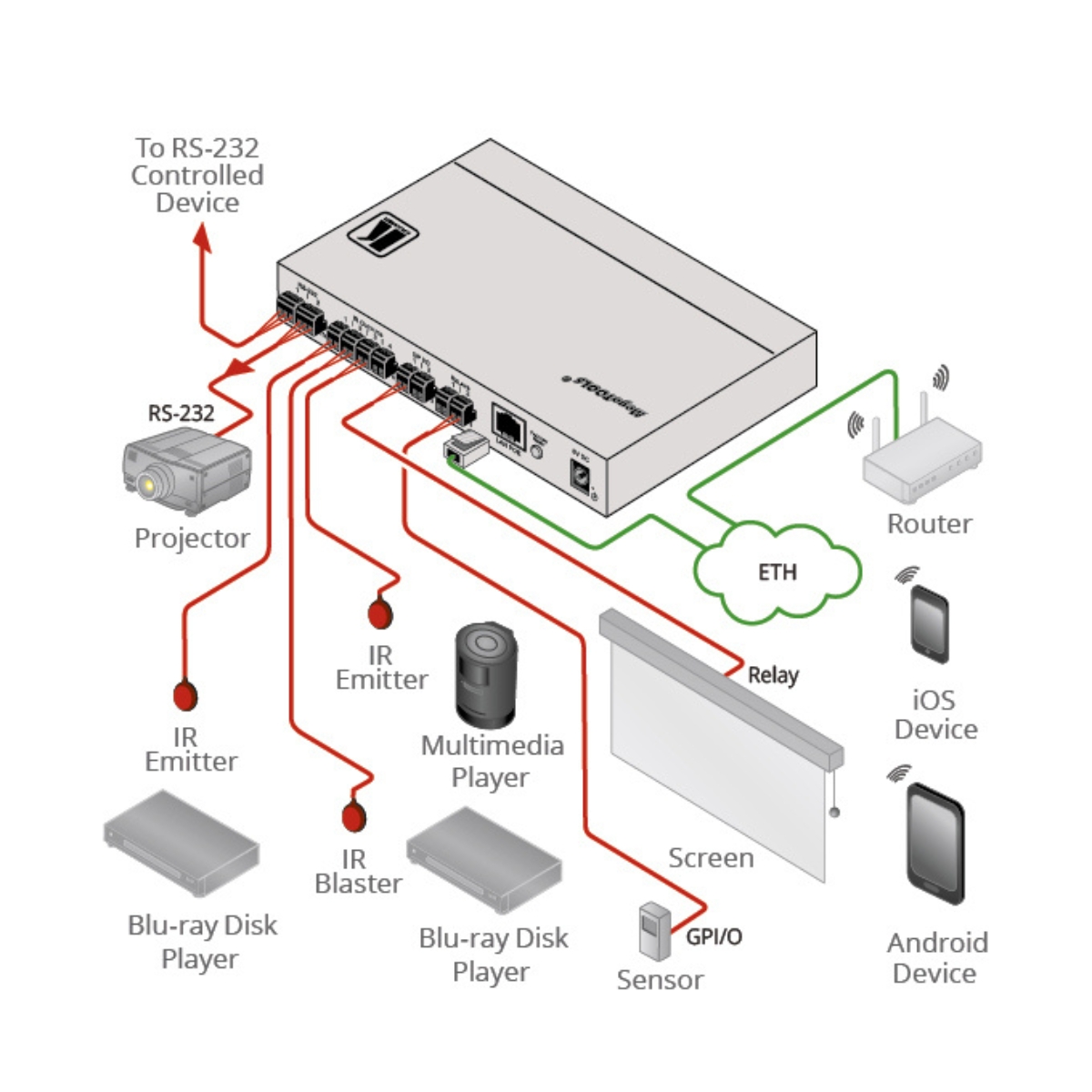

The FC-28 is a PoE-powered control gateway that enables remote control of devices over an Ethernet LAN. It supports bidirectional RS-232, IR, GPI/O, and relay connections, allowing multiple control clients to operate two RS-232 and four IR-controlled devices simultaneously. It is ideal for controlling AV scalers, displays, audio amplifiers, DVD players, sensors, screens, shades, door locks, and lighting systems.

Contact to Seller
  • 2 Bidirectional RS–232 ports
  • 4 IR emitter ports
  • 2 GPI/O ports
  • 2 Relay ports
  • 1 IR sensor for learning
  • 1 Ethernet port
  • Built–in control and support for web pages
  • PoE powering
Download Product catalog
OUTPUTS 4 IR & relays on 2−pin terminal blocks
PORTS 2 RS−232 serial on 3−pin terminal blocks, 2 GPI/O on 2−pin terminal blocks, 1 Ethernet on an RJ−45 connector, 1 mini USB connector for local services, 1 built−in IR sensor (for learning)
SUPPORTED SERIAL PORT BAUD RATES 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION Transparent up to 115200bps
IR EMITTER CABLE RANGE 80m (260ft)
SUPPORTED IR INPUT FREQUENCIES 20kHz to 60kHz
SUPPORTED IR OUTPUT FREQUENCIES 20kHz to 1.2MHz
MAXIMUM DATA HANDLING OF DEVICE Up to 150kbps summed on all ports
POWER CONSUMPTION 5V DC, 230mA
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE –40° to +70°C (–40° to 158°F)
HUMIDITY 10% to 90%, RHL non-condensing
