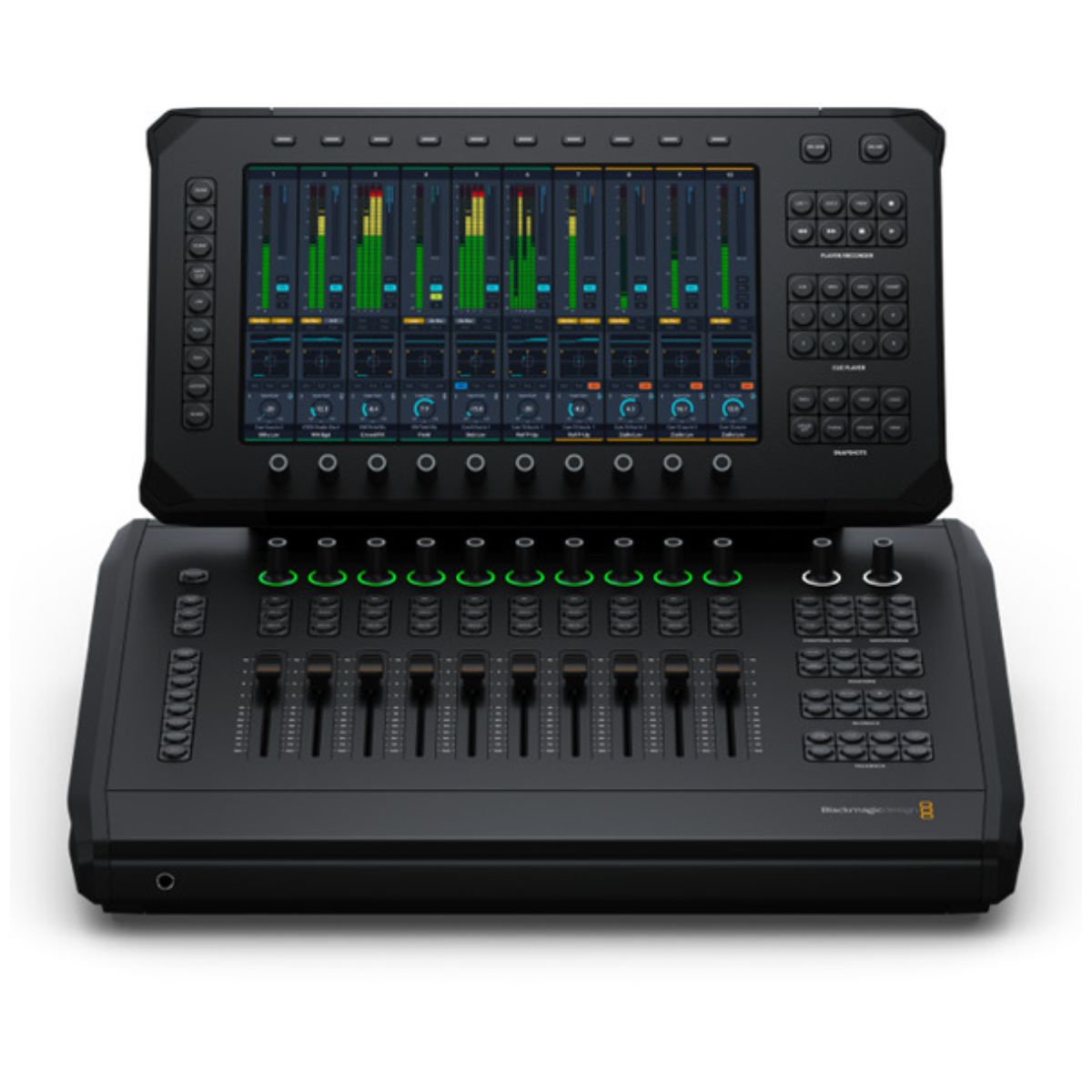

Fairlight Live Audio Panel 10 is a desktop control surface with 10 motorized faders and a large touchscreen display, designed for professional live audio mixing with Fairlight Live. Controls include layers, bus, matrix, aux, VCA, sub-masters and talkback for fast hands-on access to your mix. The touchscreen displays channel strip information, levels, EQ, dynamics processing, and plug-in interfaces. Ideal for home studios and small suites. Fully integrated with Fairlight Live.
Controls
|
Channel Faders |
10 flying faders. |
|
Channel Rotary Knobs |
10 multi-function rotary knobs with ring LED indicators. |
|
Channel Control Buttons |
Select, Solo and Mute for each channel. |
|
Channel Focus |
Processing and input controls for the selected channel. |
|
Contextual Rotary Knobs |
10 rotary knobs to adjust associated parameters appearing on the lower row of focus and view screens. |
|
Contextual Buttons |
10 buttons to activate functions or adjust parameters appearing on the upper row of focus and view screens. |
|
On Line Button |
Online mode follows timecode from an external source. |
|
On Air Button |
On Air mode locks the panel. |
|
Player/Recorder Keypad |
Controls for the Player/Recorder support recording performances/rehearsals and playback for Virtual Sound Checks |
|
Cue Player Keypad |
Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices. |
|
Snapshots Keypad |
Store and recall mixer settings and configurations. |
|
Masters Keypad |
Controls for master views and enabling masters on faders. View Only selection sends metering views to the screen; when off, selection targets faders. |
|
Globals Keypad |
Global controls include forward, back, undo, and escape, plus access to the setup screen and 3 x USER-defined buttons. |
|
Talkback Keypad |
Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access to the talkback setup screen. |
Display
|
Built-in Display |
1 x 11.6 inch 1920 x 1080 LCD touch screen. |
|
HDMI Out |
HD or Ultra HD |
|
Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
Connections
|
2110 IP Video and Audio Networks |
2 x 10G RJ45 Ethernet connections. |
|
Senders and Receivers per 10G Pair |
Supports 2110 IP video and audio plus analog audio in and out of panel. |
|
1G Control Network |
1 x 1G RJ45 for computer connection, configuration and software updates. |
|
HDMI Monitor Outputs |
1 |
|
Analog Audio Inputs |
1 x 3-pin XLR for mic level analog audio. 1 x 5-pin XLR for talkback headset. |
|
Analog Audio Outputs |
2 x 3-pin XLR for line level analog audio. 1 x 5-pin XLR for talkback headset. 2 x 6.35mm headphone jacks. |
|
Computer Interface |
1 x USB Type‑C for computer connection, software configuration and software updates. |
|
HDMI Video Output |
1 x HDMI Type A. |
|
Power |
1 x IEC C14 power input. 1 x 4-pin XLR 12V DC power input. |
