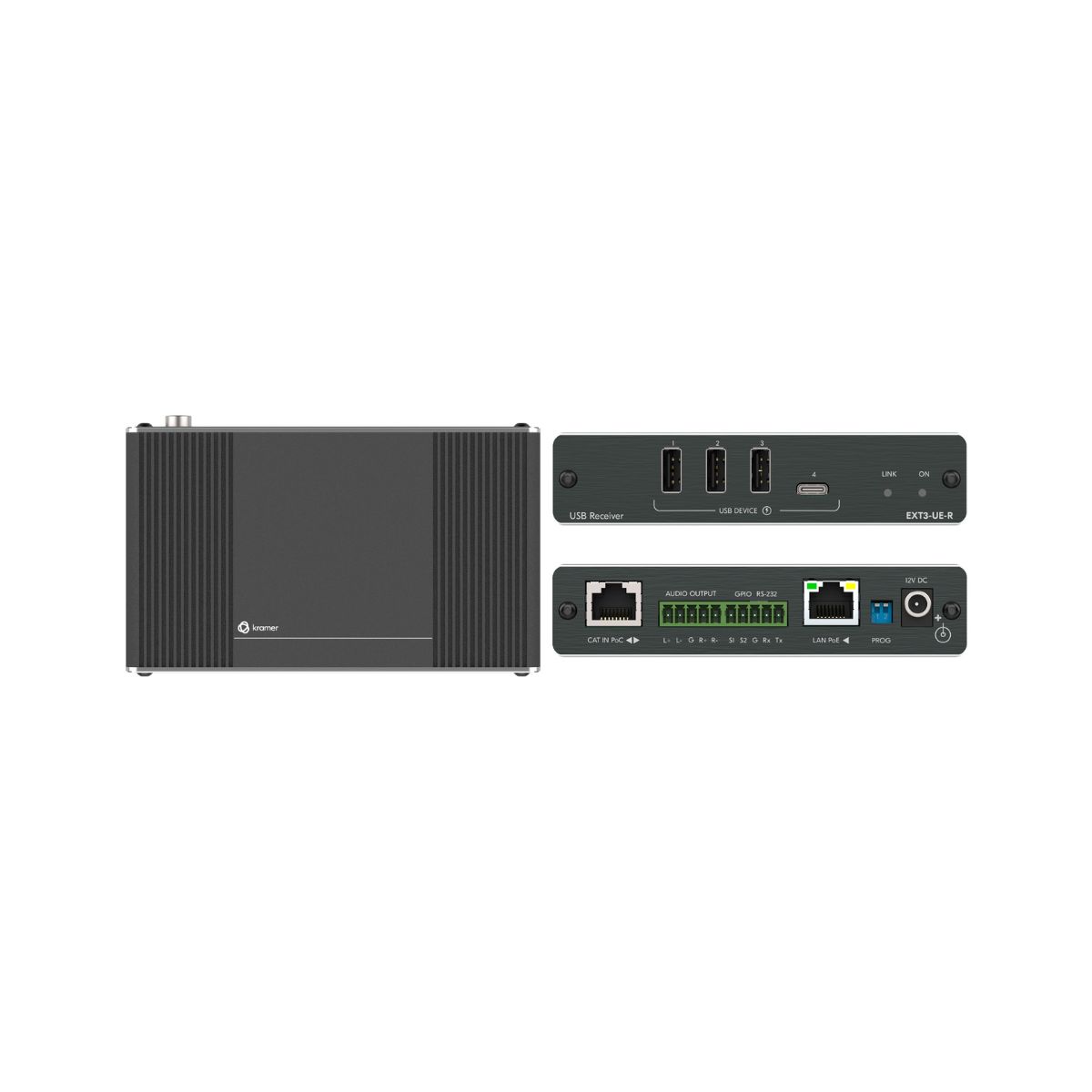

EXT3-UE-R

EXT3−UE−R is a comprehensive 2−way powering USB 2.0 receiver over an extended−reach twisted pair CAT cable. The receiver converts the transmitted CAT signal into USB 2.0, Ethernet, RS−232, and audio signals.

Contact to Seller
  • 4–port remote USB devices
  • Ethernet and audio extension
  • Up to 100m (330ft) CAT extension reach
  • Two–way PoC powering
Download Product catalog

Inputs
  • 1 CAT: On an RJ–45 female connector for extension line

Outputs
  • 1 Stereo Analog Balanced Audio: On a 5–pin terminal block for audio extension

Ports
  • 3 USB 2.0 Devices: On USB–A female connectors
  • 1 USB 2.0 Devices: On a USB–C female connector
  • 1 PoE-accepting Ethernet: On an RJ–45 female connector for LAN connection and extension over CAT link
  • 1 RS–232: On a 3–pin terminal block

Power
  • USB Device Charging:
    Max. Total Current: [Device powered via HDBT PoC]: 0.5A
  • Power Adapter:
    Source: 12V DC/2A (not included)
  • Consumption: 1.1A
  • Max. Power: 12W

Extension Line
  • Reach: Up to 100m (330ft)
  • Reach: Note: When using Kramer cables

Extended USB
  • Data Rate: Up to 480Mbps
  • Integrated USB Hubs: 1
  • Transmitted Data Bandwidth: Up to 300Mbps
  • Standards Compliance: USB 2.0 and 1.1
