DTAxr-OUT2-F16

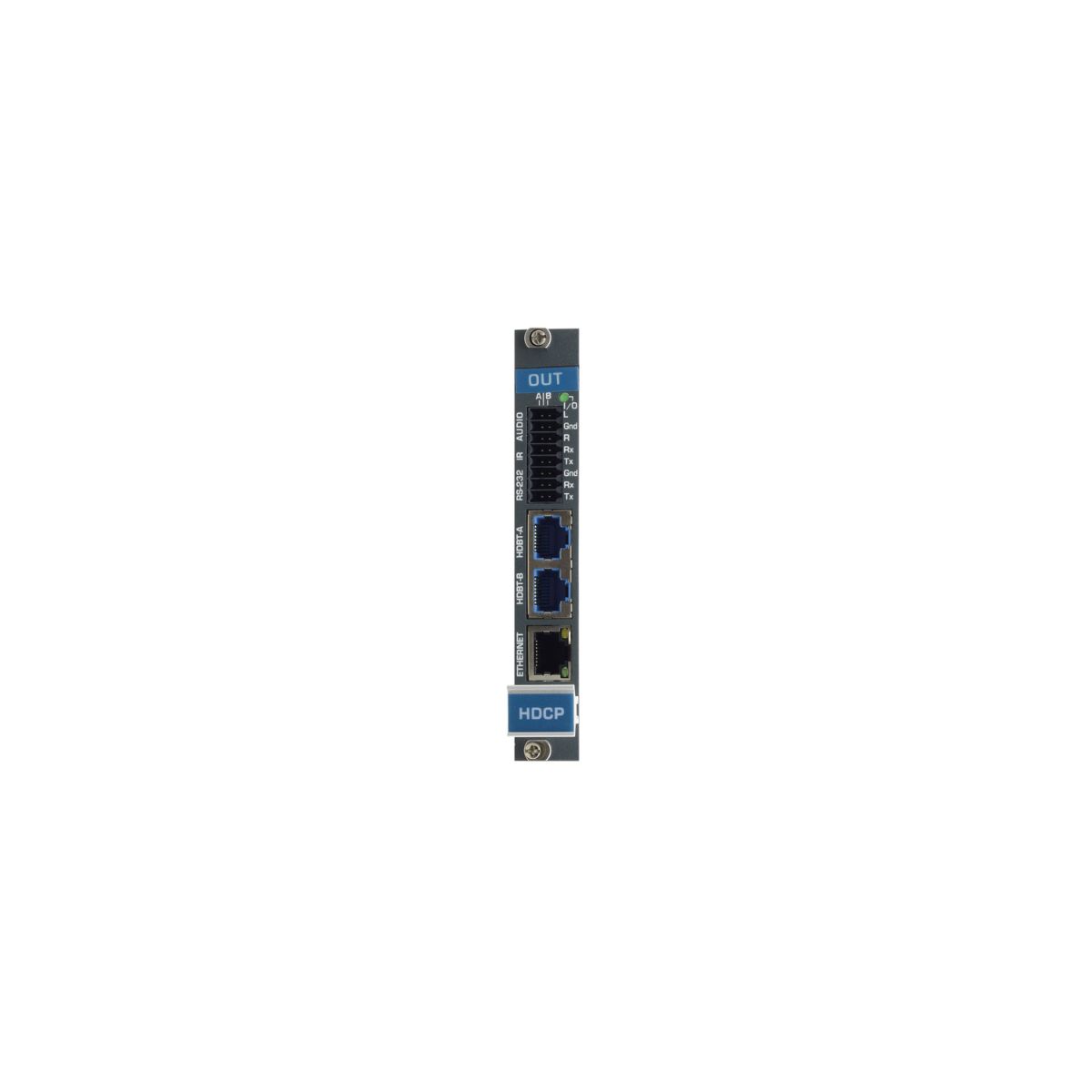

DTAxr−OUT2−F16 is a two−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT2−F16 outputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  Max. Resolution — 4K@60Hz (4:2:0).
  •  Analog Audio Embedding/De–embedding — On the same jack
  •  HDBaseT Technology — HDTV compatible, HDCP compliant.
  •  System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
Download Product catalog

Outputs
  • 2 HDBaseT TP on RJ–45 connectors
  • 2 Unbalanced audio on a 16 pin terminal block

Ports
  • 2 RS–232 and 2 IR on a 10 pin terminal block for bidirectional RS–232 and IR extension
  • 1 Ethernet on an RJ–45 connector for bidirectional Ethernet extension

BANDWIDTH PER CHANNEL
  • Video: 3.4Gbps
  • Serial Data: 115200

TOTAL BANDWIDTH
  • Video: 10.2Gbps
  • Serial Data: 115200

MAXIMUM RANGE
  • Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp)
  • Note: When using Kramer HDBaseT cables

3D PASS THROUGH
  • Supported
