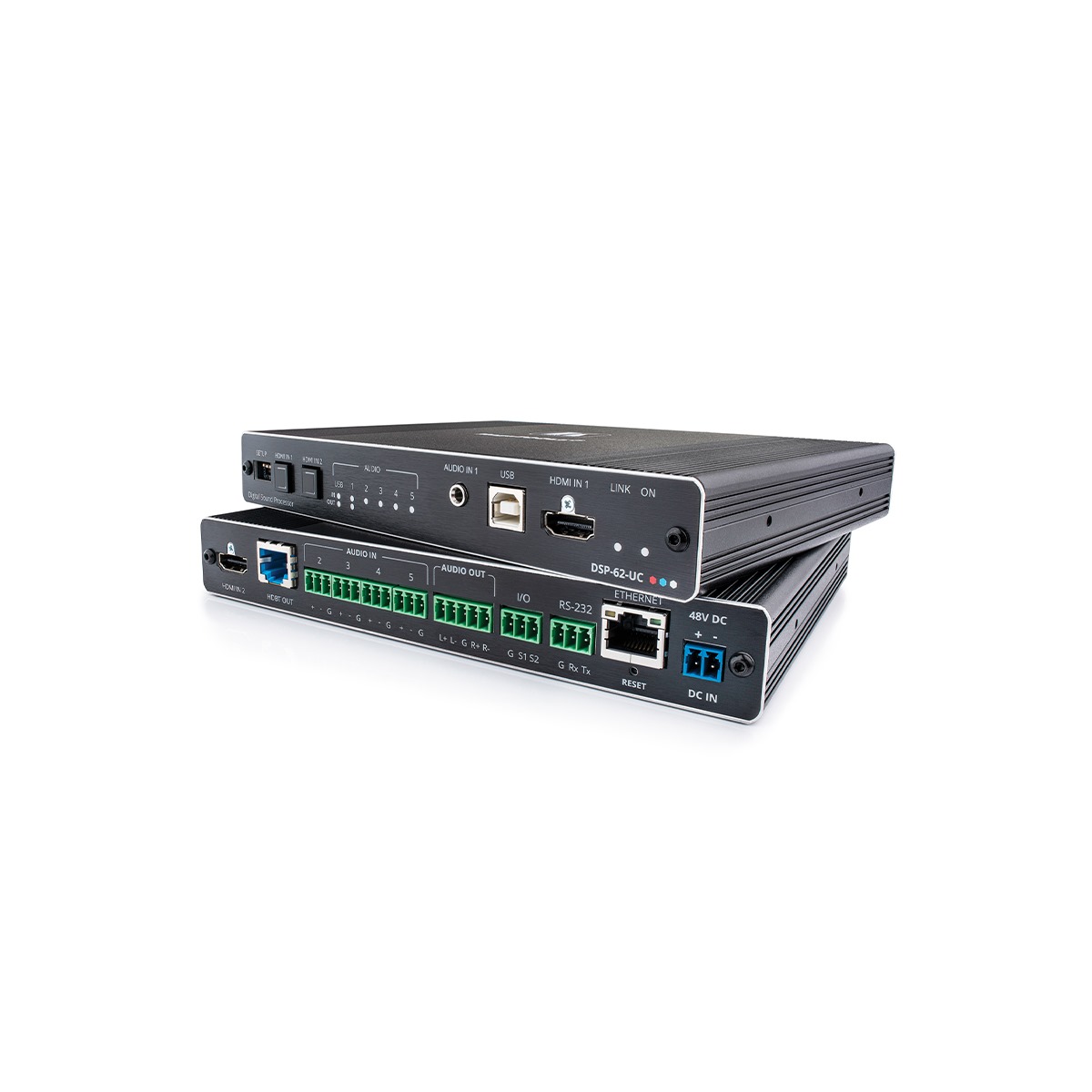

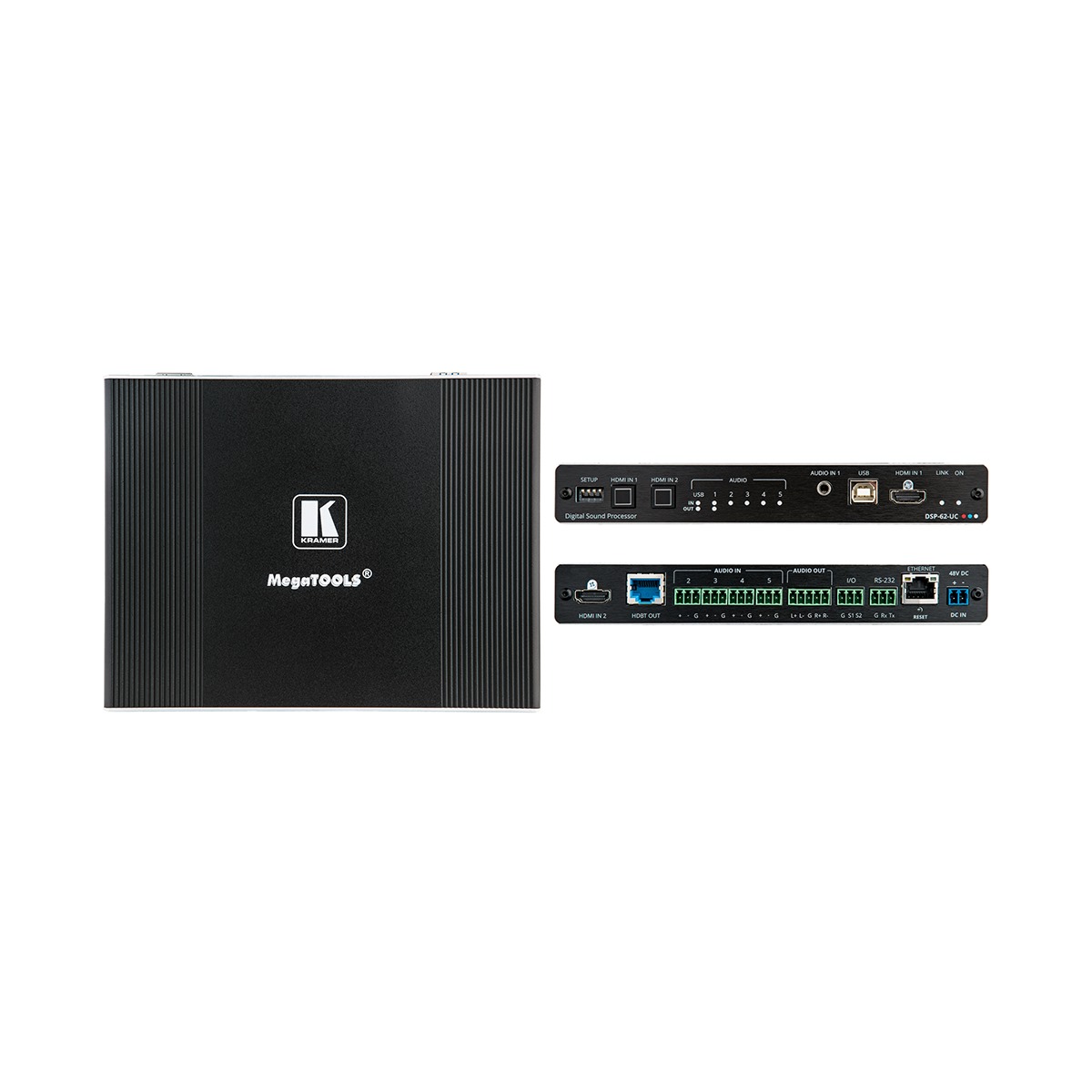

The DSP-62-UC is a professional 6×2 audio matrix switcher from Kramer’s XSPerience DSP family, featuring multi-channel digital signal processing (DSP), Acoustic Echo Cancellation (AEC), HDMI audio de-embedding, and a class-compliant USB audio interface. Its user-friendly graphical interface simplifies audio system configuration and management for professional applications.
- Multi–Channel DSP
- AEC (Acoustic Echo Cancellation)
- Video and USB peripheral extension over HDBaseT
- Intuitive and Comprehensive Configuration and Control
- HDMI audio de–embedding
- Class-compliant USB audio interface
| Inputs |
2 HDMI: On female HDMI connectors 4 Balanced Mono Audio: On 3–pin terminal blocks 1 Unbalanced Stereo Audio: On a 3.5 mm mini-jack |
| Outputs |
1 Balanced Stereo Audio: On a 5−pin terminal block connector 1 HDBaseT: On an RJ−45 connector |
| Ports |
1 USB Audio: On a female mini USB–B connector 1 RS-232: On a 3–pin terminal block 1 Ethernet: On an RJ–45 female connector |
| Line/Mic Level Input | Impedance Unbalanced: 7.6kΩ Impedance Balanced: 3.8kΩ Impedance Microphone: 3.8kΩ |
| Video |
Max Bandwidth 10.2Gbps (3.4Gbps per graphic channel) Max Resolution: 4K@60Hz (4:2:0) Compliance: HDMI and HDCP 2.2 |
| User Interface |
Indicators: Power and audio port status LEDs Controls: Input selection buttons |
| Control RS-232 | Baud Rate: 115200 |
