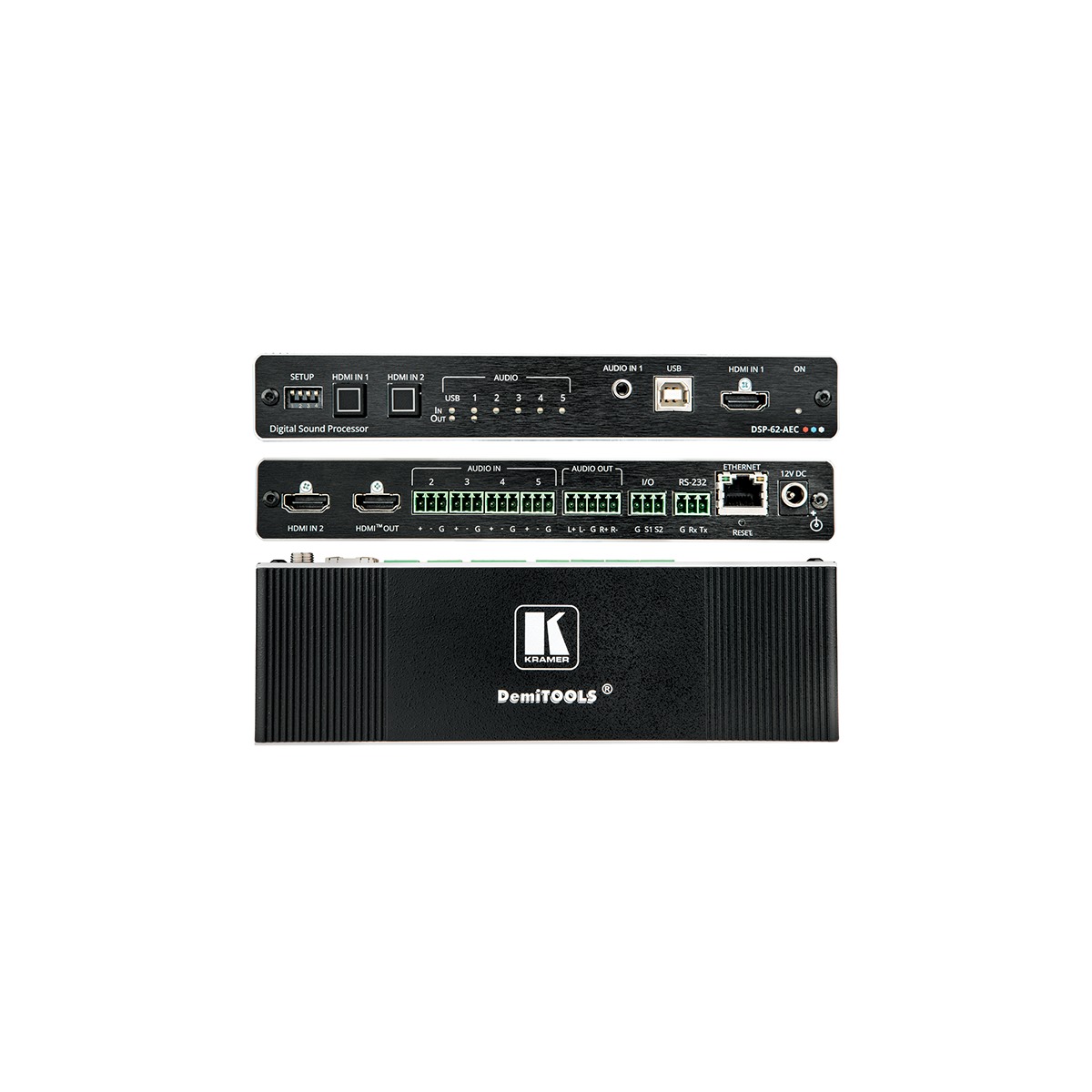

DSP-62-AEC Audio Matrix with DSP and AEC
The DSP-62-AEC is a professional 6×2 audio matrix switcher from Kramer’s XSPerience DSP family, featuring multi-channel DSP, Acoustic Echo Cancellation (AEC), HDMI audio de-embedding, and a class-compliant USB audio interface. Its user-friendly graphical interface simplifies audio configuration and management for professional audio applications.
- Multi–Channel DSP
- AEC (Acoustic Echo Cancellation)
- Intuitive and Comprehensive Configuration and Control
- HDMI audio de–embedding
- Class-compliant USB audio interface
| Inputs |
2 HDMI: On female HDMI connectors 4 Balanced Mono Audio: On 3–pin terminal blocks 1 Unbalanced Stereo Audio: On a 3.5 mm mini-jack |
| Outputs |
1 Balanced Stereo Audio On a 5−pin terminal block connector 1 HDMI: On a female HDMI connector |
| Ports | 1 USB Audio: On a female mini USB–B connector 1 RS-232: On a 3–pin terminal block 1 Ethernet: On an RJ–45 female connector |
| Line/Mic Level Input | Impedance Unbalanced: 7.6kΩ Impedance Balanced: 3.8kΩ Impedance Microphone: 3.8kΩ |
| Line Level Output | Impedance Unbalanced / Balanced:500Ω Frequency Response:20Hz − 20kHz @ +/−1dB S/N Ratio: >85dB, 20Hz − 20kHz, at unity gain (unweighted) Audio THD + Noise: <0.01%, 20 Hz − 20kHz, at unity gain Crosstalk: <−85dB, 20Hz to 20kHz |
| Video | Max Bandwidth: 18Gbps (6Gbps per graphic channel) Max Resolution: 4K@60Hz (4:4:4) Compliance: HDMI and HDCP 2.2 |
