DSP-1 Digital Sound Processor
The DSP-1 is a compact, cost-effective digital sound processor that enables IP-based control of individual input volumes, a 3-band parametric EQ, a selectable 70Hz high-pass filter, and master volume. It is ideal for a wide range of audio applications requiring flexible sound control and easy system management.
- 2–Input Mixing with Master Volume.
- 3–Band Parametric Equalizer — Frequency, Q–factor & gain control per band.
- High–Pass Filter — Selectable HPF at 70Hz.
- Line–Level Amplifier for Audio Gain and Attenuation.
- Control with Built–In Web Page & RS–232.
- Creates & Saves Presets.
- Highly Cost-Effective.

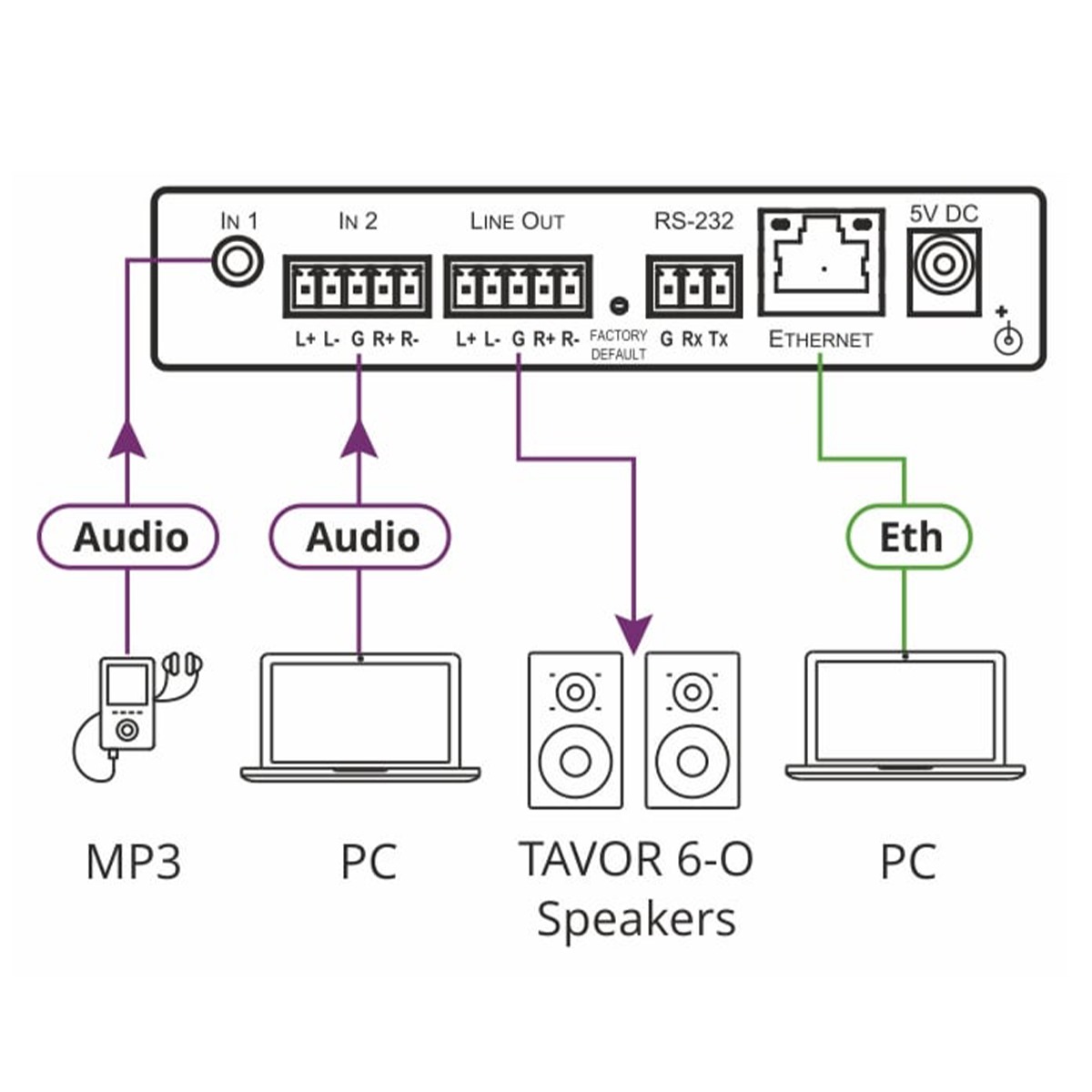

| Inputs |
1 Balanced Stereo Audio on a 5−pin terminal block connector 1 Unbalanced Stereo Audio on a 3.5 mm mini-jack |
| Outputs | 1 Balanced Stereo Audio on a 5−pin terminal block connector |
| Ports |
1 RS-232: On a 3−pin terminal block connector 1 Ethernet: On an RJ−45 connector |
| Power | Consumption: 5V DC, 350mA |
| Accessories | Included: Power supply, mounting bracket |
| Product Dimensions | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
| Product Weight | 0.2kg (0.4lbs) approx |
