DGKat-OUT8-F64

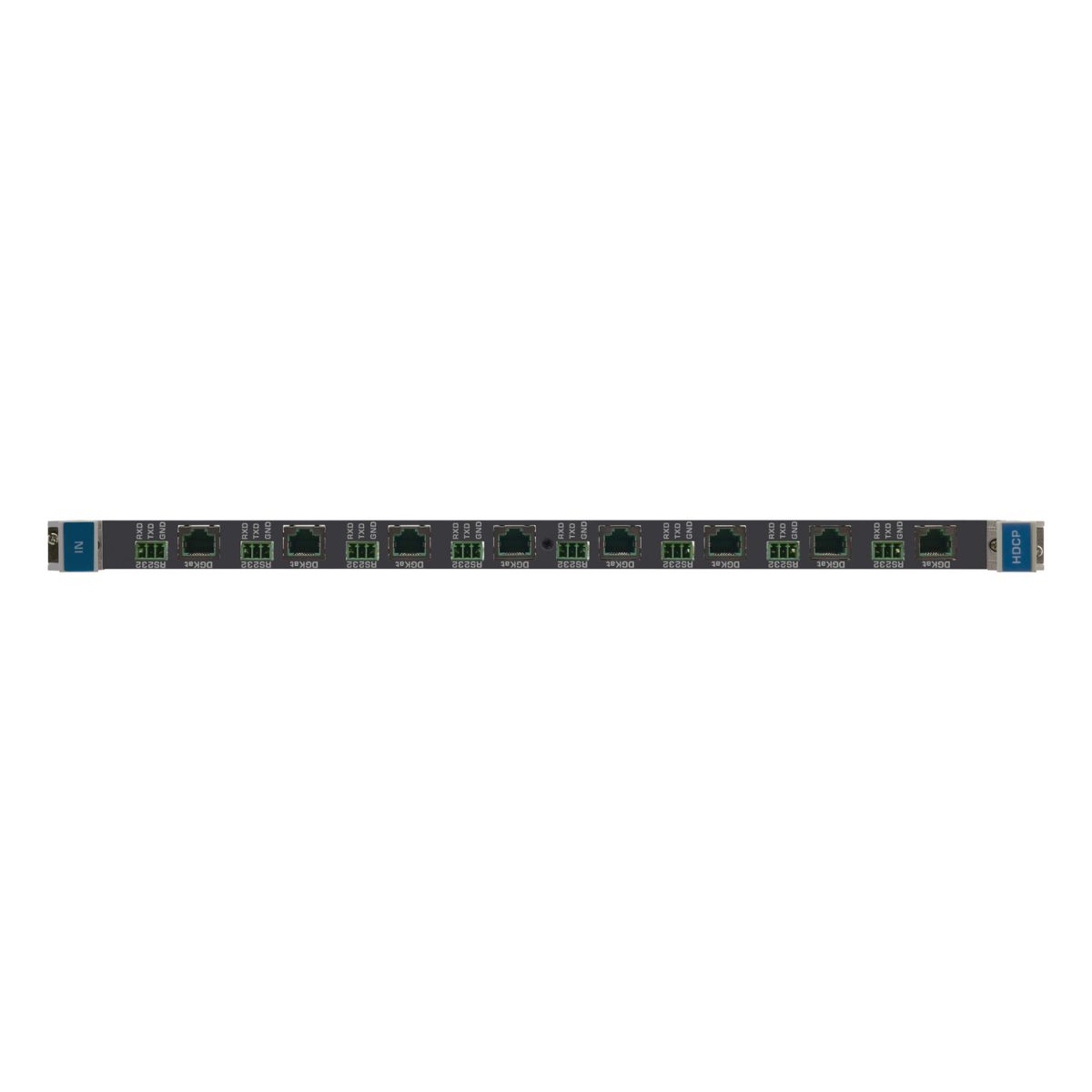

DGKat−OUT8−F64 is an eight−channel HDMI and RS−232 over DGKat twisted pair output card for the VS−6464 Series Modular Multi−Format Digital Matrix Switchers. The DGKat−OUT8−F64 outputs eight HDMI and RS−232 signals from the chassis.

Contact to Seller
  • Max. Data Rate — 4.95Gbps.
  •  System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
    Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  •  HDMI and HDCP Compliant.
  •  DGKat™ Signal Integration.
  •  3D Pass–Through.
Download Product catalog

OUTPUTS
  • 8 TP ports on RJ–45 connectors, 8 serial ports on 3–pin terminal blocks

BANDWIDTH PER CHANNEL
  • Video: 1.65Gbps
  • serial data: 19200

TOTAL BANDWIDTH
  • Video: 4.95Gbps
  • serial data: 19200

MAXIMUM RANGE
  • 90m (300ft) — 1080i@60Hz

Power Consumption
  • 45W

3D PASS THROUGH
  • Supported
