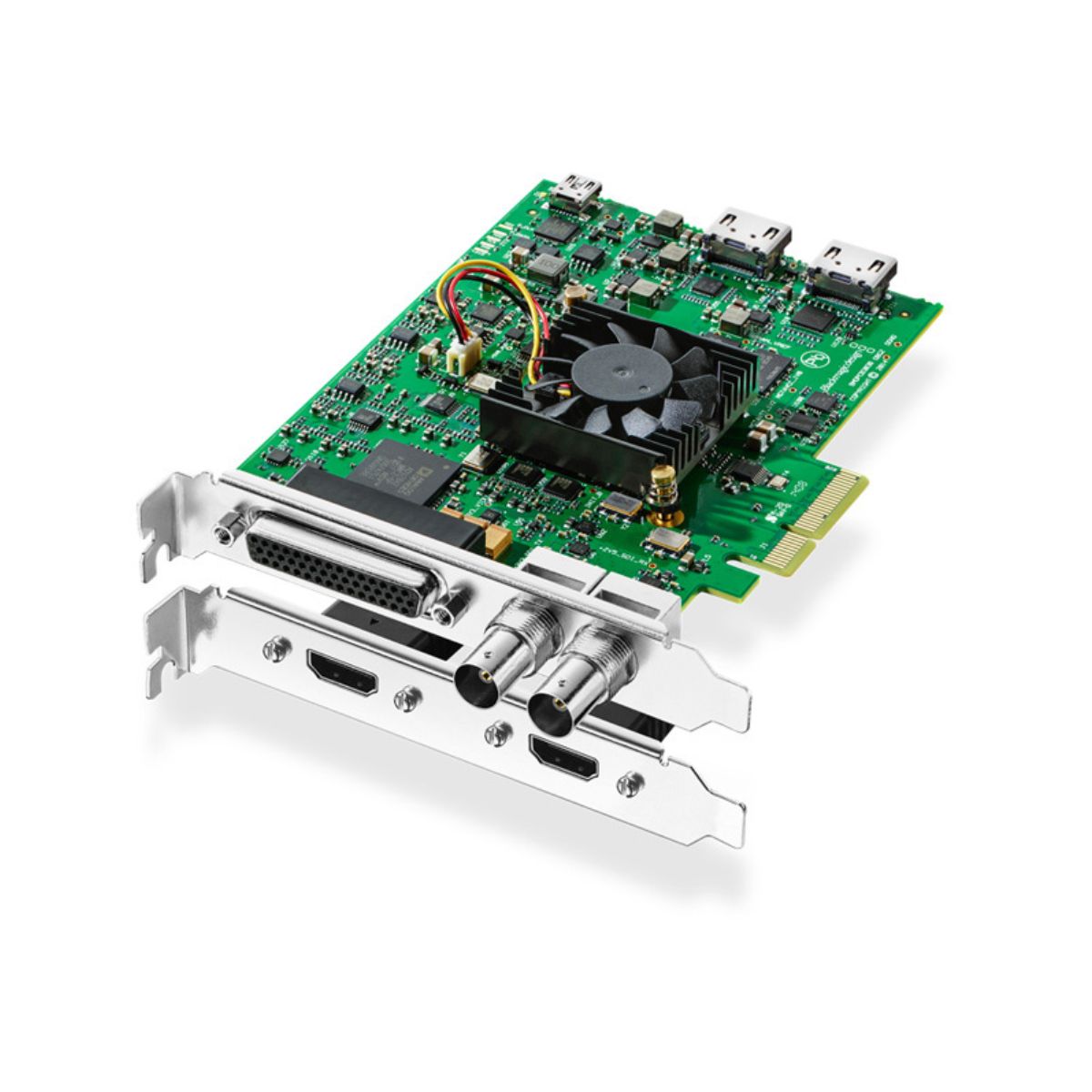

If you work with a wide range of analog video and audio gear and need to move seamlessly between SD, HD, 2K, and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD, and a hardware down converter. Perform editing, painting, and broadcast design, and more with the ultimate future-proof design!
|
HD Down Conversion |
Built-in, high-quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles. |
|
HD Up Conversion |
Built-in, high-quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. |
|
Cross Conversion |
Software-based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. |
|
Real Time Effects |
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
|
Colorspace Conversion |
Hardware-based real-time. |

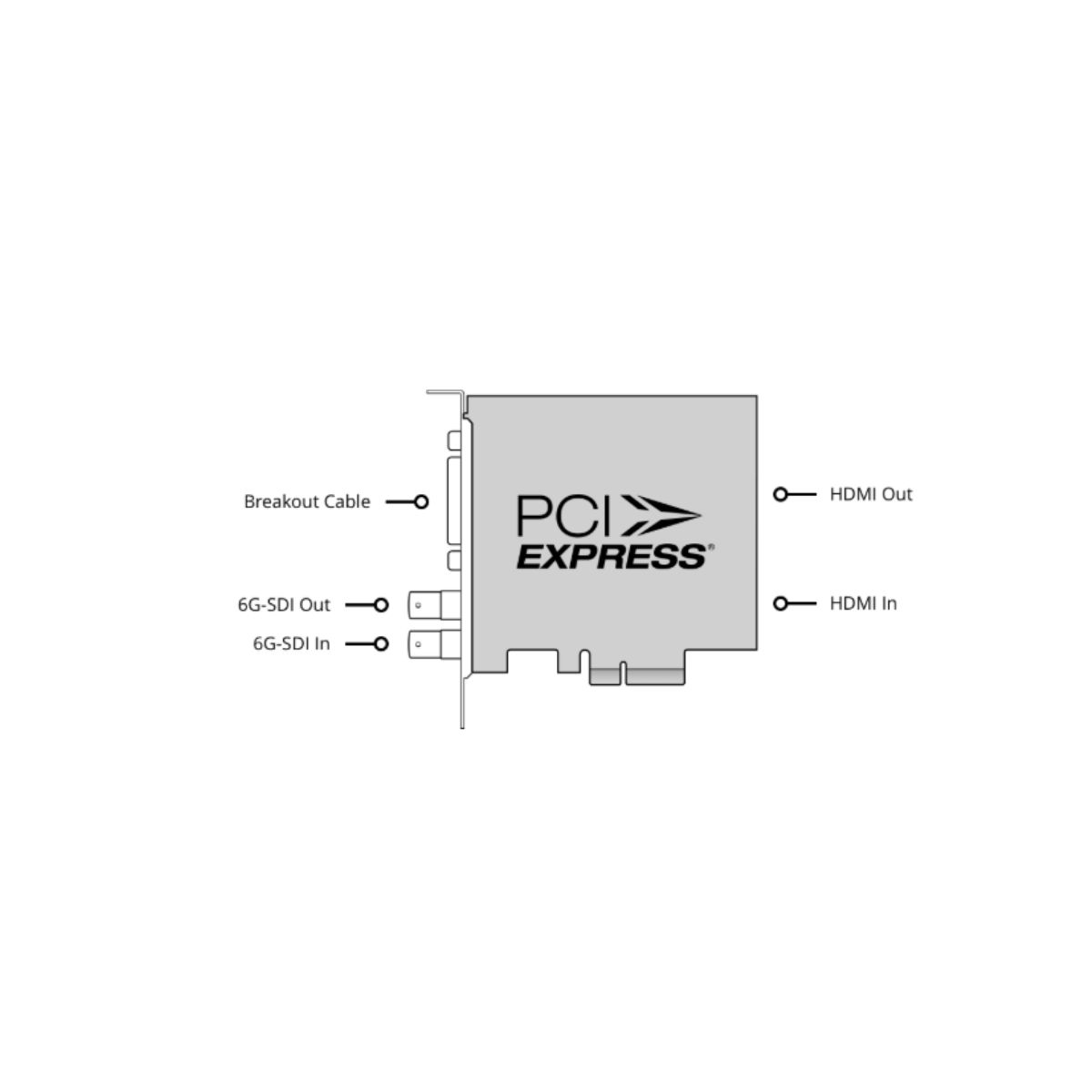

Connections
|
SDI Video Inputs |
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. |
|
SDI Video Outputs |
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. |
|
Analog Video Inputs |
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. |
|
Analog Video Outputs |
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. |
|
Analog Audio Inputs |
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. |
|
Analog Audio Outputs |
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. |
