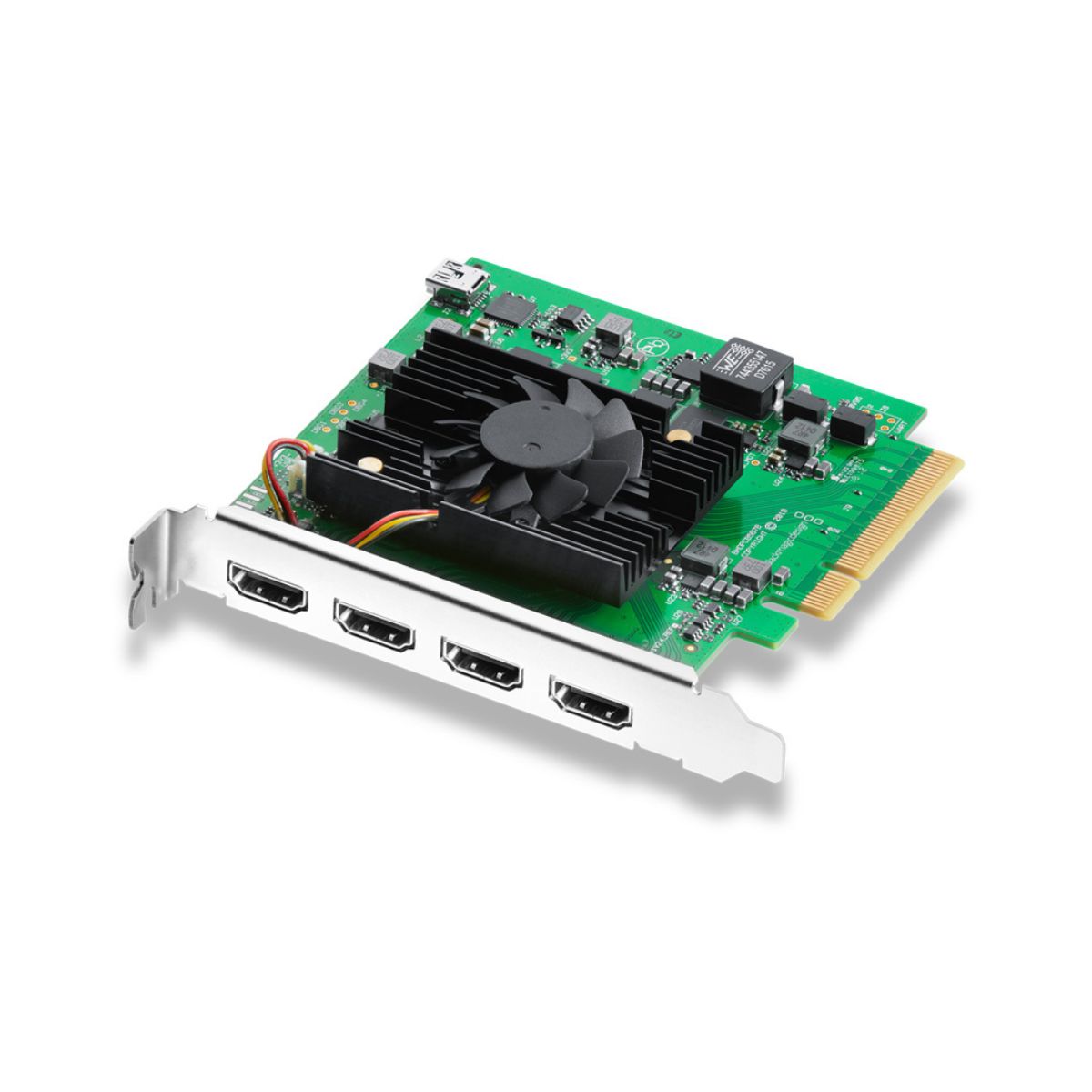

DeckLink Quad HDMI Recorder is a high-performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K, and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real-time computer game capture, streaming, and more!
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
|
Digital Video Interface (DVI) Standards |
640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
|
HDMI Color Precision |
8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8‑bit RGB 4:4:4 in all DVI modes. |
|
Color Space |
REC 601, REC 709, REC 2020 |
|
HDMI Video Sampling |
4:4:4, 4:2:2 and 4:2:0 |
|
HDMI Configuration |
HDMI 2.0b supports Deep Color and HDR. |
|
Multiple Rate Support |
HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. |
|
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |

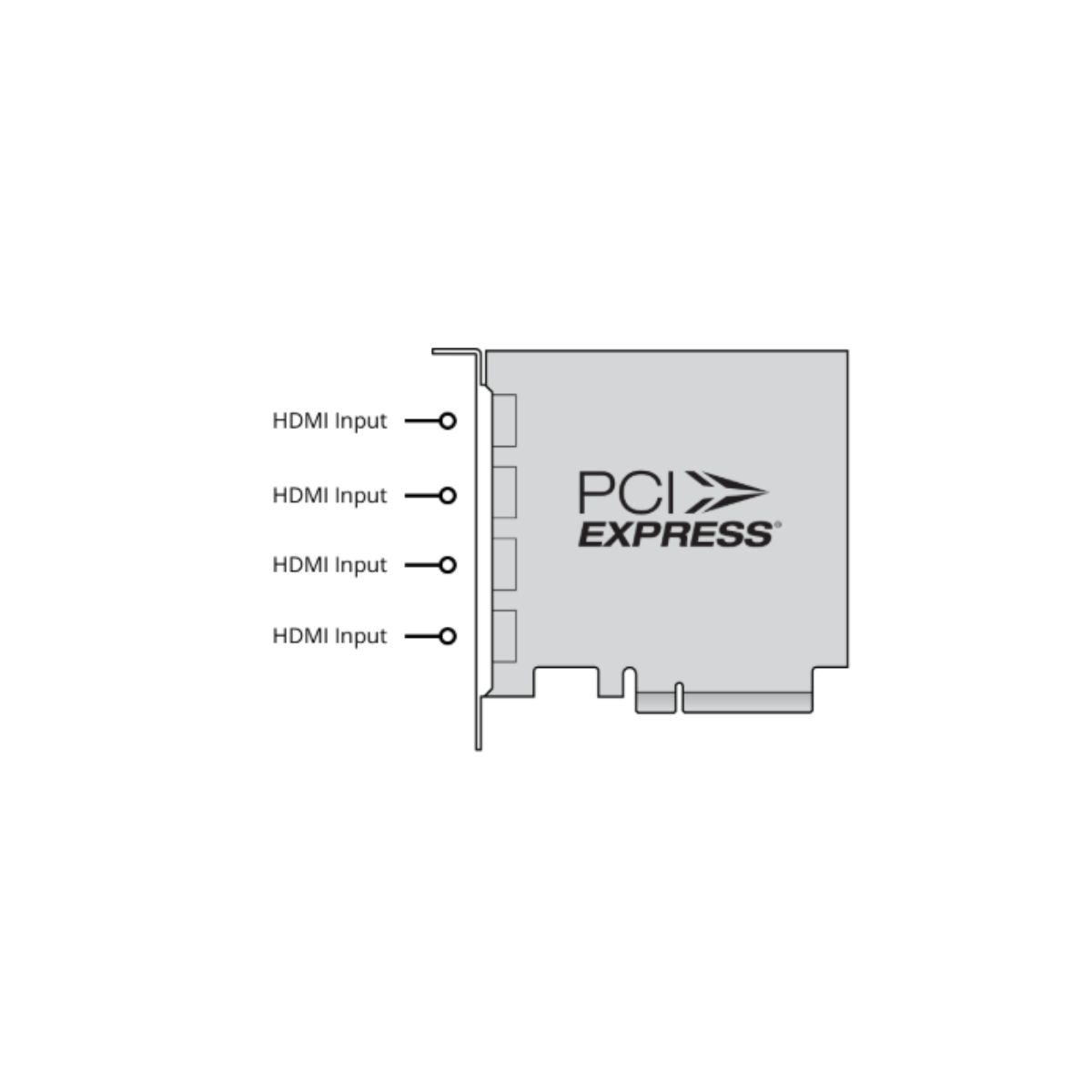

Connections
|
HDMI 2.0b Video Inputs |
4 |
|
HDMI Audio Inputs |
8 Channels embedded in SD/HD/UHD/4K. |
|
Computer Interface |
PCI Express 8-lane generation 3, compatible with 8- and 16-lane PCI Express slots. |
