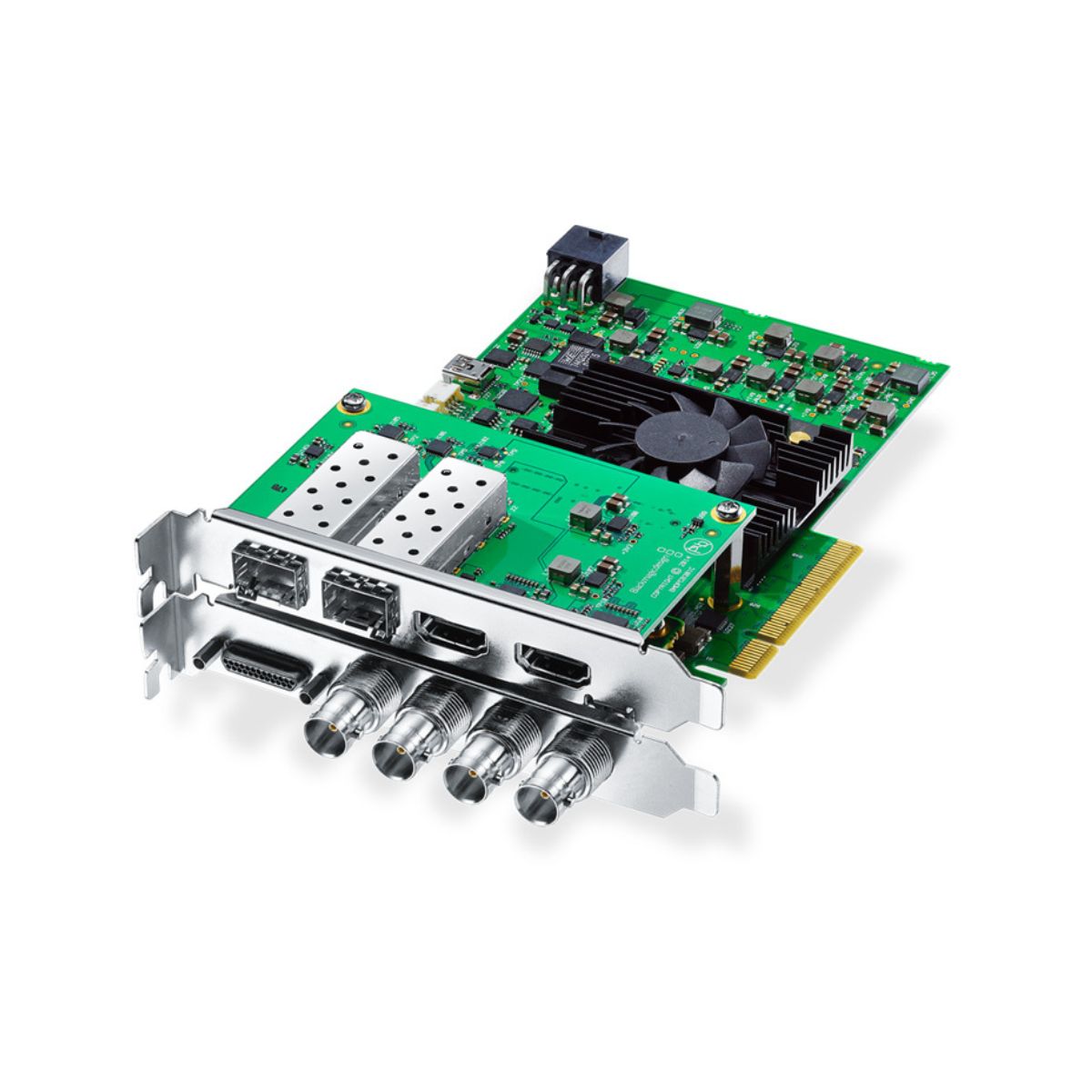

Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G‑SDI! You get dual link multi-rate 12G‑SDI connections that work with SD, HD, and Ultra HD, even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10‑bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down, and cross conversion, plus built-in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!
Processing
|
Ultra HD Down Conversion |
Built-in, high-quality hardware down converter outputs Ultra HD to HD with down-converted signal on SDI outputs C & D and HDMI output when connected to an HD-only TV. |
|
HD to SD Down Conversion |
HD to SD with down-converted signal on SDI output B, Component and Composite NTSC/PAL. SD output selectable between letterbox, anamorphic 16:9 and center cut 4:3. |
|
HD Up Conversion |
Built-in, high-quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. |
|
HD Cross Conversion |
Built-in, high-quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. |
|
Real-Time Effects |
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
|
Colorspace Conversion |
Hardware-based real-time on output. |
|
3D Processing |
Dual stream and frame packed capture and playback. |

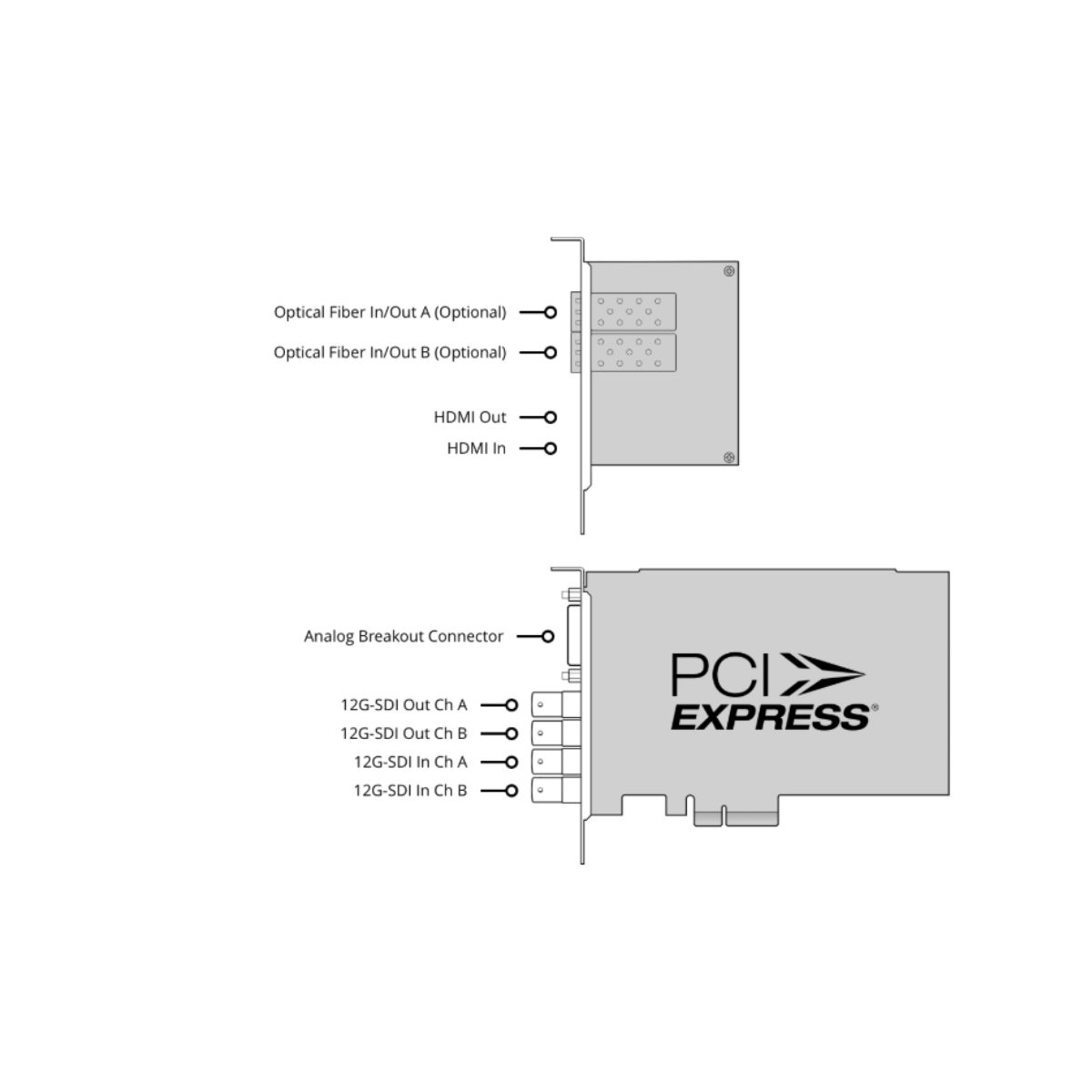

Connections
|
SDI Video Inputs |
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. |
|
SDI Video Outputs |
2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable. |
|
Analog Video Inputs |
1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD. |
|
Analog Video Outputs |
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD |
|
Analog Audio Inputs |
2 Channels of professional balanced analog audio via XLR connectors. |
|
Analog Audio Outputs |
2 Channels of professional balanced analog audio via XLR connectors. |
|
Optical Fiber Inputs/Outputs (Optional) |
2 x 12Gb/s Optical Fiber. |
