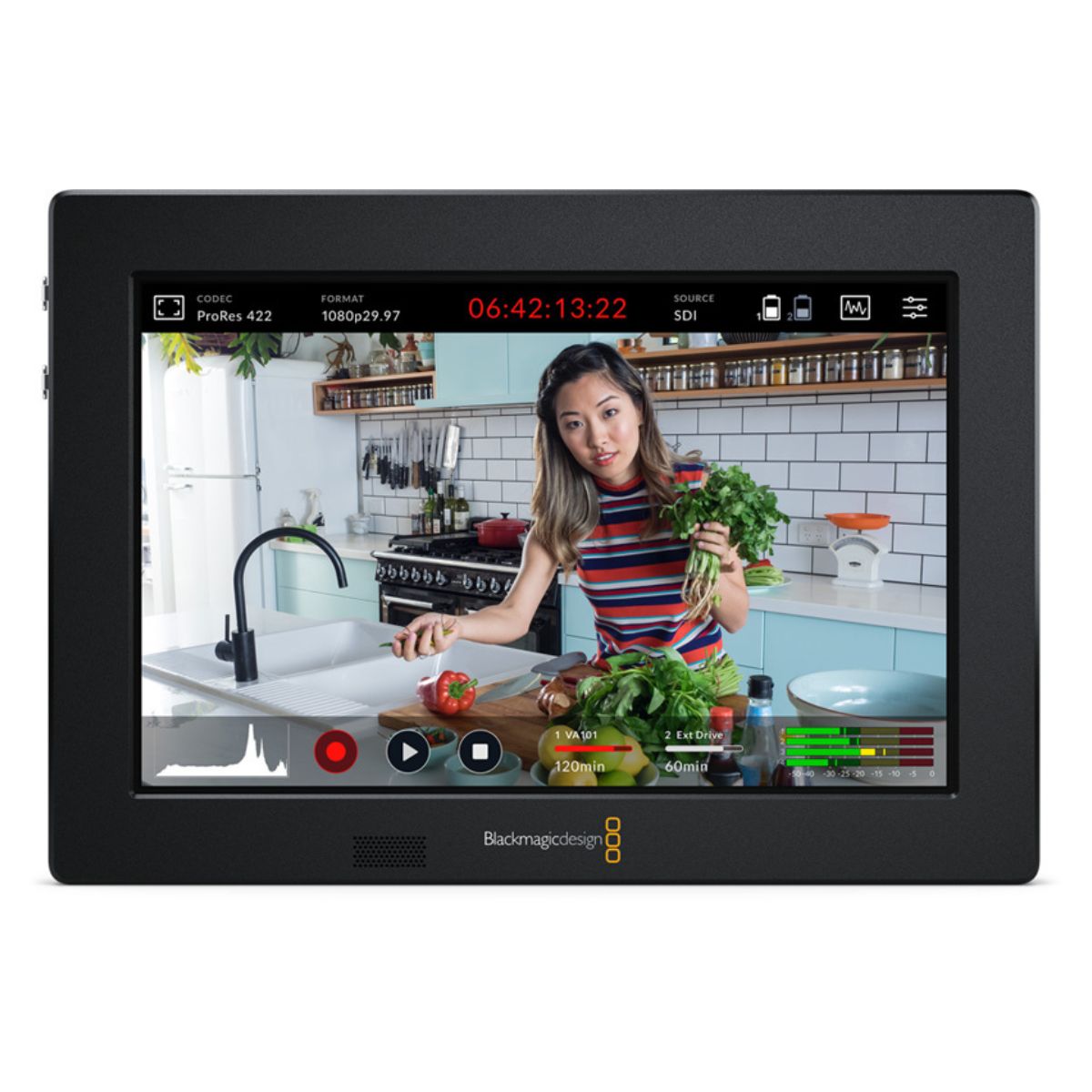

Blackmagic Video Assist 7” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator, and built-in 3D LUTs. The Video Assist 7” 3G supports formats up to 1080p60, and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 7” 3G really is 4 products in one!
SDI Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
|
SDI Metadata Support |
HD RP188 |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
Video Sampling |
4:2:2 YUV |
|
Color Precision |
10-bit |
|
Color Space |
REC 601, REC 709 |
|
Multiple Rate Support |
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G |
|
HDMI Video Inputs |
1 |
|
HDMI Video Outputs |
1 |
|
Analog Audio Inputs |
2 x balanced mini XLR with phantom power |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Built-in Speaker |
Mono |
|
Screen Dimensions |
7 inch 1920 x 1200. |
|
Screen Brightness |
310nits |
|
SDI Audio Inputs |
16 channels embedded via SDI |
|
SDI Audio Outputs |
16 channels embedded via SDI |
|
HDMI Audio Inputs |
8 channels embedded via HDMI |
|
HDMI Audio Outputs |
8 channels embedded via HDMI |
|
Remote Control |
1 x 2.5mm LANC for Record Start and Stop. |
|
SD Interface |
Dual UHS-I SD slots. |
|
Storage Type |
SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. |
|
Computer Interface |
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control. |
