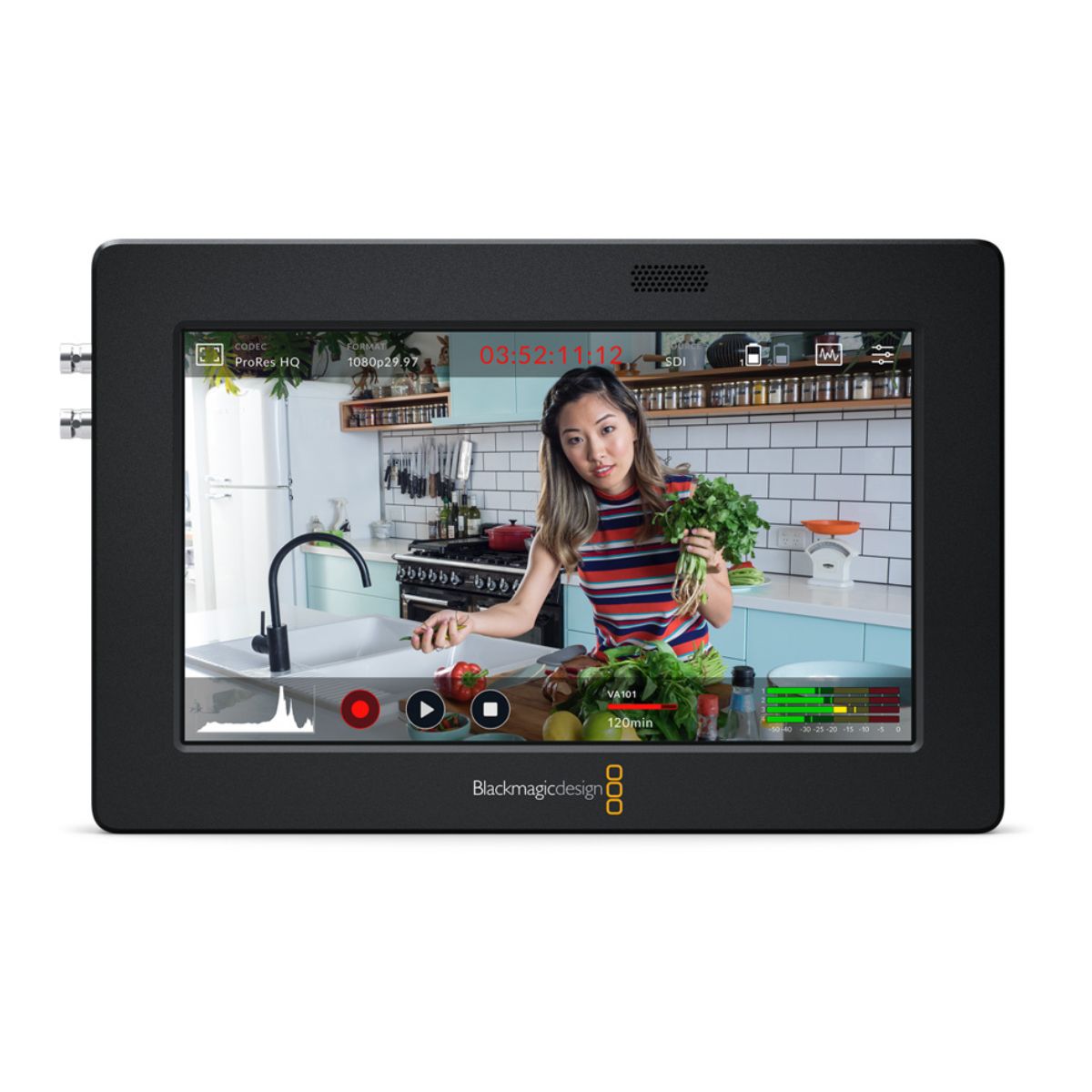

Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator, and built-in 3D LUTs. The Video Assist 5” 3G supports formats up to 1080p60, and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!
HDMI Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
HDMI Color Precision |
10-bit |
|
Copy Protection |
HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Media |
1 x UHS-I SD for HD recording. |
|
Media Type |
SDXC UHS-I and SDHC UHS-I SD cards. |
Control
|
Recorder Control |
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus. |
|
External Control |
SDI and HDMI start/stop, timecode run. |
Connections
|
SDI Video Inputs |
1 x Micro BNC |
|
SDI Video Outputs |
1 x Micro BNC |
|
SDI Rates |
270Mb, 1.5G, 3G |
|
HDMI Video Inputs |
1 |
|
HDMI Video Outputs |
1 |
|
Analog Audio Inputs |
None, embedded audio only. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Built-in Speaker |
Mono |
|
Screen Dimensions |
5 inch 1920 x 1080. |
|
Screen Brightness |
300nits |
|
SDI Audio Inputs |
16 channels embedded via SDI |
|
SDI Audio Outputs |
16 channels embedded via SDI |
|
HDMI Audio Inputs |
8 channels embedded via HDMI |
|
HDMI Audio Outputs |
8 channels embedded via HDMI |
|
Remote Control |
None |
|
SD Interface |
1 x UHS-I SD slot. |
|
Storage Type |
SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. |
|
Computer Interface |
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control. |
