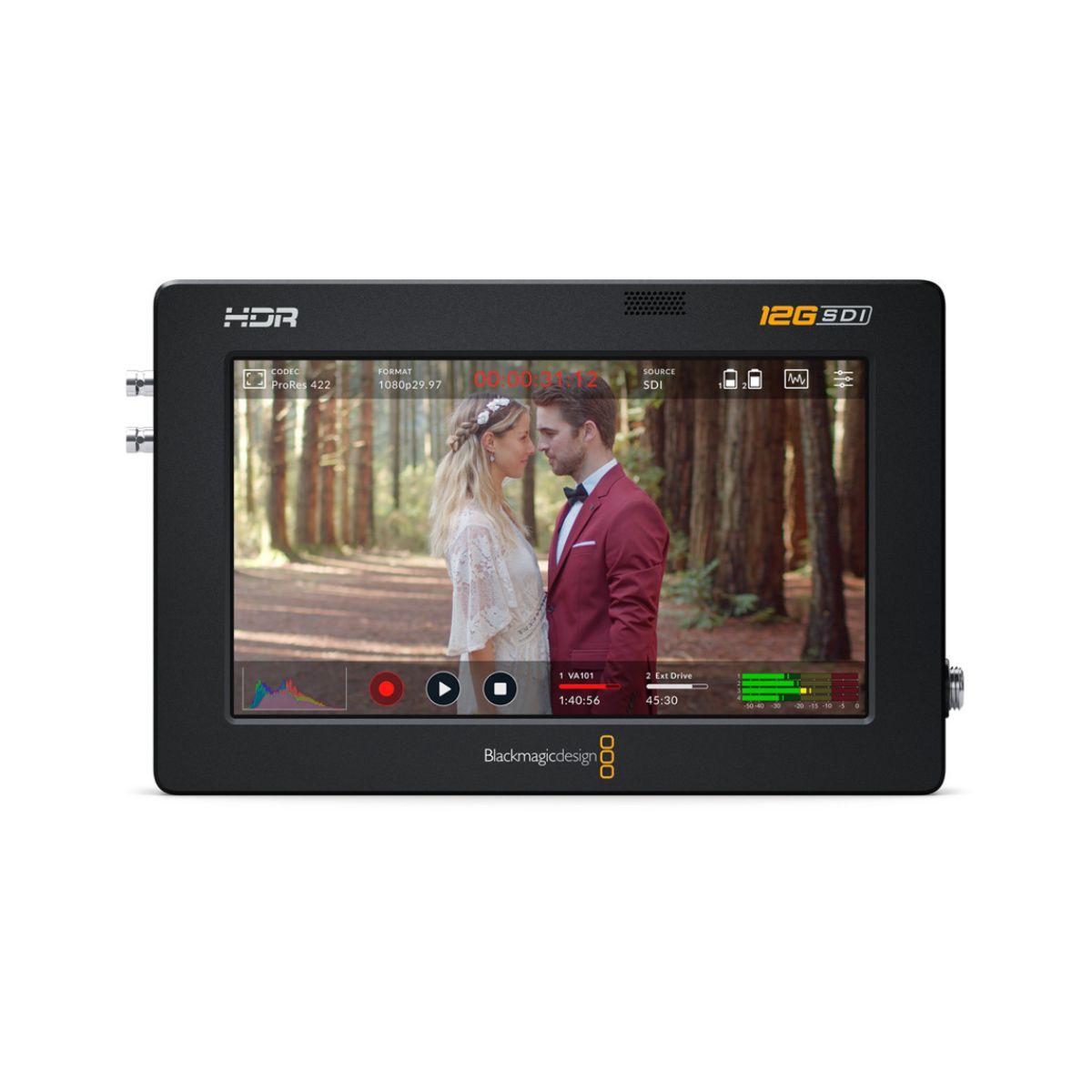

Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure, and frame shots. The built-in SD card recorder saves files in broadcast-quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
HDMI Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
|
HDMI Color Precision |
10-bit |
|
HDR Support |
HDR10, Hybrid Log Gamma |
|
Copy Protection |
HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
|
Media |
1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording. |
|
Media Type |
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. |
Control
|
Recorder Control |
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus. |
|
External Control |
SDI and HDMI start/stop and timecode run. |
Connections
|
SDI Video Inputs |
1 x Micro BNC |
|
SDI Video Outputs |
1 x Micro BNC |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
HDMI 2.0a Video Inputs |
1 |
|
HDMI 2.0a Video Outputs |
1 |
|
Analog Audio Inputs |
None, embedded audio only. |
|
Analog Audio Outputs |
1 x 3.5 mm headphone jack. |
|
Built-in Speaker |
Mono |
|
Screen Dimensions |
5 inch 1920 x 1080. |
|
Screen Brightness |
2500nits |
|
Screen Color |
P3 wide color gamut |
|
SDI Audio Inputs |
16 channels embedded via 12G-SDI |
|
SDI Audio Outputs |
16 channels embedded via 12G-SDI |
|
HDMI Audio Inputs |
8 channels embedded via HDMI 2.0a |
|
HDMI Audio Outputs |
8 channels embedded via HDMI 2.0a |
|
Remote Control |
None |
|
SD Interface |
1 x UHS-II SD slot. |
|
Storage Type |
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. |
|
Computer Interface |
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control. |
