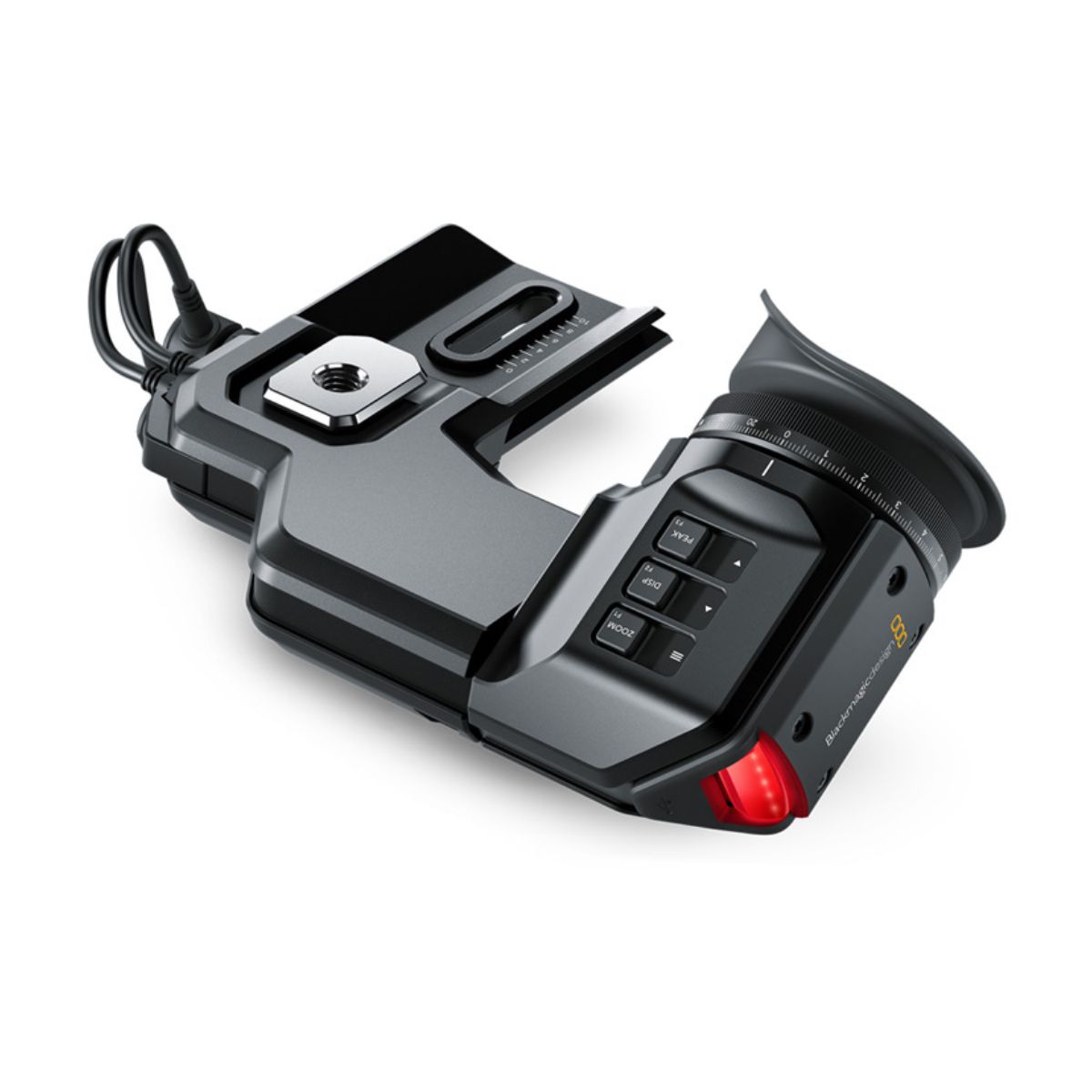

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high-quality viewfinder with 1080HD resolution display, true precision glass optics, built-in tally light, and built-in menus, overlays, and even a digital focus chart!
|
Display Resolution |
Full 1920 x 1080. |
|
Frame Rates |
Up to 60fps |
|
Display Type |
OLED |
|
Display Pixels |
6.22 Million Pixels |
|
Color Precision |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084. |
|
Focus |
4 Element diopter. |
|
Diopter Range |
-4 to +3 |
|
Controls |
Buttons for settings, short cut features and navigating menus. |
|
Overlays |
Built in overlay display processor and top mounted buttons. |
|
Eyepiece |
Can be tilted vertically and extended for left or right eye use. |
|
Tally |
LED tally light. |
|
Mounting Options |
Camera mount with adjustment. |
|
Metadata Support |
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino. |
Connections
|
SDI Video Inputs |
1 x 3G-SDI BNC. |
|
Power Input |
1 x 4 pin XLR 12V. |
|
Computer Interface |
USB 2.0 Mini-B port for software updates. |
