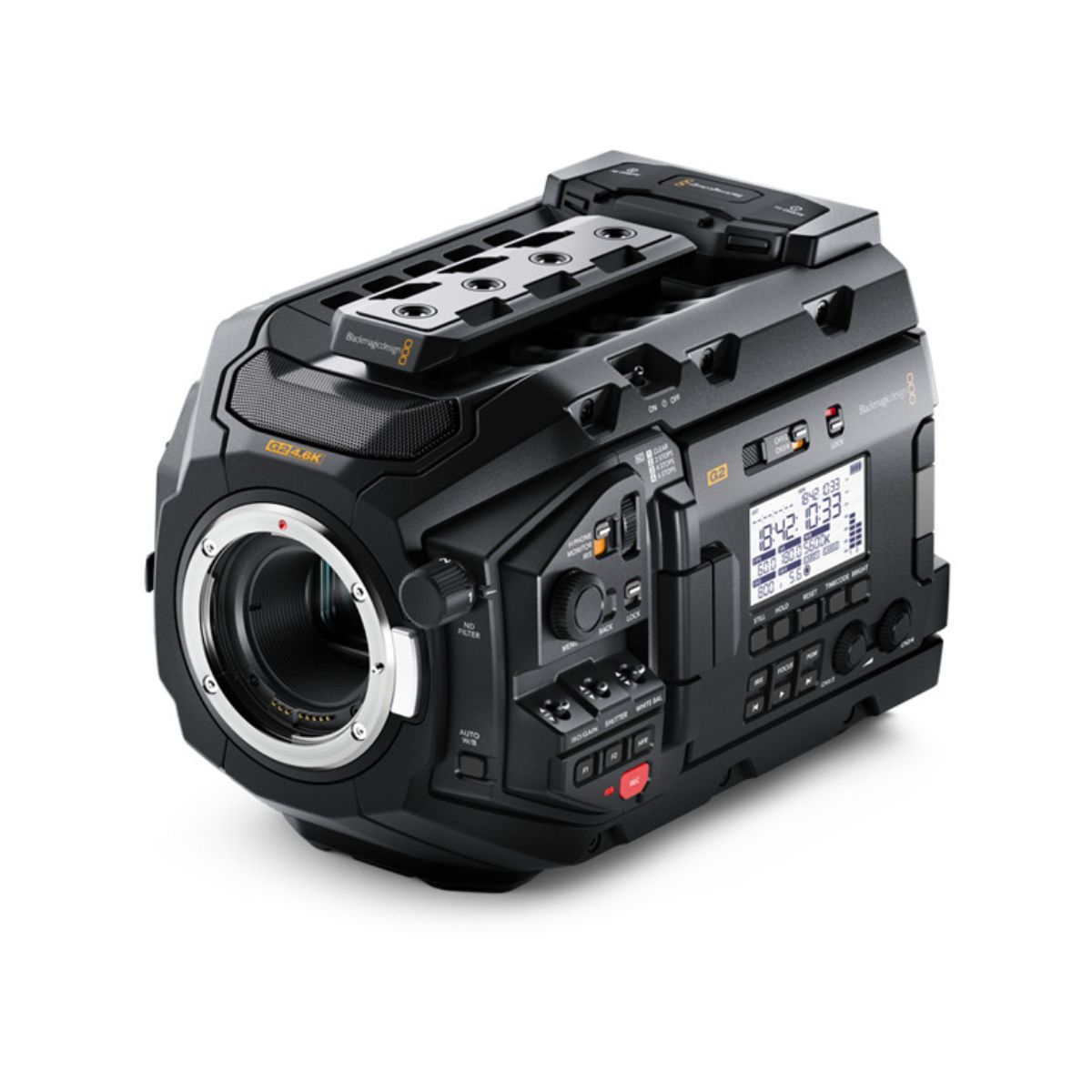

URSA Mini Pro 4.6K G2 is a next-generation digital film camera with updated electronics and a high-performance 4.6K HDR image sensor for shooting at up to 300 frames per second. You get a Super 35mm 4.6K sensor with 15 stops of dynamic range, built-in optical ND filters, an interchangeable EF lens mount that can be swapped for optional PL, B4 or F mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD cards, and an innovative USB-C expansion port for recording directly to external disks. In addition, URSA Mini Pro 4.6K G2 features a massive set of external broadcast-style controls, backlit status display, foldout touchscreen monitor, and more!
Camera Features
|
Effective Sensor Size |
25.34mm x 14.25mm (Super35) |
|
Lens Mount |
EF mount included. Interchangeable with optional PL, B4, and F lens mounts. |
|
Lens Control |
Electronic control via EF mount pins or 12-pin broadcast connector for compatible lenses |
|
Dynamic Range |
15 Stops. |
|
Shooting Resolutions |
4608 x 2592, 4608 x 1920 (4.6K 2.40:1) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K DCI) 3840 x 2160 (Ultra HD) 3072 x 2560 (3K Anamorphic) 2048 x 1152 (2K 16:9) 2048 x 1080 (2K DCI) 1920 x 1080 |
|
Frame Rates |
The maximum sensor frame rate is dependent on the resolution and the codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps are supported. |
|
Screen Dimensions |
4 inch |
|
Shooting Resolutions |
4608 x 2592, 4608 x 1920 (4.6K 2.40:1) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K DCI) 3840 x 2160 (Ultra HD) 3072 x 2560 (3K Anamorphic) 2048 x 1152 (2K 16:9) 2048 x 1080 (2K DCI) 1920 x 1080 |
|
Frame Rates |
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. |
|
High Speed Frame Rates |
Blackmagic RAW 8:1 4.6K Full - Up to 120 fps |
|
ProRes 422 HQ |
4.6K Full - Up to 80 fps UHD Windowed - Up to 120 fps HD Windowed - Up to 240 fps |
|
Built in ND Filters |
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters. |
|
Focus |
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. |
|
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. |
|
Metadata Support |
Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take, and special notes. |
|
Controls |
Touchscreen menus on 4-inch screen. Push buttons for other controls. 2 assignable shortcut keys. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Control
External Control
Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.
Connections
|
Total Video Inputs |
1 x SDI |
|
Total Video Outputs |
1 x SDI, 1 x SDI Monitoring. |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack, supports iPhone microphone for talkback. |
|
Reference Inputs |
Tri-Sync/Black Burst/Timecode. |
|
Remote Control |
2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. |
|
Computer Interface |
USB Type-C 3.1 Gen 1 for external drive recording and software updates. |
