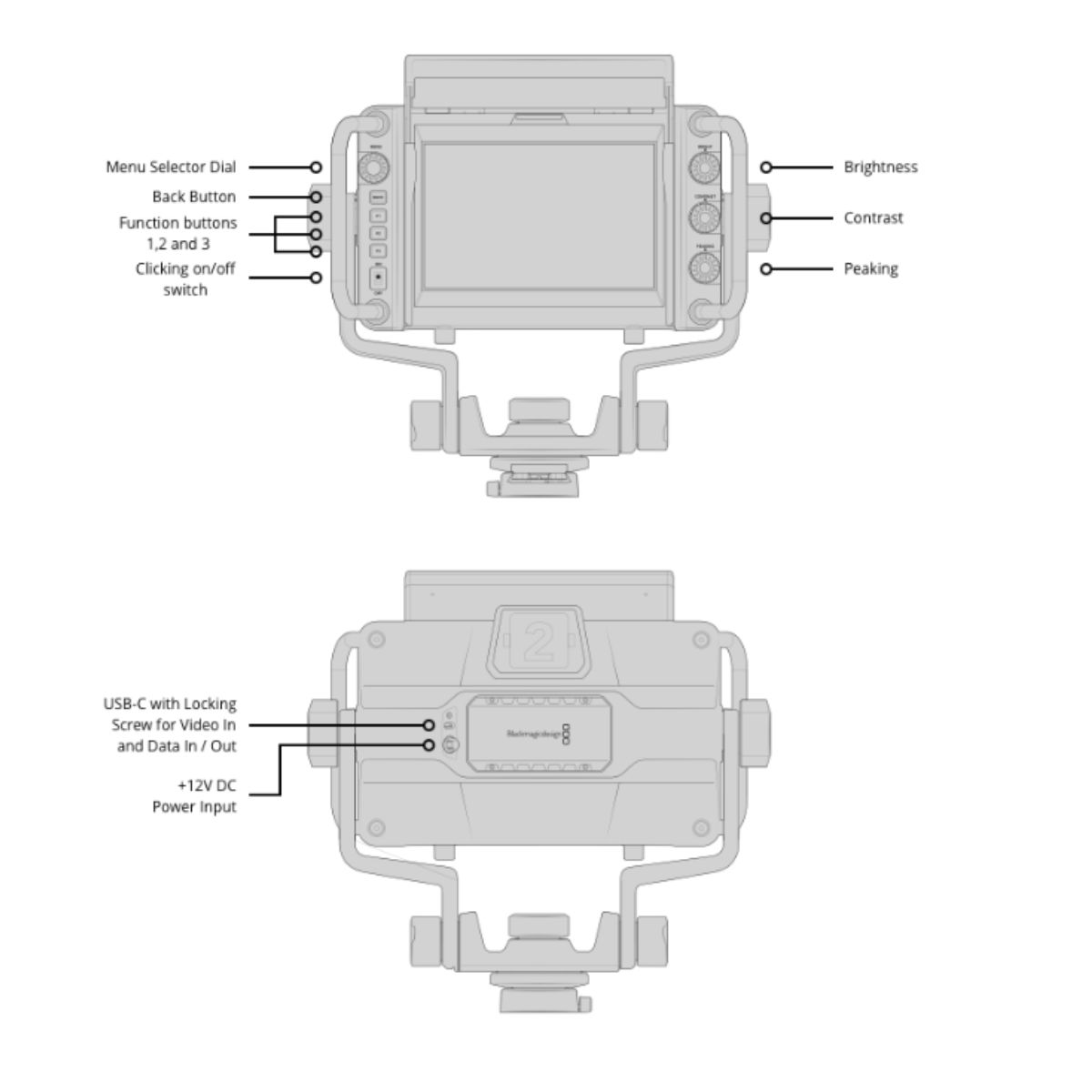

Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high-brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast, and focus peaking. On-screen overlays include focus peaking, frame guides, histograms, and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.
|
Display Size |
7 inch. |
|
Display Resolution |
1920px x 1200px. |
|
Display Type |
LCD capacitive touchscreen. |
|
Display Brightness |
2000 nits. |
|
Frame Rates |
Up to 60fps. |
|
Handles |
Built-in grab handles for positioning the monitor independently from the camera. |
|
Position Adjustment Options |
Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan, and tilt adjustments. |
|
Sunshade |
Detachable and foldable sunshade |
|
Mounting Options |
Quick-release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body. |
|
Tally |
Large talent-facing LED tally light with customizable perspex camera numbers. |
|
Metadata Support |
Viewfinder supports all camera metadata and full Blackmagic OS camera control. |
Connections
|
USB-C with Locking Connector |
Video, power, metadata, camera control, and software updates. |
|
Screen Dimensions |
7" 1920 x 1200 resolution. |
|
Screen Type |
7" high-brightness TFT LCD |
|
Screen Brightness |
2000 nits |
|
Power |
5.5mm locking barrel socket supports +12V to +17V DC power. |
