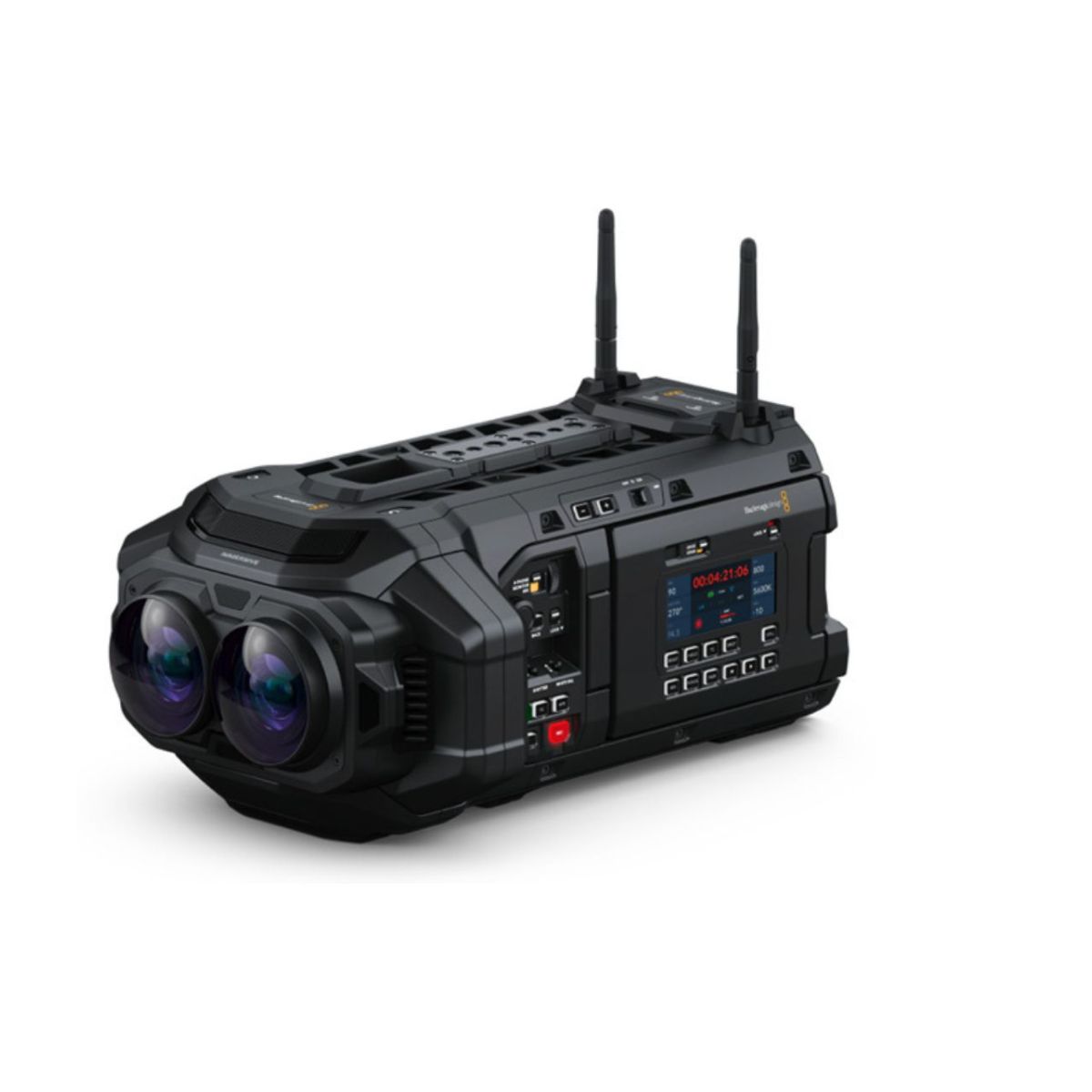

Blackmagic URSA Cine Immersive is the world’s first camera system for capturing Apple Immersive Video for Apple Vision Pro. The dual 8K sensors deliver 8160 x 7200 resolution per eye with pixel-level synchronization and an incredible 16 stops of dynamic range. The custom lens system is designed exclusively for URSA Cine Immersive’s large-format imaging sensor. It also features high-speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud. Blackmagic URSA Cine Immersive Body model is ideal when you have existing accessories and media storage. It excludes recording media, top handle, baseplate, and battery plate.
Camera Features
|
Sensors |
2 x 8K sensors. Left eye and right eye. |
|
Effective Sensor Size |
23.66 mm x 20.88 mm each. |
|
Pixel Pitch |
2.9 microns. |
|
Lens |
Fixed focal length, 180°+ field of view, stereo lens pair. |
|
Dynamic Range |
16 Stops. |
|
Shooting Formats |
8160 x 7200 x 2 (stereo immersive) |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50,59.94, 60 and 90 fps supported. |
|
High Speed Frame Rates |
8K stereo immersive up to 90 fps. |
|
Built in ND Filters |
Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
|
Iris Control |
Fixed iris. |
|
Screens |
2 x Monitoring Screens. 1 x Camera Status Screen. |
|
Monitoring Screen Dimensions |
5 inch. |
|
Monitoring Screen Resolution |
1920px x 1080px. |
|
Monitoring Screen Brightness |
1500 nits. |
|
Monitoring Screen Type |
LCD capacitive touchscreen. |
|
Monitoring Options |
Left Eye, Right Eye, Punch In or Side by Side. |
|
Metadata Support |
Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take, and special notes. |
|
Controls |
Touchscreen menus on 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
Media Format
Blackmagic
Connections
|
Total Video Outputs |
2 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
|
USB-C Monitor Outputs |
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
|
Computer Interface |
2 x USB-C side expansion ports for camera accessories. Software updates using side USB-C closer to rear. |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
