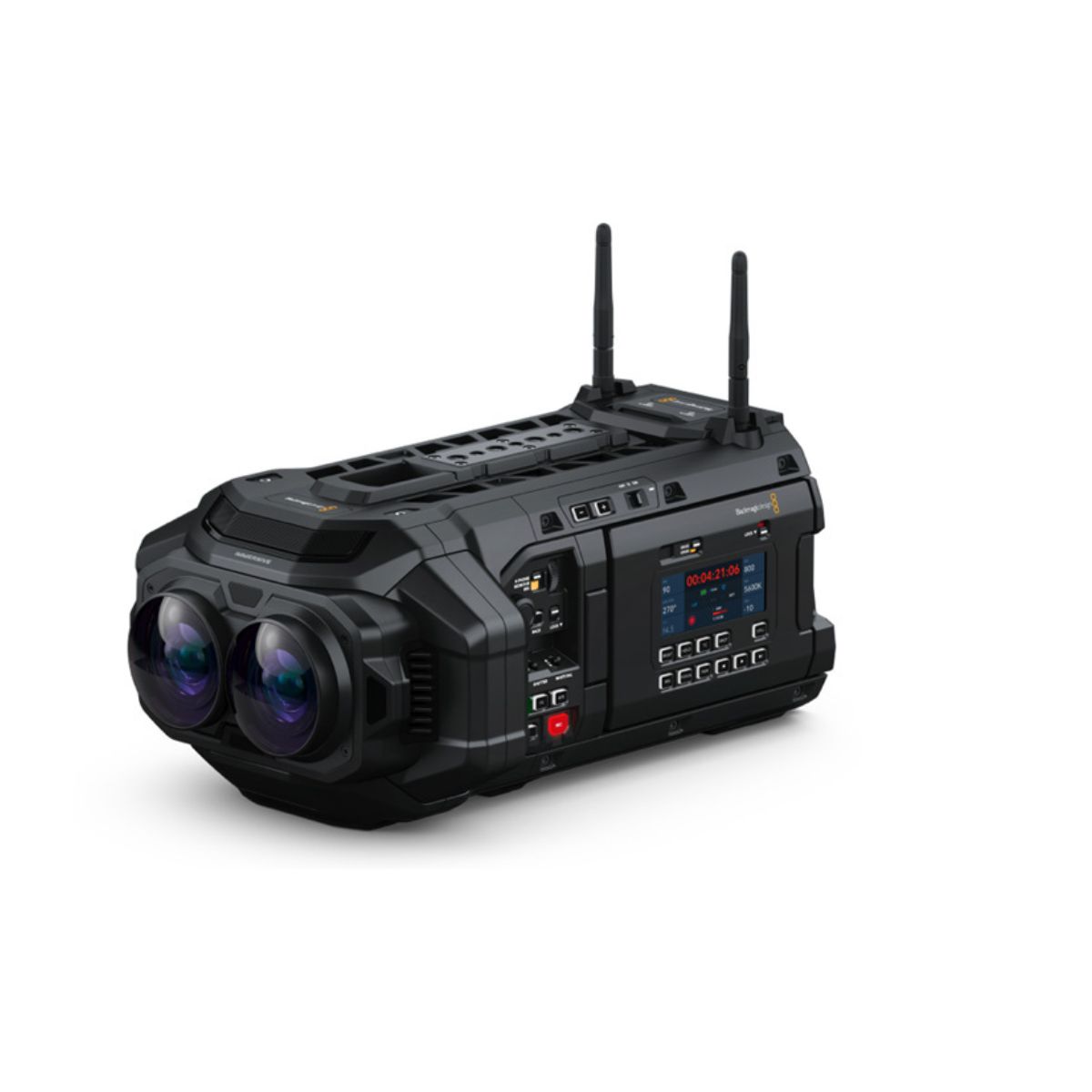

The Blackmagic URSA Cine Immersive 100G is the world's first camera for live immersive production, featuring faster 100G Ethernet for SMPTE-2110 live video output. This versatile camera handles shooting, post-production, and live production equally well. It includes dual 8Kx8K RGBW sensors running at 90fps with an incredible 16 stops of dynamic range, delivering stunning immersive content with the quality that both live broadcast and high-end digital film workflows demand! Blackmagic URSA Cine Immersive 100G Body model is ideal when you have existing accessories and media storage. It excludes recording media, top handle, baseplate, and battery plate.
Camera Features
|
Sensors |
2 x 8K sensors. Left eye and right eye. |
|
Pixel Pitch |
2.9 microns. |
|
Lens |
Fixed focal length, 180°+ field of view, stereo lens pair. |
|
Dynamic Range |
16 Stops. |
|
Shooting Formats |
8K x 8K stereo immersive. |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 and 90 fps supported. |
|
High Speed Frame Rates |
8K stereo immersive up to 90 fps. |
|
Built-in ND Filters |
Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
|
Iris Control |
Fixed iris. |
|
Screens |
2 x Monitoring Screens. 1 x Camera Status Screen. |
|
Monitoring Screen Dimensions |
5 inches. |
|
Monitoring Screen Resolution |
1920px x 1080px. |
|
Monitoring Screen Brightness |
1500 nits. |
|
Monitoring Screen Type |
LCD capacitive touchscreen. |
|
Monitoring Options |
Left Eye, Right Eye, Punch In, or Side by Side. |
|
Metadata Support |
Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take, and special notes. |
|
Controls |
Touchscreen menus on 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
Media Format
Blackmagic
Connections
|
Total Video Outputs |
3 |
|
SDI Video Outputs |
2 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
2110 IP Video Outputs |
1 x 100G QSFP28 connection. |
|
2110 IP Video Inputs |
1 x 100G QSFP28 connection. |
|
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. PTP clock and timecode over 2110 IP network. |
|
USB-C Monitor Outputs |
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
|
Computer Interface |
2 x USB-C side expansion ports for camera accessories. Software updates using the side USB-C closest to the rear. |
|
Ethernet |
1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
|
Power |
1 x 8-pin Lemo compatible +24V DC power input. |
