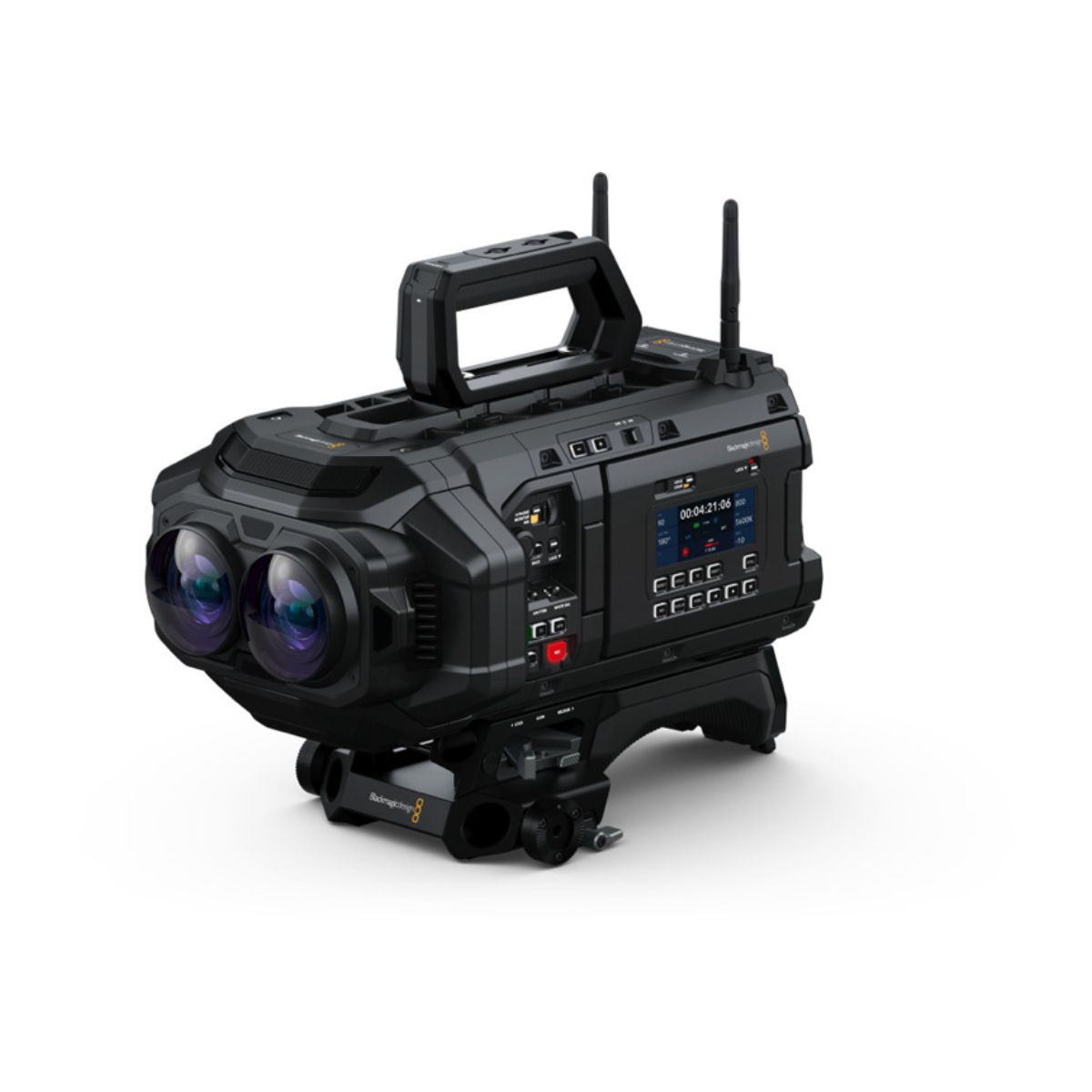

Blackmagic URSA Cine Immersive is the world’s first camera system for capturing Apple Immersive Video for Apple Vision Pro. The dual 8K sensors deliver 8160 x 7200 resolution per eye with pixel-level synchronization and an incredible 16 stops of dynamic range. The custom lens system is designed exclusively for URSA Cine Immersive’s large-format imaging sensor. Blackmagic URSA Cine Immersive comes with a massive 8TB of removable high-performance media storage built in and also includes high-speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud!
Camera Features
|
Sensors |
2 x 8K sensors. Left eye and right eye. |
|
Effective Sensor Size |
23.66 mm x 20.88 mm each. |
|
Pixel Pitch |
2.9 microns. |
|
Lens |
Fixed focal length, 180°+ field of view,stereo lens pair. |
|
Dynamic Range |
16 Stops. |
|
Shooting Formats |
8160 x 7200 x 2 (stereo immersive) |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50,59.94, 60 and 90 fps supported. |
|
High Speed Frame Rates |
8K stereo immersive up to 90 fps. |
|
Built in ND Filters |
Button activated ND filters with clear, 2‑stop, 4‑stop, 6‑stop and 8‑stop IR ND filters. |
|
Iris Control |
Fixed iris. |
|
Screens |
2 x Monitoring Screens. 1 x Camera Status Screen. |
|
Monitoring Screen Dimensions |
5 inch. |
|
Monitoring Screen Resolution |
1920px x 1080px. |
|
Monitoring Screen Brightness |
1500 nits. |
|
Monitoring Screen Type |
LCD capacitive touchscreen. |
|
Monitoring Options |
Left Eye, Right Eye, Punch In or Side by Side. |
|
Metadata Support |
Discrete left and right eye optical calibration metadata. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
|
Controls |
Touchscreen menus on 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 3 assignable shortcut keys on PYXIS Monitor. Fischer connector for remote run/stop. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Connections
|
Total Video Outputs |
2 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
|
USB-C Monitor Outputs |
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
|
Computer Interface |
2 x USB-C side expansion ports for camera accessories. |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
