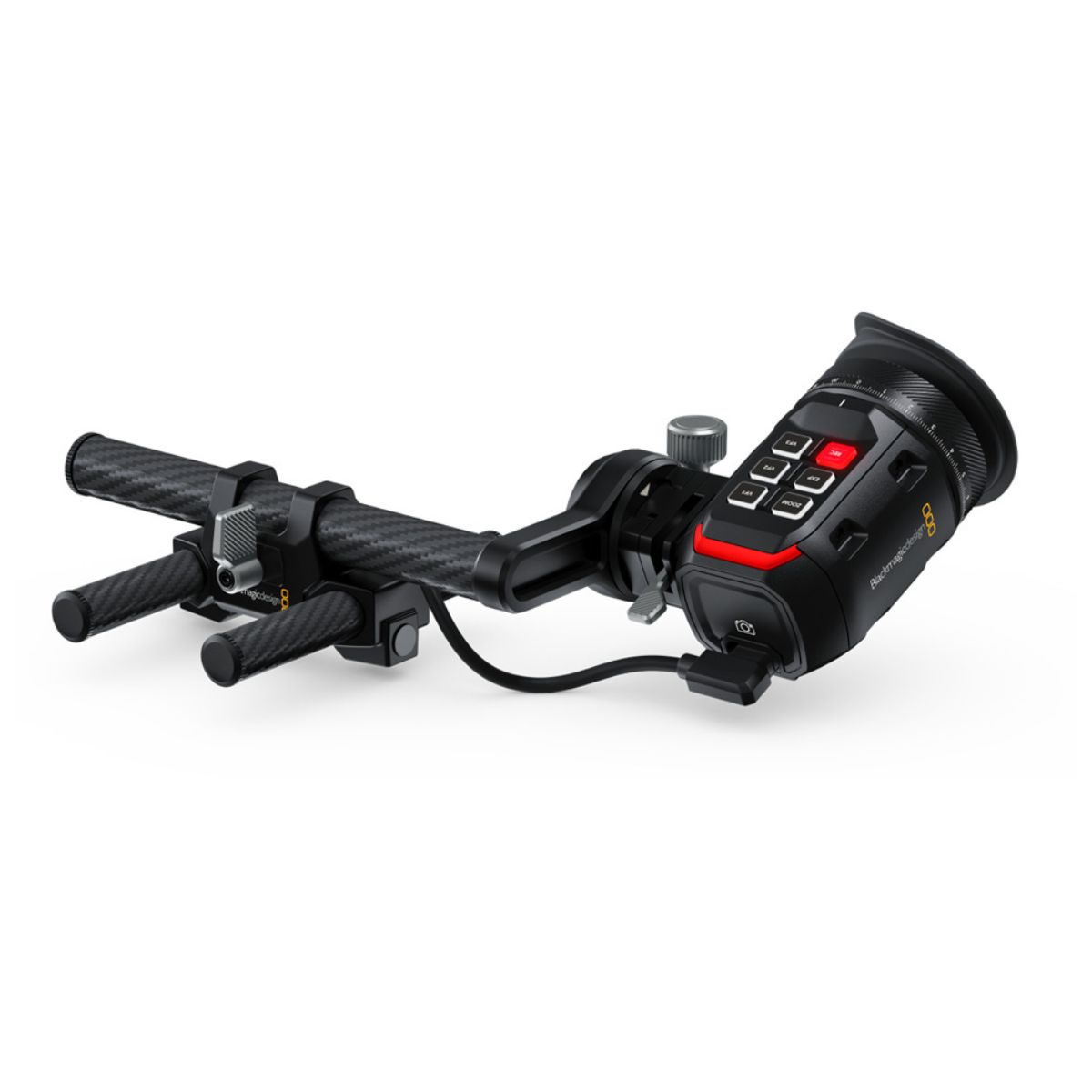

Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high-quality 1920 x 1080 color OLED display with 4-element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons, and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power, and camera control, and can be positioned in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.
|
Display Resolution |
Full 1920 x 1080. 6.22 Million dots |
|
Display Type |
OLED |
|
Frame Rates |
Up to 60fps |
|
Focus |
4 Element diopter. |
|
Diopter Range |
-5 to +5 |
|
Controls |
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons. |
|
Overlays |
Built in overlay display processor and top mounted buttons. |
|
Eyepiece |
Can be tilted vertically and extended for left or right eye use. |
|
Tally |
LED tally light. |
|
Mounting Options |
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports. |
|
Metadata Support |
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. |
Connections
|
Video Inputs |
USB-C |
|
Power Input |
USB-C |
|
Data Input / Output |
USB-C |
|
Computer Interface |
USB-C for software updates. |
