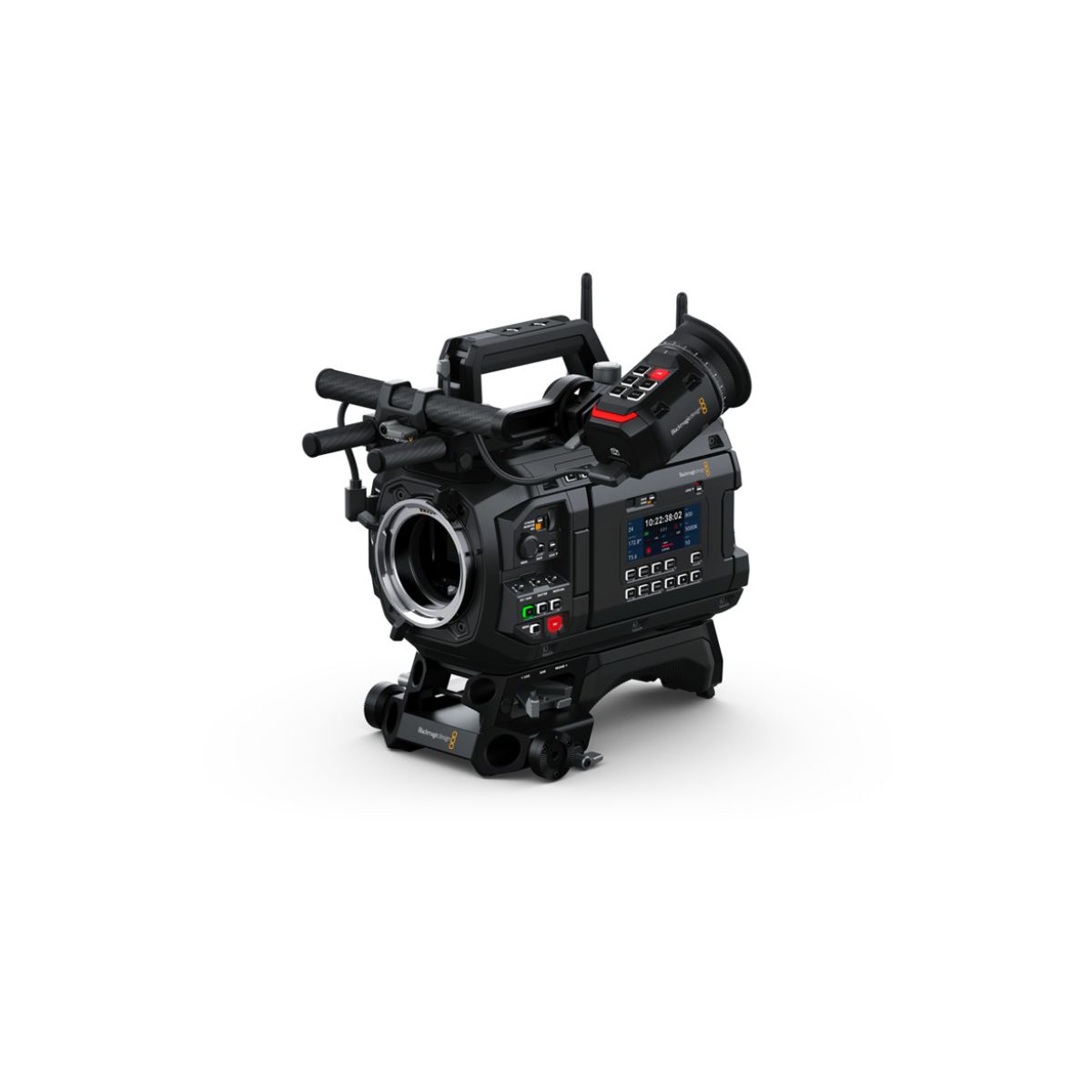

Blackmagic URSA Cine 17K 65 + EVF

Blackmagic URSA Cine 17K 65 is a revolution in digital film with an extremely large format 17520 x 8040 65mm RGBW sensor with larger photo-sites for 16 stops of dynamic range. This revolutionary model also includes an interchangeable lens mounts, a dedicated assist station with a second 5″ HDR LCD touchscreen and industry standard Lemo and Fischer connections. Blackmagic URSA Cine 17K 65 comes with a massive 8TB of removable high-performance media storage built in and also includes high-speed 10G Ethernet, WiFi for fast media upload and syncing to Blackmagic Cloud and URSA Cine EVF!

Contact to Seller

Camera Features

Effective Sensor Size 50.81 mm x 23.32 mm (65mm Format)
Pixel Pitch 2.9 microns
Lens Mount PL mount. Interchangeable with URSA Cine Mount LPL included
Lens Control Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.
Dynamic Range 16 Stops
Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps are supported. The maximum sensor frame rate is dependent on the resolution selected.
High Speed Frame Rates 17K 2.2:1 open gate up to 60 fps 12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps
Built-in ND Filters None

Audio

Microphone

 Integrated stereo microphone.

Built in Speaker

 1 x mono speaker.

Standards

SD Video Standards

 None

HD Video Standards

 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

 SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1

SDI Audio Sampling

 48 kHz and 24 bit

Control

External Control

Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.

Download Product catalog

Connections

Total Video Outputs

 2

SDI Rates

 1.5G, 3G, 6G, 12G.

Analog Audio Inputs

 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

 1 x 3.5mm headphone jack

Reference Inputs

 Tri-Sync/Black Burst and Timecode.

Viewfinder

 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.

USB-C Monitor Outputs

 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.

URSA Cine EVF

 1 x USB-C with power, data, video and locking connector.

Accessories

1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.

1 x 3-pin Fischer ‘RS’ for power out and run/stop.

Computer Interface

2 x USB-C side expansion ports for camera accessories.

Software updates using side USB-C closer to rear.

Ethernet

 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
