Blackmagic URSA Cine 17K 65

Blackmagic URSA Cine is a revolutionary digital film camera platform that introduces new advanced digital film technologies combined with total integration into the post production workflow. That means it's the first digital film camera platform with fast high capability storage built in, plus high speed networking for on set media sync. Blackmagic URSA Cine also introduces a new large format RGBW image sensors with larger photo-sites for incredible dynamic range. You can also swap between PL, LPL, EF and Hasselblad lens mounts. There's even WiFi with SRT streaming for remote client viewing. Plus the industry standard Lemo and Fischer connections make it perfect for high end cinema production.

Contact to Seller

Camera Features

Effective Sensor Size

50.81 mm x 23.32 mm (65mm Format)

Pixel Pitch

2.9 microns

Lens Mount

 PL mount. Interchangeable with URSA Cine Mount LPL included.

Lens Control

Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses.

Dynamic Range

16 Stops

Shooting Formats

17,520 x 8040 (17K 2.2:1 open gate)
16,128 x 8040 (17K 2:1)
15,360 x 8040 (17K 17:9)
14,304 x 8040 (17K 16:9)
17,520 x 7296 (17K 2.4:1)

12,288 x 8040 (12K 3:2)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)

11,680 x 5360 (8K 2.2:1 open gate)
10,752 x 5360 (8K 2:1 full height)
8192 x 5360 (8K 3:2)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)

5840 x 2680 (4K 2.2:1 open gate)
5376 x 2680 (4K 2:1 full height)
4096 x 2680 (4K 3:2)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)

Frame Rates

 Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.

High Speed Frame Rates

17K 2.2:1 open gate up to 60 fps

12K 2.4:1 up to 90fps

8K 2.2:1 open gate up to 100 fps

8K 2.4:1 up to 170 fps

Built in ND Filters

 None

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

 Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screens

2 x Monitoring Screens

1 x Camera Status Screen

Monitoring Screen Dimensions

5 inch.

Monitoring Screen Resolution

1920px x 1080px

Monitoring Screen Type

LCD capacitive touchscreen

Controls

Touchscreen menus on 5-inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Media

Media

1 x Blackmagic Media Module.

Media Format

Blackmagic



Download Product catalog

Connections

Total Video Outputs

2

SDI Rates

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack

Reference Inputs

Tri-Sync/Black Burst and Timecode.

Viewfinder

1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.

USB-C Monitor Outputs

2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.

Accessories

1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.

1 x 3-pin Fischer ‘RS’ for power out and run/stop.

Computer Interface

2 x USB-C side expansion ports for camera accessories.

Software updates using side USB-C closer to rear.

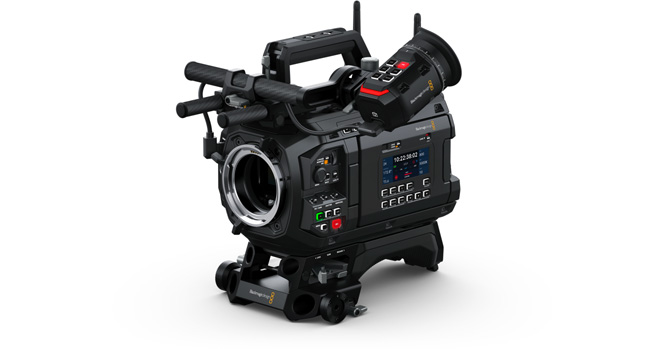

Blackmagic URSA Cine 17K 65 professional cinema camera featuring high-resolution 17K sensor and EVF
